TIE-R

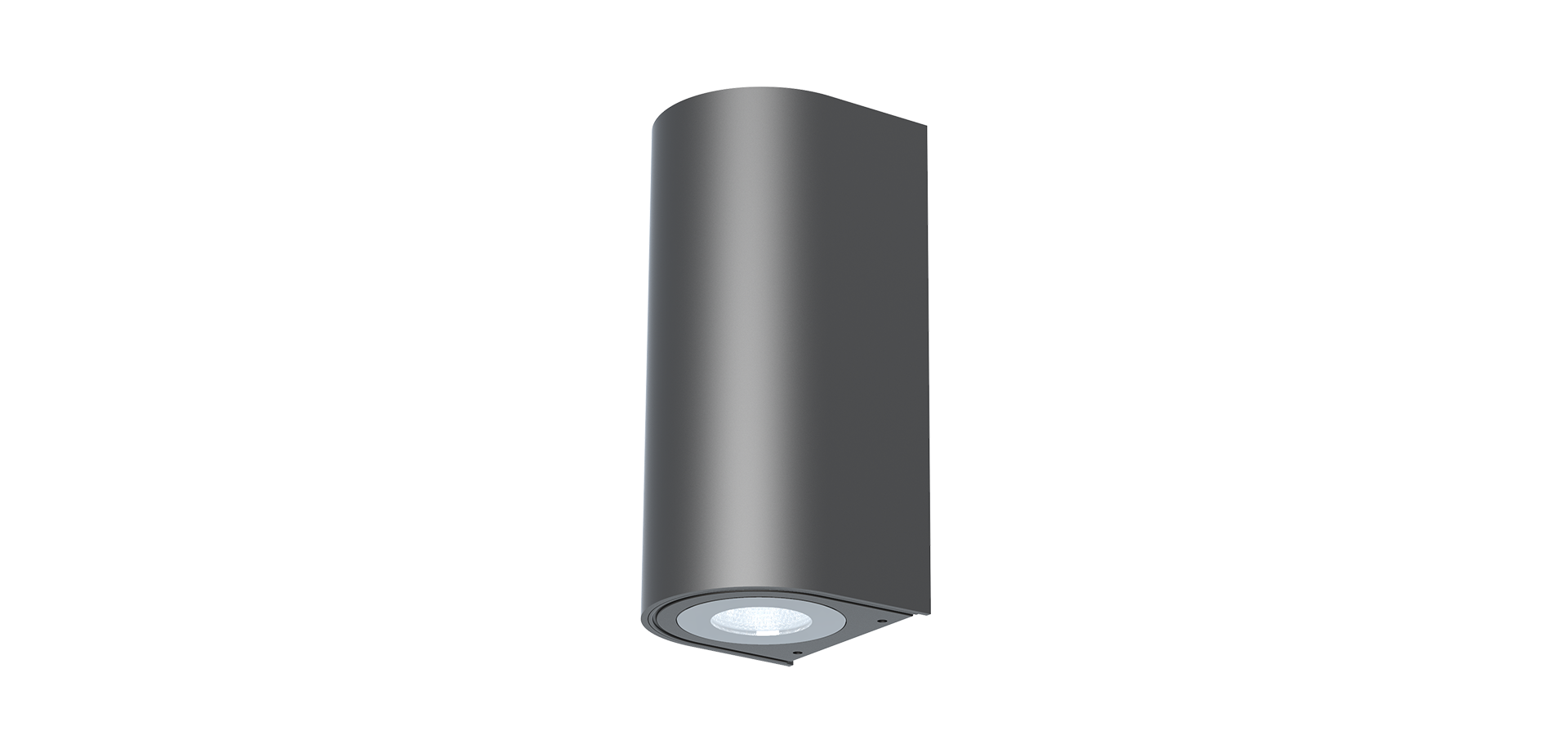

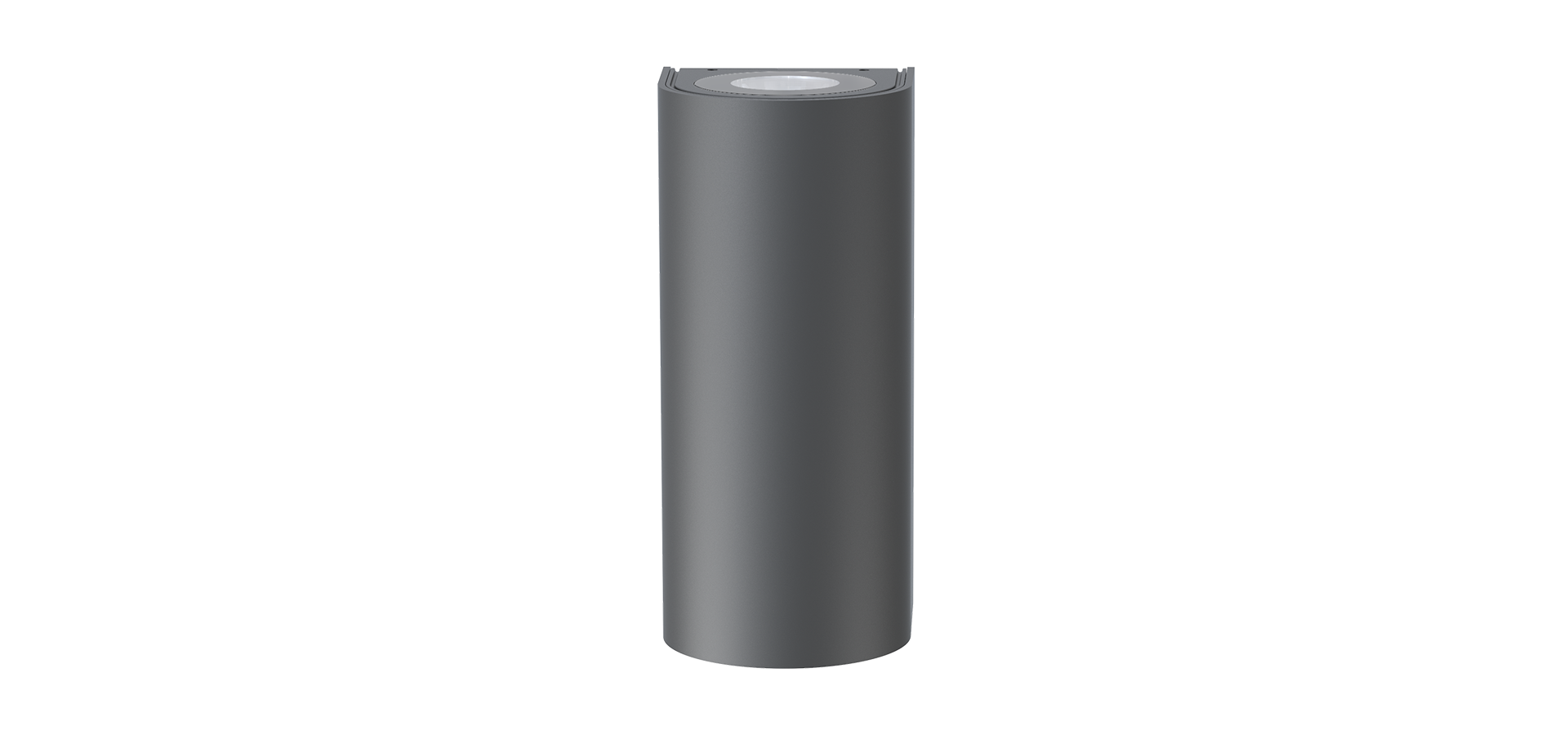

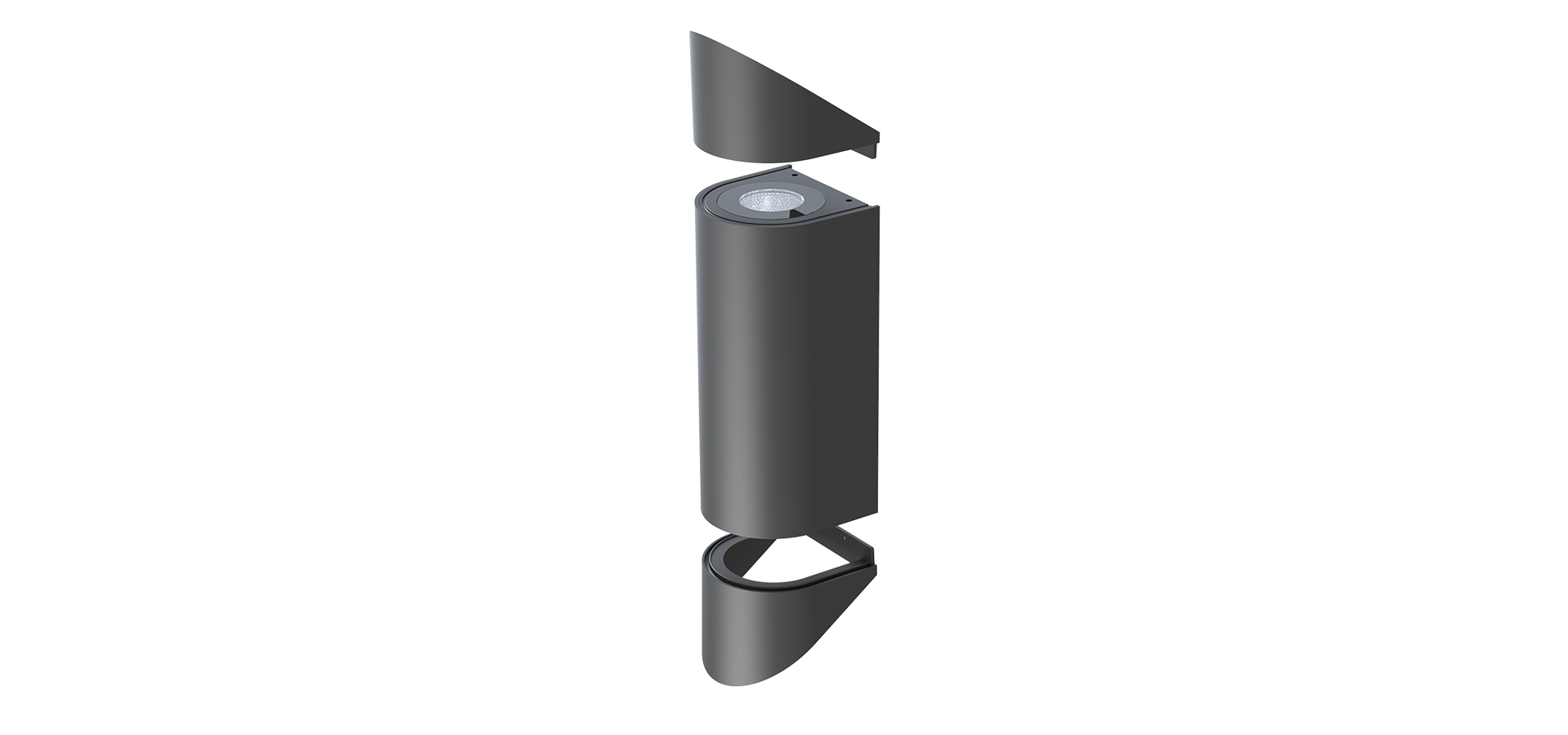

Tie is a simple design wall lamp, available in square and round appearance. It is composed of die-casting aluminum, reflective cup and tempered glass.  with high-quality outdoor special powder spraying process which can make the lamp have a Tough weather resistance and anti-aging functions, and the protection grade is IP65.

Tie series wall lamp adopts deep anti-glare reflective cup, with direct and indirect light, which can provide a variety of light emission angles to meet the needs of various scenes, it is with comfortable vision and without light spot. There are optional accessories optional, which makes the lamp have excellent anti-glare performance. The lamp housing is with integrally die-cast aluminum, and has good heat dissipation performance. Optional DALI2, wireless intelligent dimming and other functions are optional, it is with built-in waterproof terminals, which is convenient for installation and maintenance.

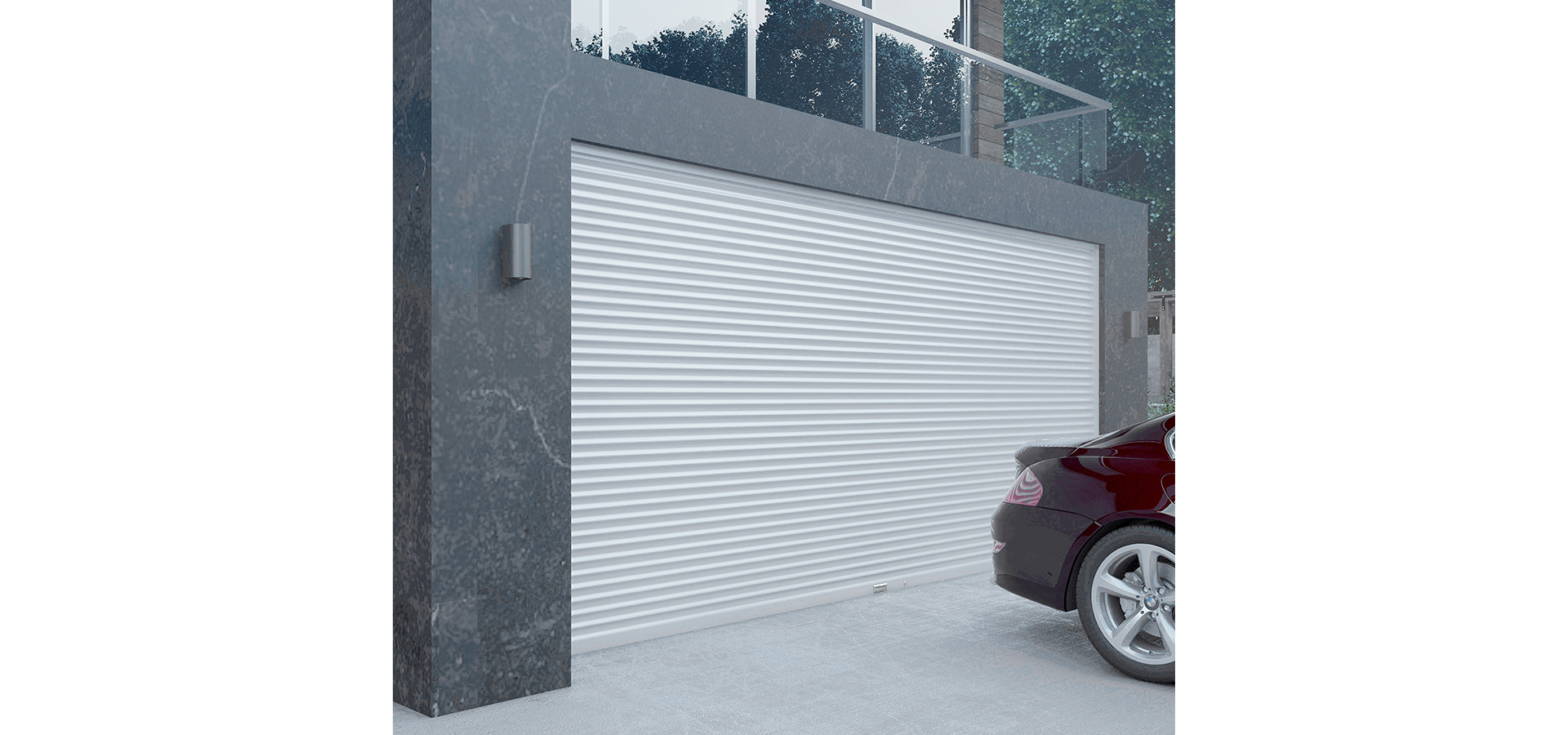

We provide 5 years warranty the lamp can be used as indoor and outdoor facade lighting, architectural decorative lighting, etc.

TECHNICAL DATA
System power: 43W / 24W
Luminous flux of luminaire: 3080 lm / 2350 lm
Colour temperature: 3000 K / 4000 K
Colour consistency SDCM: <3
Maintained luminous flux: L70 (B50) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options
  • System Power

    43W 24W
  • Surface Finish

    Black White Silver
  • Colour temperature

    3000K 4000K
  • Beam Angle

    ↑24°/24°↓ ↑36°/36°↓
  • Function

    On/Off DALI
Item NO.System PowerSurface FinishColour temperatureBeam AngleFunctionDownloads
