Rind-P
Simple, classic design with excellent craft work. Appearance with rich texture. Extremely saving installation and maintenance time by revolutionary surface mounted structure.

Using special anti-glare cover,UGR<18 with comfortable and soft lights for Direct 70% &Indirect 30%. Typical value up to 110lm/W with fiicker freely. Support smart functions like Motion sensor, 1-10V and Dali dimming, Tunable white and Emergency function .Work with CASAMBI wireless system to support group setting.

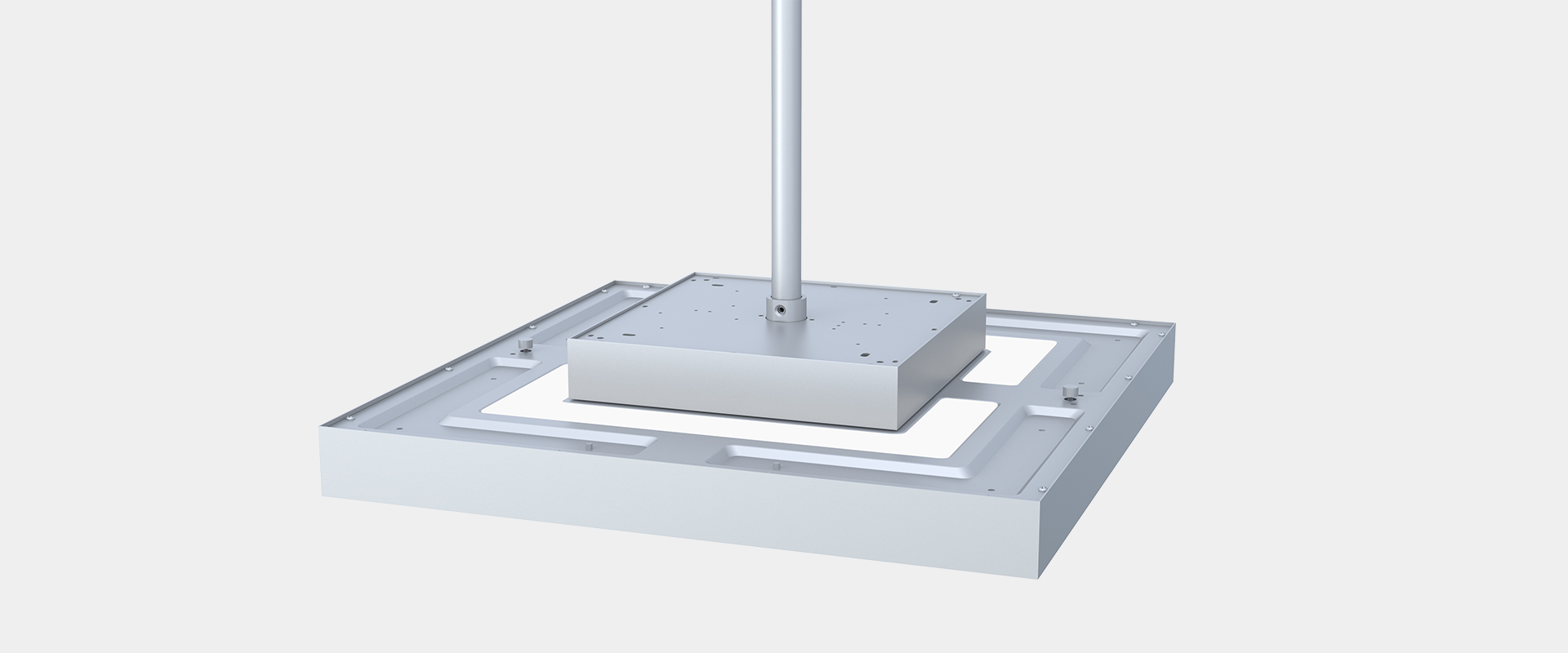

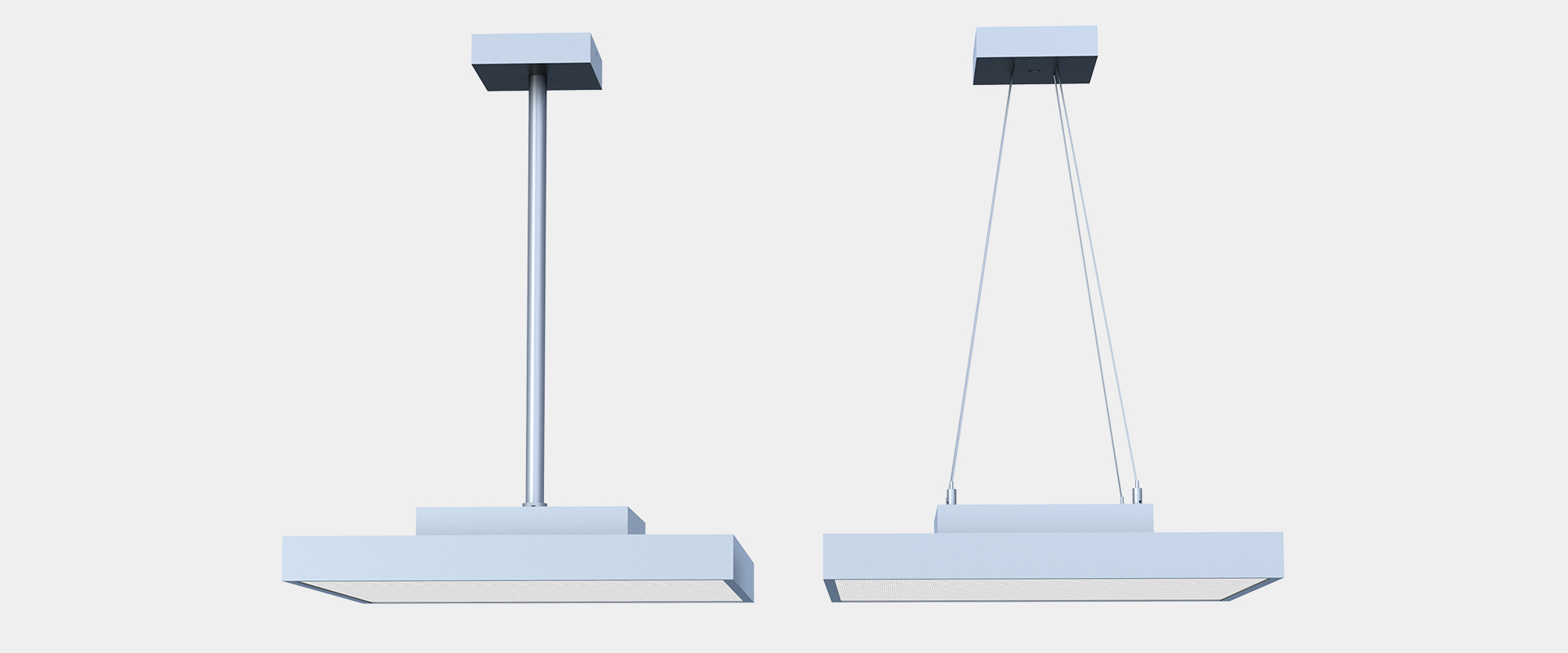

Simply assembling structure, fiexible to support customers’ requirement .Profile aluminum, SDCC , and PC as main materials. Suspension installation with Pole suspension and Steel wire suspension for choosing.

TECHNICAL DATA
System power: 30 W
Luminous flux of luminaire: 3100 lm
Colour temperature: 3000 K / 4000 K
UGR: <18
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • Diameter

    450 mm

  • System Power

    30W

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K

  • Dimming

    None 1-10V DALI

  • Cover

    Microprismatic
Item NO.DiameterSystem PowerSurface FinishColour temperatureDimmingCoverDownloads
22.007.34018450 mm30WSilver4000KDALIMicroprismaticPDFIMIESLDTSIZE
22.007.33017450 mm30WSilver3000KDALIMicroprismaticPDFIMIESLDTSIZE
22.007.24016450 mm30WWhite4000KDALIMicroprismaticPDFIMIESLDTSIZE
22.007.23015450 mm30WWhite3000KDALIMicroprismaticPDFIMIESLDTSIZE
22.007.14014450 mm30WBlack4000KDALIMicroprismaticPDFIMIESLDTSIZE
22.007.13013450 mm30WBlack3000KDALIMicroprismaticPDFIMIESLDTSIZE
22.007.34012450 mm30WSilver4000K1-10VMicroprismaticPDFIMIESLDTSIZE
22.007.33011450 mm30WSilver3000K1-10VMicroprismaticPDFIMIESLDTSIZE
22.007.24010450 mm30WWhite4000K1-10VMicroprismaticPDFIMIESLDTSIZE
22.007.23009450 mm30WWhite3000K1-10VMicroprismaticPDFIMIESLDTSIZE
22.007.14008450 mm30WBlack4000K1-10VMicroprismaticPDFIMIESLDTSIZE
22.007.13007450 mm30WBlack3000K1-10VMicroprismaticPDFIMIESLDTSIZE
22.007.34006450 mm30WSilver4000KNoneMicroprismaticPDFIMIESLDTSIZE
22.007.33005450 mm30WSilver3000KNoneMicroprismaticPDFIMIESLDTSIZE
22.007.24004450 mm30WWhite4000KNoneMicroprismaticPDFIMIESLDTSIZE
22.007.23003450 mm30WWhite3000KNoneMicroprismaticPDFIMIESLDTSIZE
22.007.14002450 mm30WBlack4000KNoneMicroprismaticPDFIMIESLDTSIZE
22.007.13001450 mm30WBlack3000KNoneMicroprismaticPDFIMIESLDTSIZE
