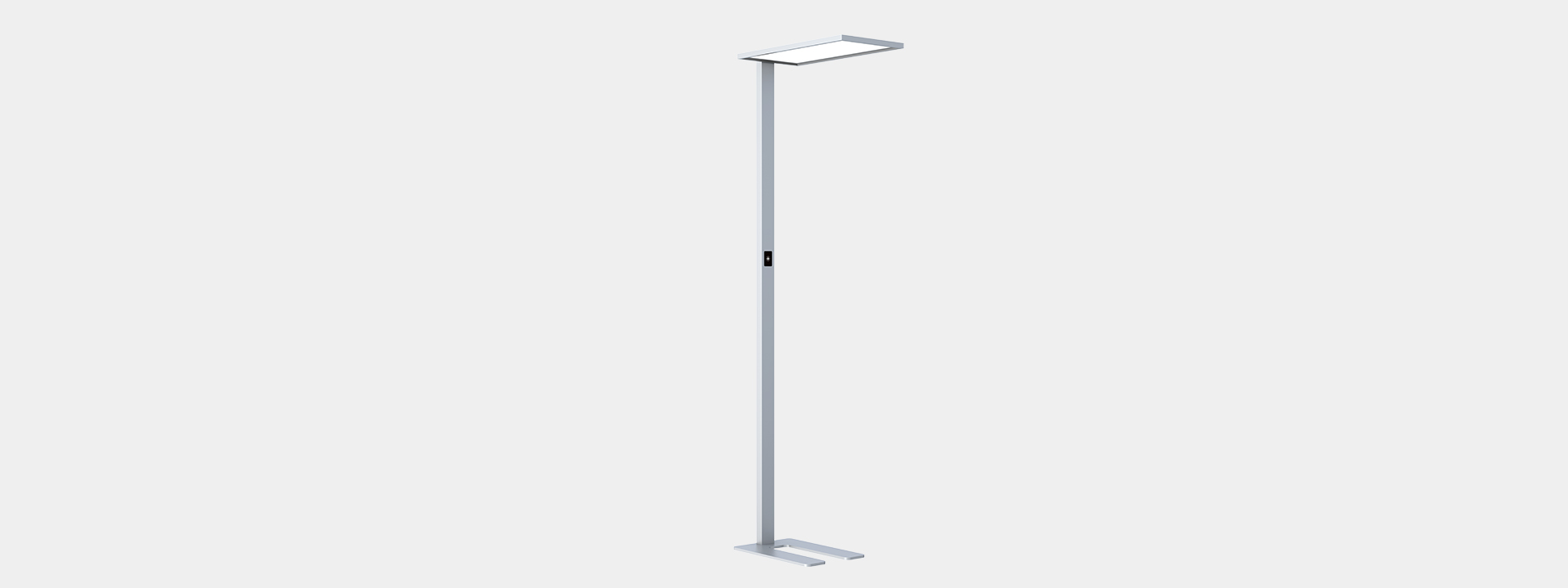

Hoder

Ultra-thin structure design,transparent light guide effect, coupled with perfect process details, the product appearance looks rich in texture.

This product is DIY assembled, no needprofessionals, portable on one side of the desktop, easy to install, flexible to use.

Typicallight efficiencyis 100LM/W,flicker free.Controlled by touching panel,it can realize 50% DIRECT / 50% INDIRECT lighting synchronous dimming.

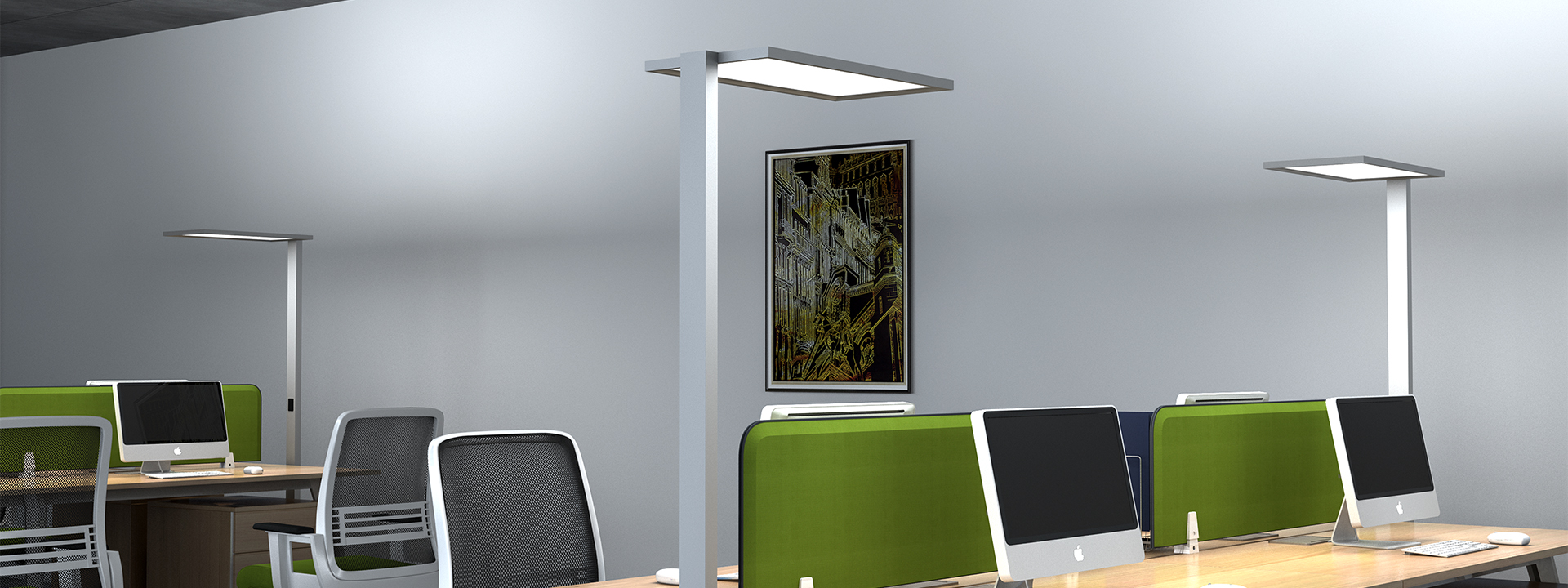

Designed with square corner, and its main materials are aluminum profiles, steel plates and PMMA,suitable for Small office areas or Home office and other office application scenarios.

TECHNICAL DATA
System power: 55 W
Luminous flux of luminaire: 5500 lm
Colour temperature: 3000 K / 4000 K
UGR: <22
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options
  • System Power

    55W
  • Surface Finish

    Black White Silver
  • Colour temperature

    3000K 4000K
  • Beam Angle

    ↑160°/150°↓
  • Cover

    Microprismatic
  • Sensor

    None
Item NO.System PowerSurface FinishColour temperatureBeam AngleCoverSensorDownloads
20.014.3600655WSilver4000K↑160°/150°↓MicroprismaticNonePDFIMIESLDTSIZE
20.014.3300555WSilver3000K↑160°/150°↓MicroprismaticNonePDFIMIESLDTSIZE
20.014.2400455WWhite4000K↑160°/150°↓MicroprismaticNonePDFIMIESLDTSIZE
20.014.2300355WWhite3000K↑160°/150°↓MicroprismaticNonePDFIMIESLDTSIZE
20.014.1400255WBlack4000K↑160°/150°↓MicroprismaticNonePDFIMIESLDTSIZE
20.014.1300155WBlack3000K↑160°/150°↓MicroprismaticNonePDFIMIESLDTSIZE
