Freyr-P2

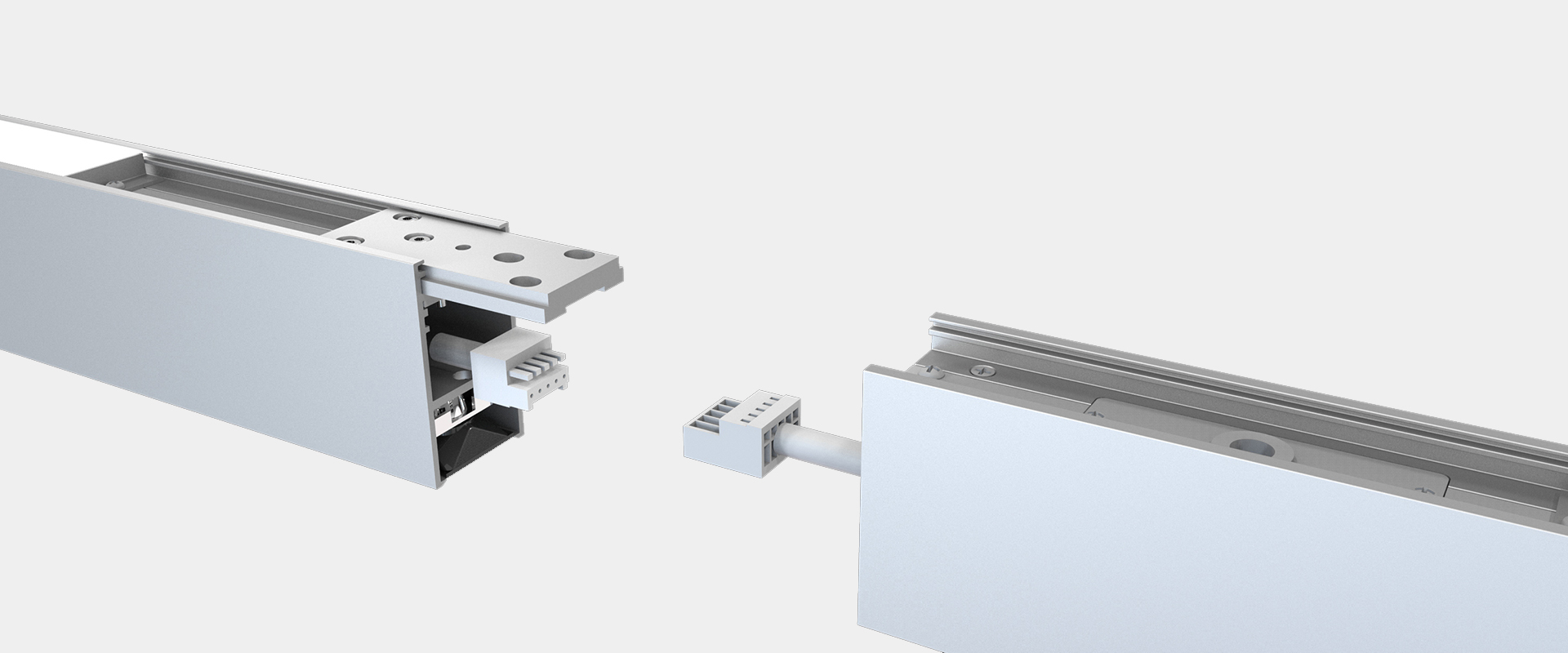

With extremely simple design and excellent craftwork, exquisite appearance looks with rich of texture. Lamp is designed with special Direct/Indirect lighting and 110°(Indirect) beam angle. Collocated with micro reflector and anti-glare cover, it can realize 50°(Direct) beam angle and perfect light cutoff. UGR value is as low as 6. Adopting linkable structure design, there is no light leak gap.

Main material includes aluminum profile and PC. Typical value of light efficiency is 110lm/w, and lighting is of flicker free. Direct(50% power)/Indirect(50% power) lighting can be synchronously controlled. Lamp supports 1-10V and DALI dimming. Collocated with CASAMBI wireless system, dimming and tunable white can be realized.

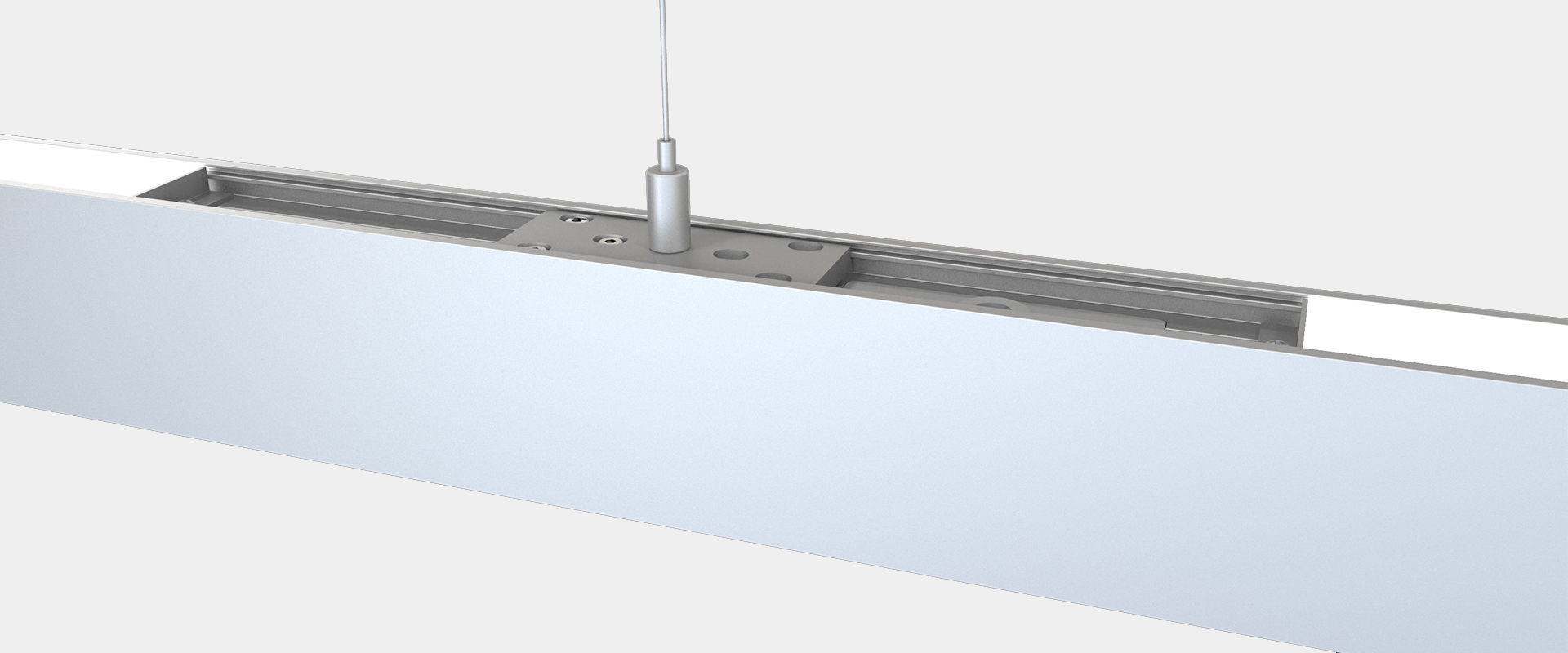

Adopting suspended installation.

TECHNICAL DATA
System power: 50 W / 60 W
Luminous flux of luminaire: 5500 lm / 6600lm
Colour temperature: 3000 K / 4000 K
UGR: <6
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • Length

    1175 mm 1493 mm

  • System Power

    50W 60W

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K

  • UGR

    <6

  • Dimming

    None 1-10V DALI
Item NO.LengthSystem PowerSurface FinishColour temperatureUGRDimmingDownloads
22.011.340361493 mm60WSilver4000K<6DALIPDFIMIESLDTSIZE
22.011.330351493 mm60WSilver3000K<6DALIPDFIMIESLDTSIZE
22.011.240341493 mm60WWhite4000K<6DALIPDFIMIESLDTSIZE
22.011.230331493 mm60WWhite3000K<6DALIPDFIMIESLDTSIZE
22.011.140321493 mm60WBlack4000K<6DALIPDFIMIESLDTSIZE
22.011.130311493 mm60WBlack3000K<6DALIPDFIMIESLDTSIZE
22.011.340301493 mm60WSilver4000K<61-10VPDFIMIESLDTSIZE
22.011.330291493 mm60WSilver3000K<61-10VPDFIMIESLDTSIZE
22.011.240281493 mm60WWhite4000K<61-10VPDFIMIESLDTSIZE
22.011.230271493 mm60WWhite3000K<61-10VPDFIMIESLDTSIZE
22.011.140261493 mm60WBlack4000K<61-10VPDFIMIESLDTSIZE
22.011.130251493 mm60WBlack3000K<61-10VPDFIMIESLDTSIZE
22.011.340241493 mm60WSilver4000K<6NonePDFIMIESLDTSIZE
22.011.330231493 mm60WSilver3000K<6NonePDFIMIESLDTSIZE
22.011.240221493 mm60WWhite4000K<6NonePDFIMIESLDTSIZE
22.011.230211493 mm60WWhite3000K<6NonePDFIMIESLDTSIZE
22.011.140201493 mm60WBlack4000K<6NonePDFIMIESLDTSIZE
22.011.130191493 mm60WBlack3000K<6NonePDFIMIESLDTSIZE
22.011.340181175 mm50WSilver4000K<6DALIPDFIMIESLDTSIZE
22.011.330171175 mm50WSilver3000K<6DALIPDFIMIESLDTSIZE
22.011.240161175 mm50WWhite4000K<6DALIPDFIMIESLDTSIZE
22.011.230151175 mm50WWhite3000K<6DALIPDFIMIESLDTSIZE
22.011.140141175 mm50WBlack4000K<6DALIPDFIMIESLDTSIZE
22.011.130131175 mm50WBlack3000K<6DALIPDFIMIESLDTSIZE
22.011.340121175 mm50WSilver4000K<61-10VPDFIMIESLDTSIZE
22.011.330111175 mm50WSilver3000K<61-10VPDFIMIESLDTSIZE
22.011.240101175 mm50WWhite4000K<61-10VPDFIMIESLDTSIZE
22.011.230091175 mm50WWhite3000K<61-10VPDFIMIESLDTSIZE
22.011.140081175 mm50WBlack4000K<61-10VPDFIMIESLDTSIZE
22.011.130071175 mm50WBlack3000K<61-10VPDFIMIESLDTSIZE
22.011.340061175 mm50WSilver4000K<6NonePDFIMIESLDTSIZE
22.011.330051175 mm50WSilver3000K<6NonePDFIMIESLDTSIZE
22.011.240041175 mm50WWhite4000K<6NonePDFIMIESLDTSIZE
22.011.230031175 mm50WWhite3000K<6NonePDFIMIESLDTSIZE
22.011.140021175 mm50WBlack4000K<6NonePDFIMIESLDTSIZE
22.011.130011175 mm50WBlack3000K<6NonePDFIMIESLDTSIZE
