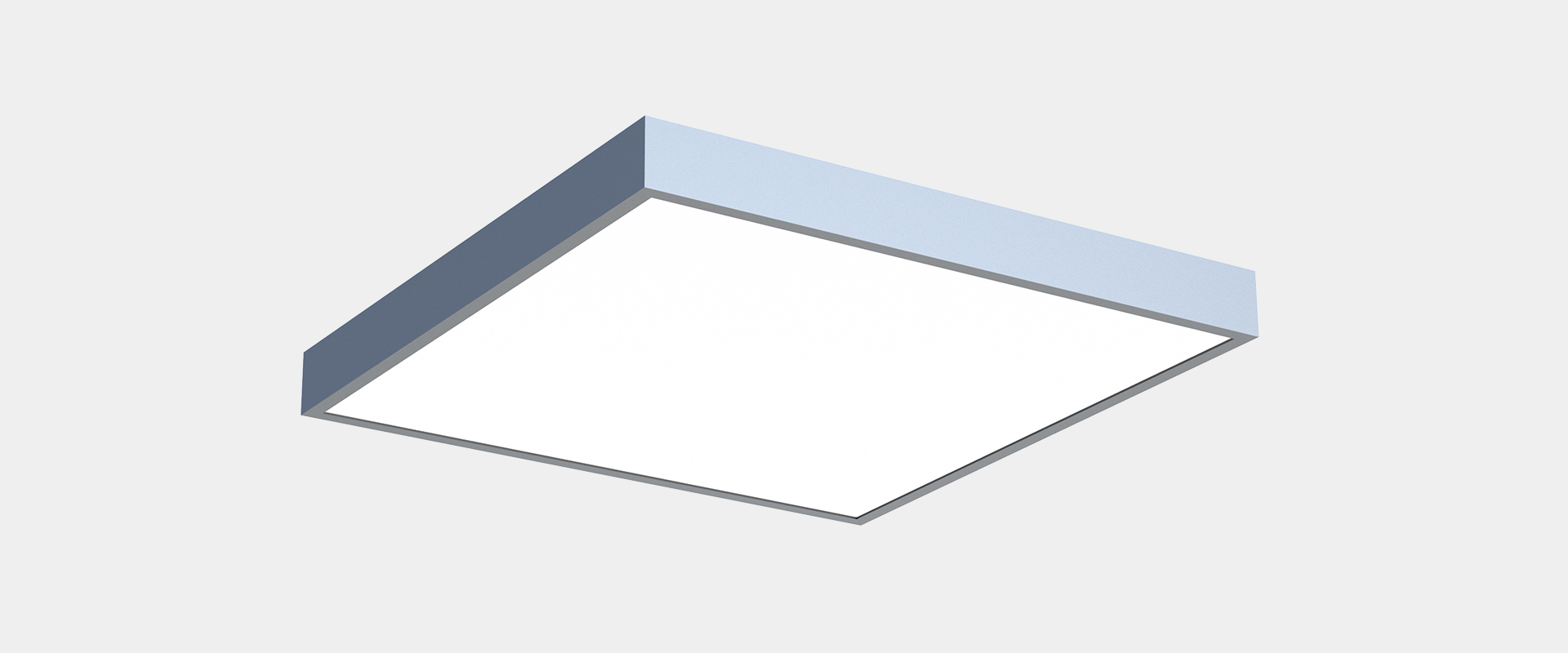

Rind-C
Simple, classic design with excellent craftwork. Appearance with rich texture. Extremely saving installation and maintenance time by revolutionary surface mounted structure.

We use special anti-glare cover, UGR<19, Offering comfortable and soft lights for Indirect to assist luminous environment. Typical value up to 110lm/W with fiicker freely. Support smart functions like Motion sensor, 1-10V and Dali dimming, Tunable white and Emergency function. Work with CASAMBI wireless system to support group setting.

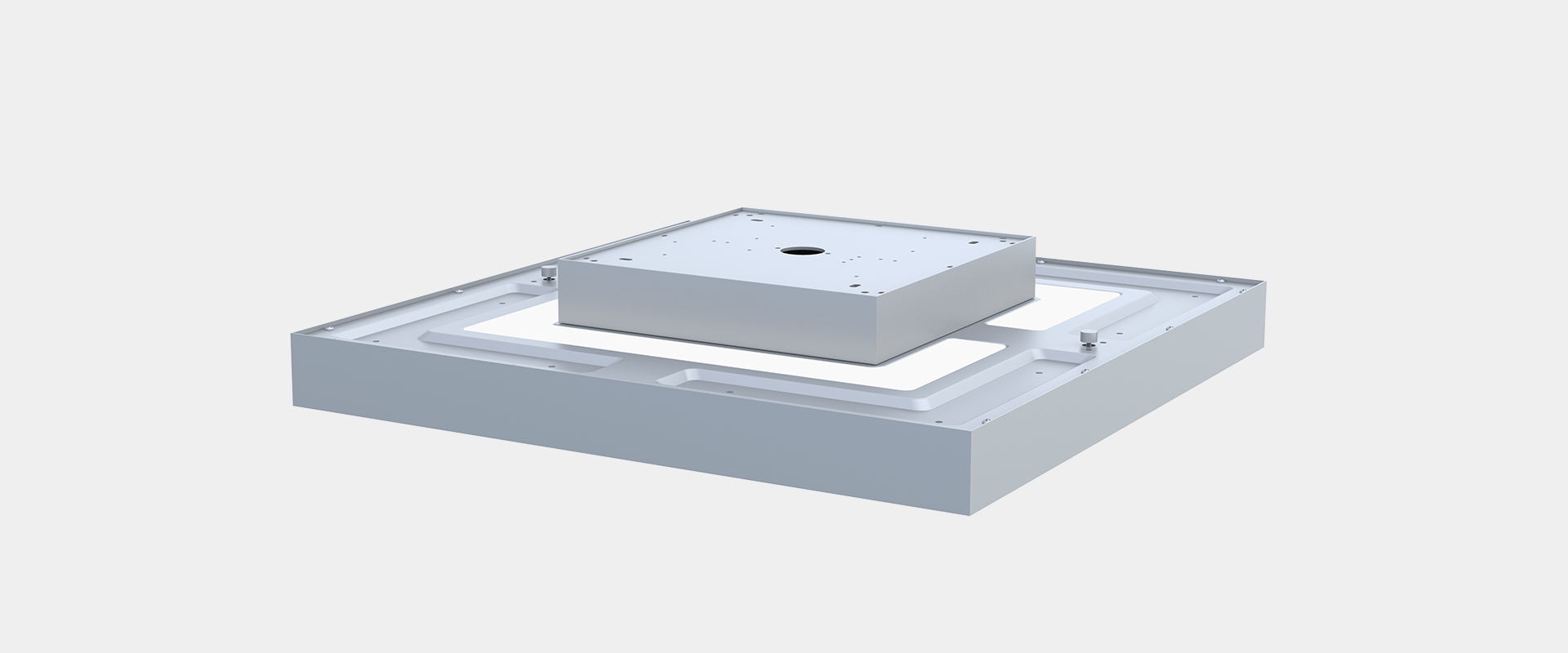

Simply assembling structure, fiexible to support customers’ requirement.Profile aluminum, SDCC, and PC as main materials. Surface mounted installation.

TECHNICAL DATA
System power: 30 W
Luminous flux of luminaire: 3100 lm
Colour temperature: 3000 K / 4000 K
UGR: <19
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • Length

    450 mm

  • System Power

    30W

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K

  • Dimming

    None 1-10V DALI

  • Cover

    Microprismatic
Item NO.LengthSystem PowerSurface FinishColour temperatureDimmingCoverDownloads
23.005.34018450 mm30WSilver4000KDALIMicroprismaticPDFIMIESLDTSIZE
23.005.33017450 mm30WSilver3000KDALIMicroprismaticPDFIMIESLDTSIZE
23.005.24016450 mm30WWhite4000KDALIMicroprismaticPDFIMIESLDTSIZE
23.005.23015450 mm30WWhite3000KDALIMicroprismaticPDFIMIESLDTSIZE
23.005.14014450 mm30WBlack4000KDALIMicroprismaticPDFIMIESLDTSIZE
23.005.13013450 mm30WBlack3000KDALIMicroprismaticPDFIMIESLDTSIZE
23.005.34012450 mm30WSilver4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.005.33011450 mm30WSilver3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.005.24010450 mm30WWhite4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.005.23009450 mm30WWhite3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.005.14008450 mm30WBlack4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.005.13007450 mm30WBlack3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.005.34006450 mm30WSilver4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.005.33005450 mm30WSilver3000KNoneMicroprismaticPDFIMIESLDTSIZE
23.005.24004450 mm30WWhite4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.005.23003450 mm30WWhite3000KNoneMicroprismaticPDFIMIESLDTSIZE
23.005.14002450 mm30WBlack4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.005.13001450 mm30WBlack3000KNoneMicroprismaticPDFIMIESLDTSIZE
