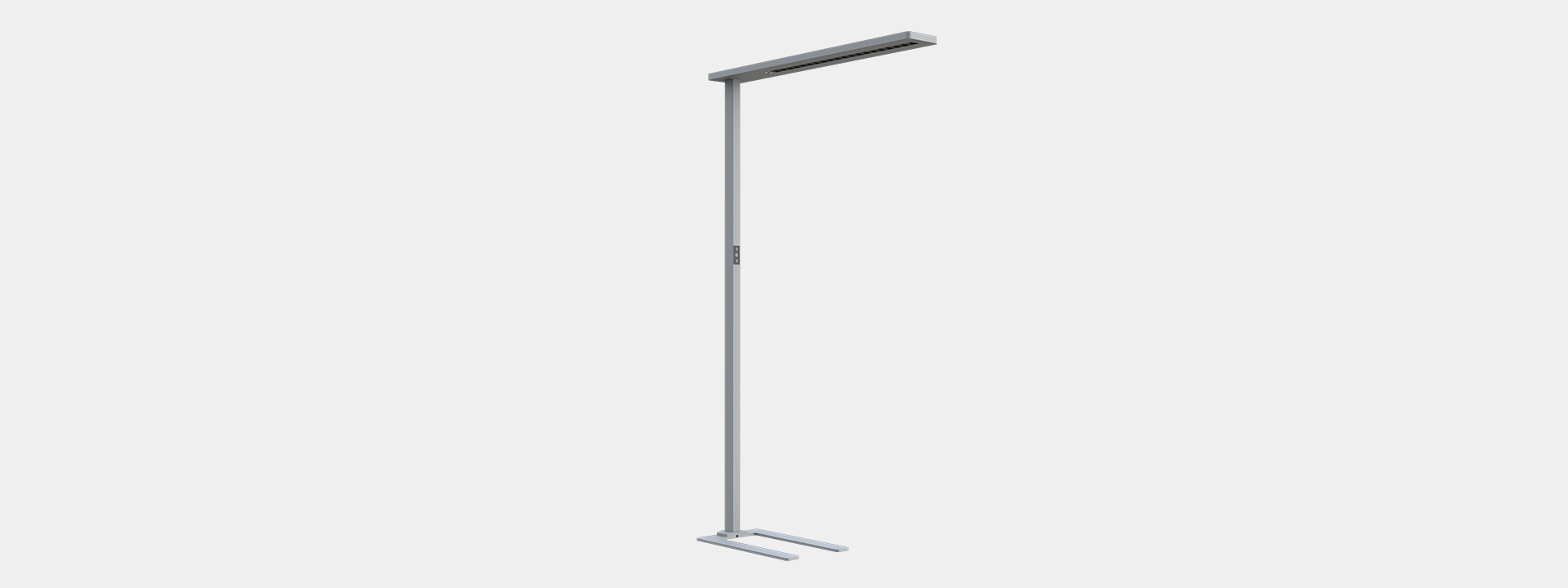

Heimdall

The product design is simple, stylish with rich texture,which is suitable for a 20-25 m² individual office or an open office area
without compensation light and could achieve uniform lighting for one desk and two desks.

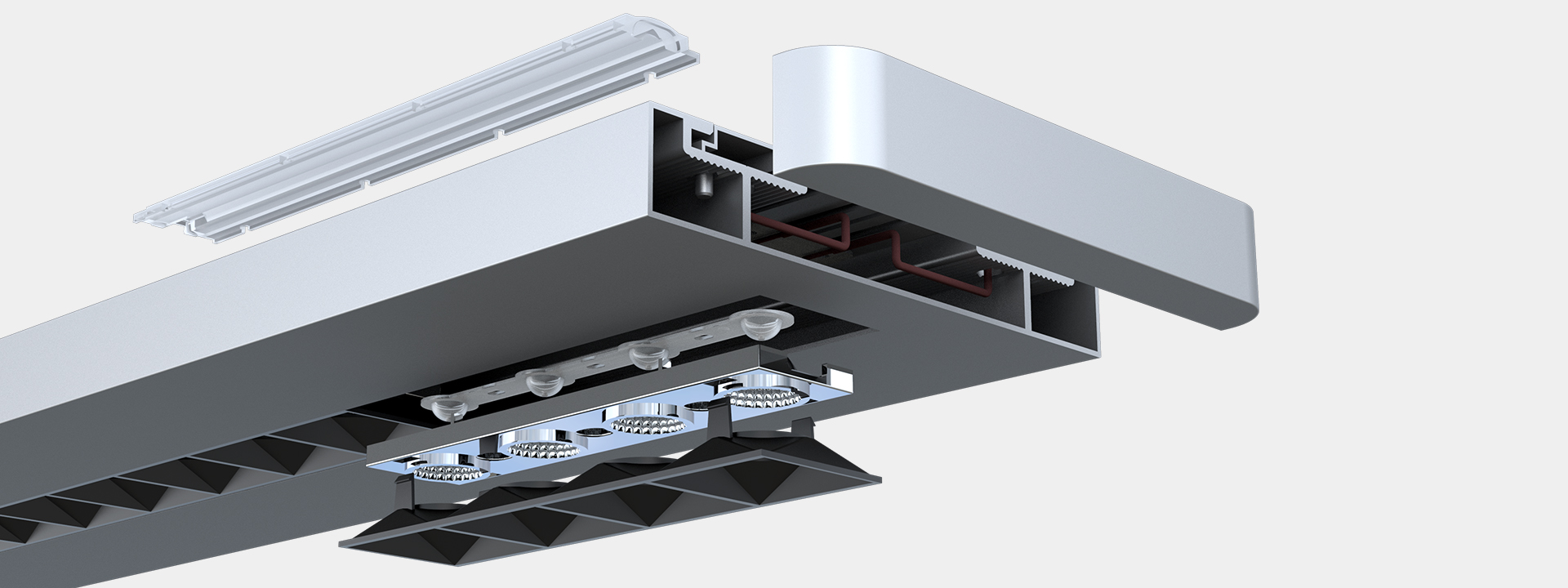

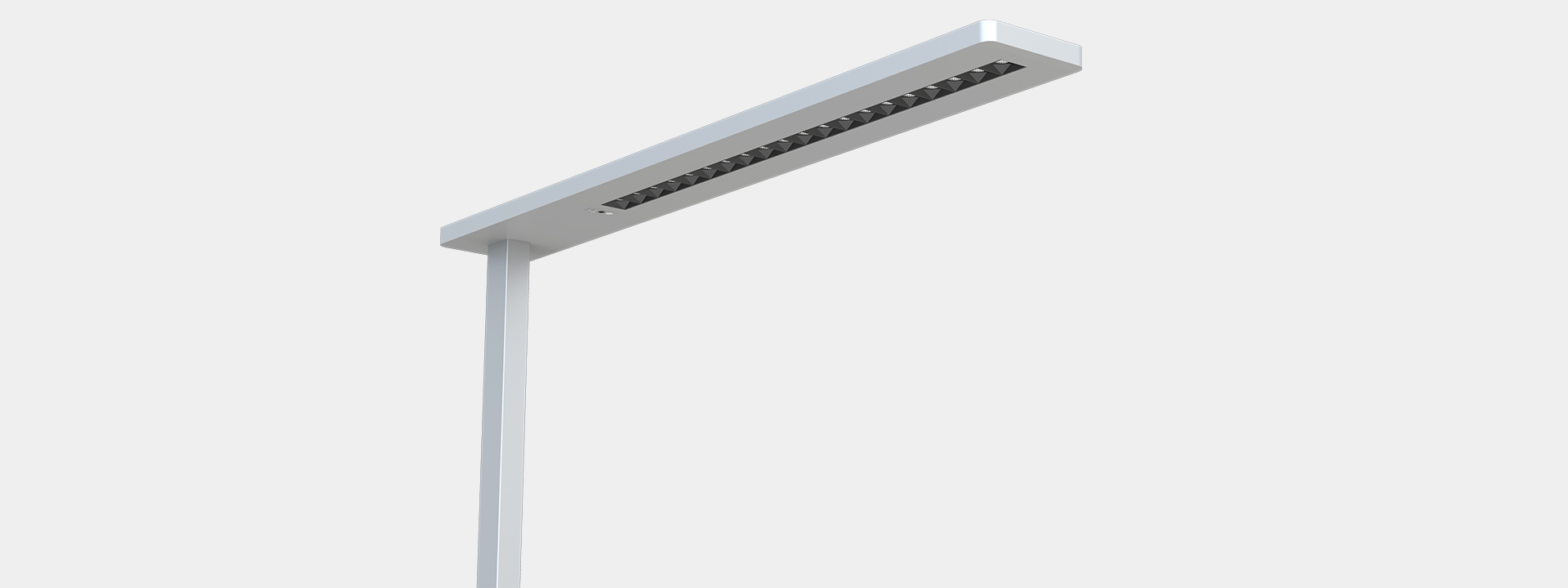

The direct light15W. The UGR is less than 10 based on the refiector and anti-glare structure,50 beam angle and 75 beam angle optional. Indirect light 95W, 140 beam angle, luminous fiux of up to 12200LM.


The product can realize direct and indirect light control individually, intelligent motion sensor, daylightsensor,tunable white and other stand-alone functions bases on its own control system. It also supports tocustomize CASAMBI , HCL, and SWARM control system.

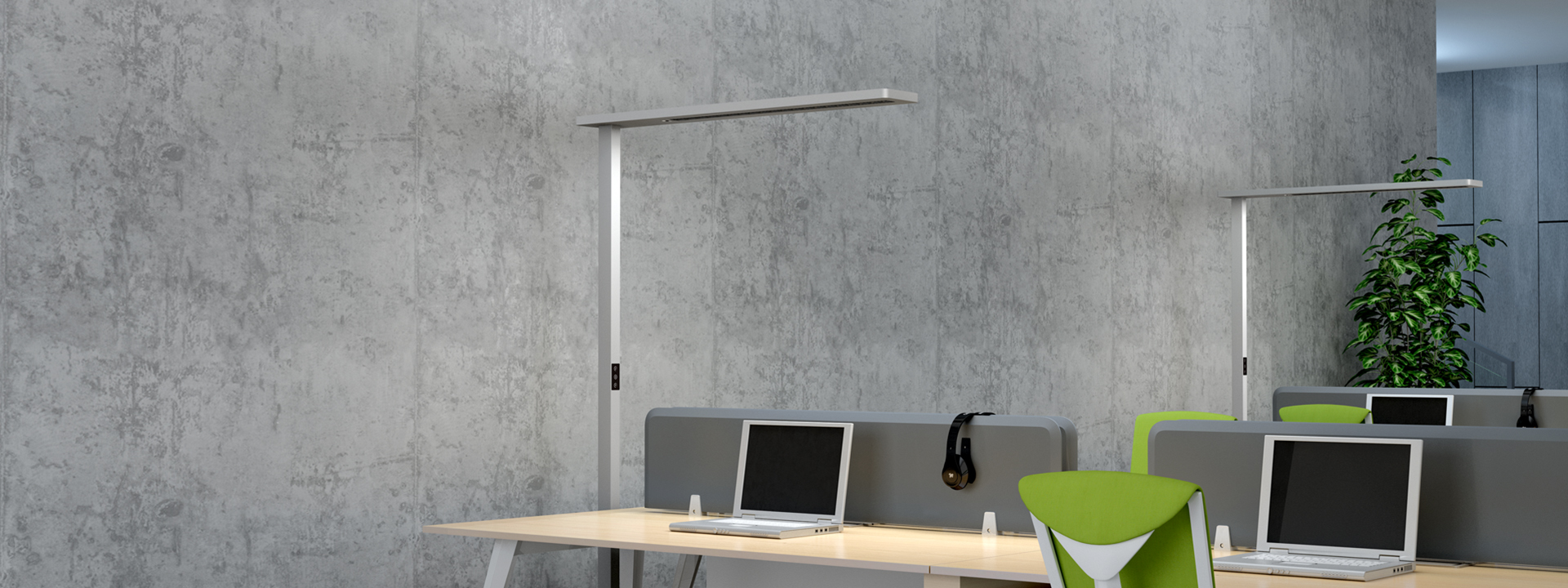

The product could provide uniform, comfortable and low glare lighting for individual offices or open office areas without compensation light.

TECHNICAL DATA
System power: 110 W / 140 W
Luminous flux of luminaire: 13700 lm / 16700 lm
Colour temperature: 4000 K / 3000 K / 3000~6000 K Tunable
UGR: <10

Colour Rendering Index: CRI >80

Colour consistency SDCM: <3

Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options
  • System Power

    110W 140W
  • Surface Finish

    Black White Silver
  • Colour temperature

    3000K 4000K 3000K~6000K
  • Beam Angle

    ↑140°/80°↓ ↑140°/50°↓
  • UGR

    <10
  • Sensor

    Daylight & Motion sensor
Item NO.System PowerSurface FinishColour temperatureBeam AngleUGRSensorDownloads
20.006.36036140WSilver3000K~6000K↑140°/50°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.34035140WSilver4000K↑140°/50°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.33034140WSilver3000K↑140°/50°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.26033140WWhite3000K~6000K↑140°/50°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.24032140WWhite4000K↑140°/50°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.23031140WWhite3000K↑140°/50°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.16030140WBlack3000K~6000K↑140°/50°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.14029140WBlack4000K↑140°/50°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.13028140WBlack3000K↑140°/50°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.36027140WSilver3000K~6000K↑140°/80°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.34026140WSilver4000K↑140°/80°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.33025140WSilver3000K↑140°/80°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.26024140WWhite3000K~6000K↑140°/80°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.24023140WWhite4000K↑140°/80°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.23022140WWhite3000K↑140°/80°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.16021140WBlack3000K~6000K↑140°/80°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.14020140WBlack4000K↑140°/80°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.13019140WBlack3000K↑140°/80°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.36018110WSilver3000K~6000K↑140°/50°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.34017110WSilver4000K↑140°/50°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.33016110WSilver3000K↑140°/50°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.26015110WWhite3000K~6000K↑140°/50°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.24014110WWhite4000K↑140°/50°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.23013110WWhite3000K↑140°/50°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.16012110WBlack3000K~6000K↑140°/50°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.14011110WBlack4000K↑140°/50°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.13010110WBlack3000K↑140°/50°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.36009110WSilver3000K~6000K↑140°/80°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.34008110WSilver4000K↑140°/80°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.33007110WSilver3000K↑140°/80°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.26006110WWhite3000K~6000K↑140°/80°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.24005110WWhite4000K↑140°/80°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.23004110WWhite3000K↑140°/80°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.16003110WBlack3000K~6000K↑140°/80°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.14002110WBlack4000K↑140°/80°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
20.006.13001110WBlack3000K↑140°/80°↓<10Daylight & Motion sensorPDFIMIESLDTSIZE
