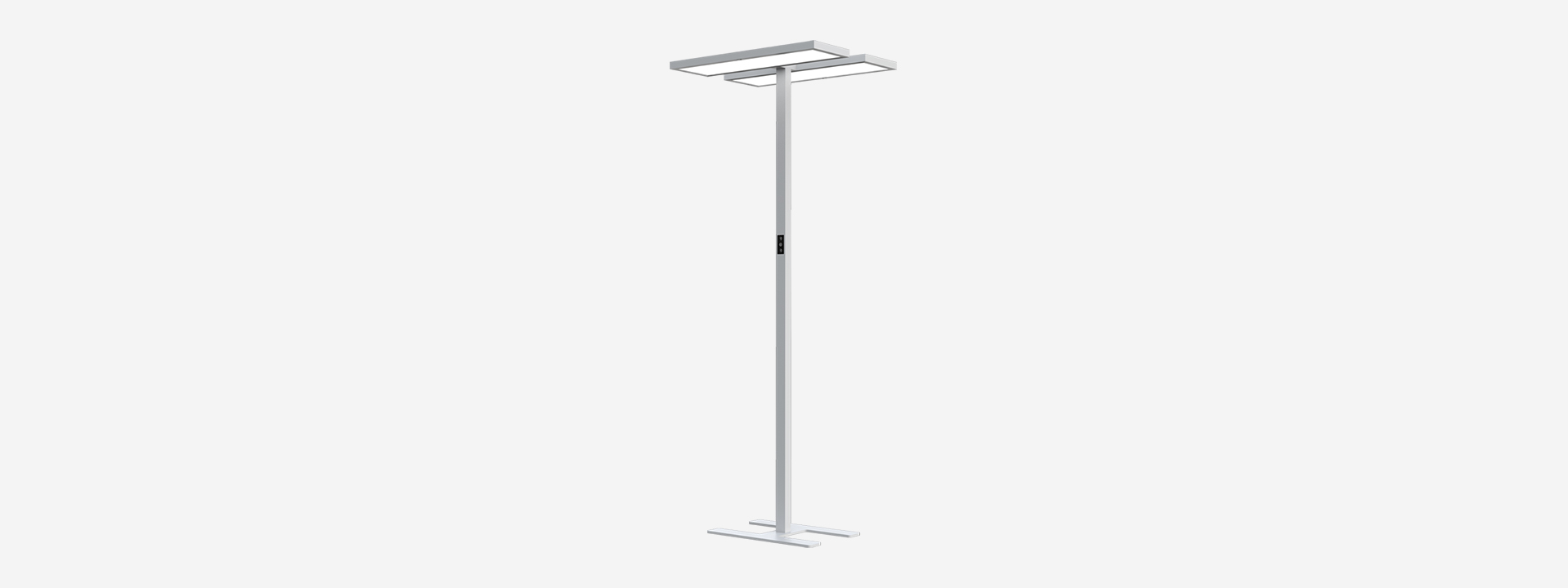

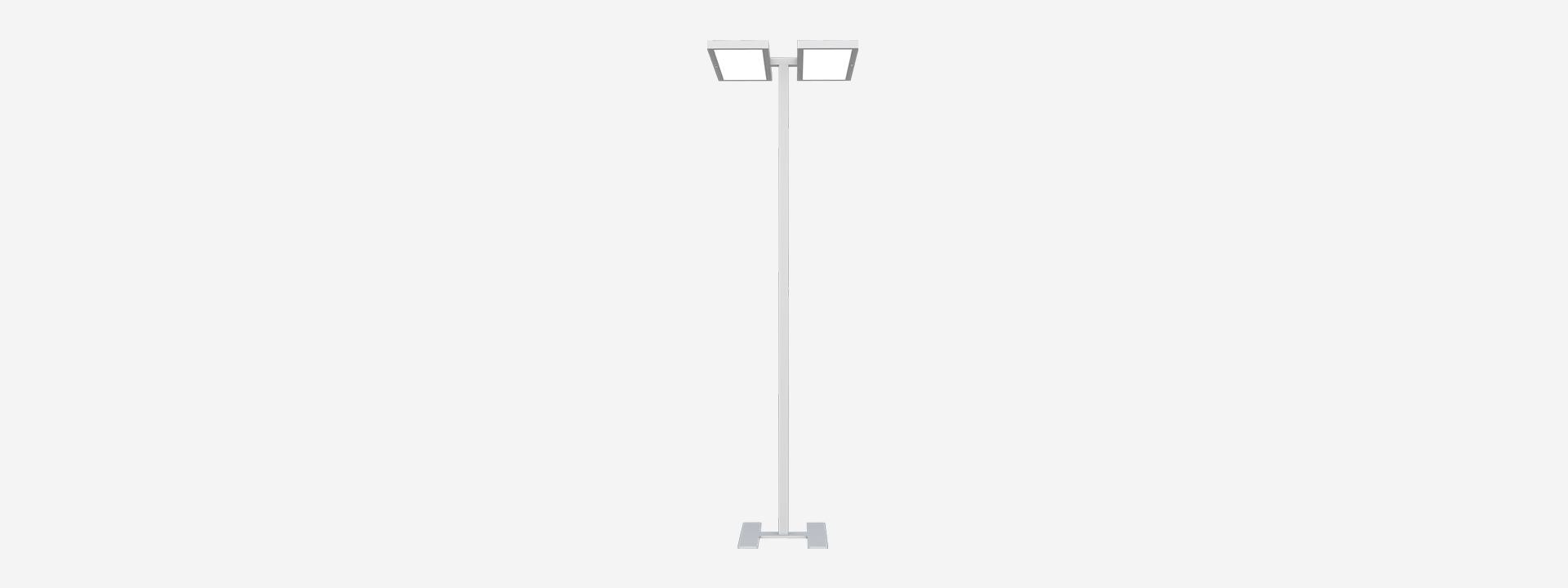

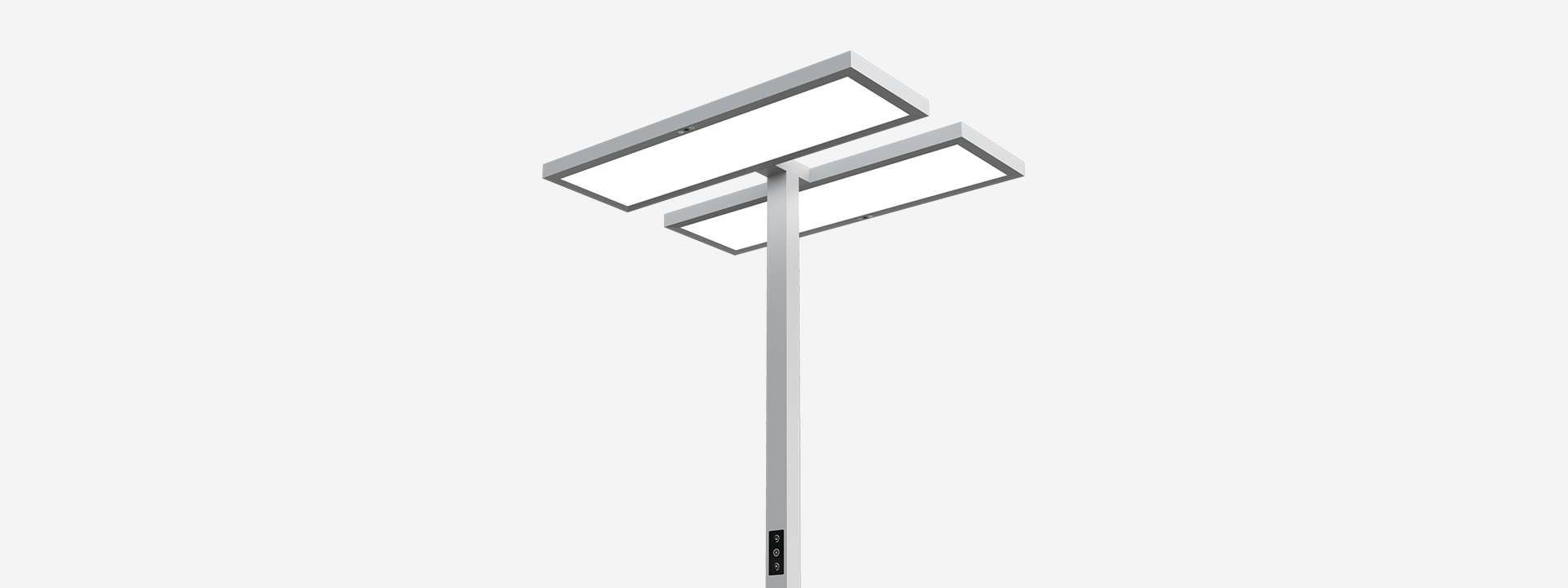

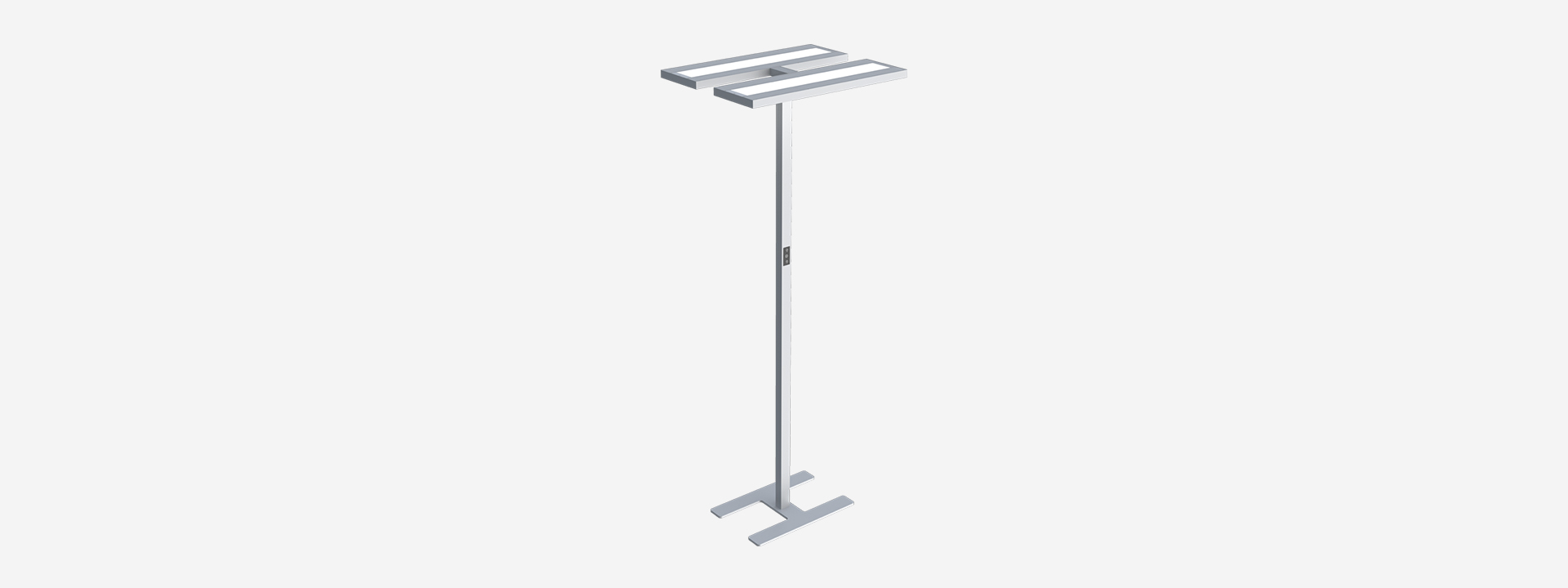

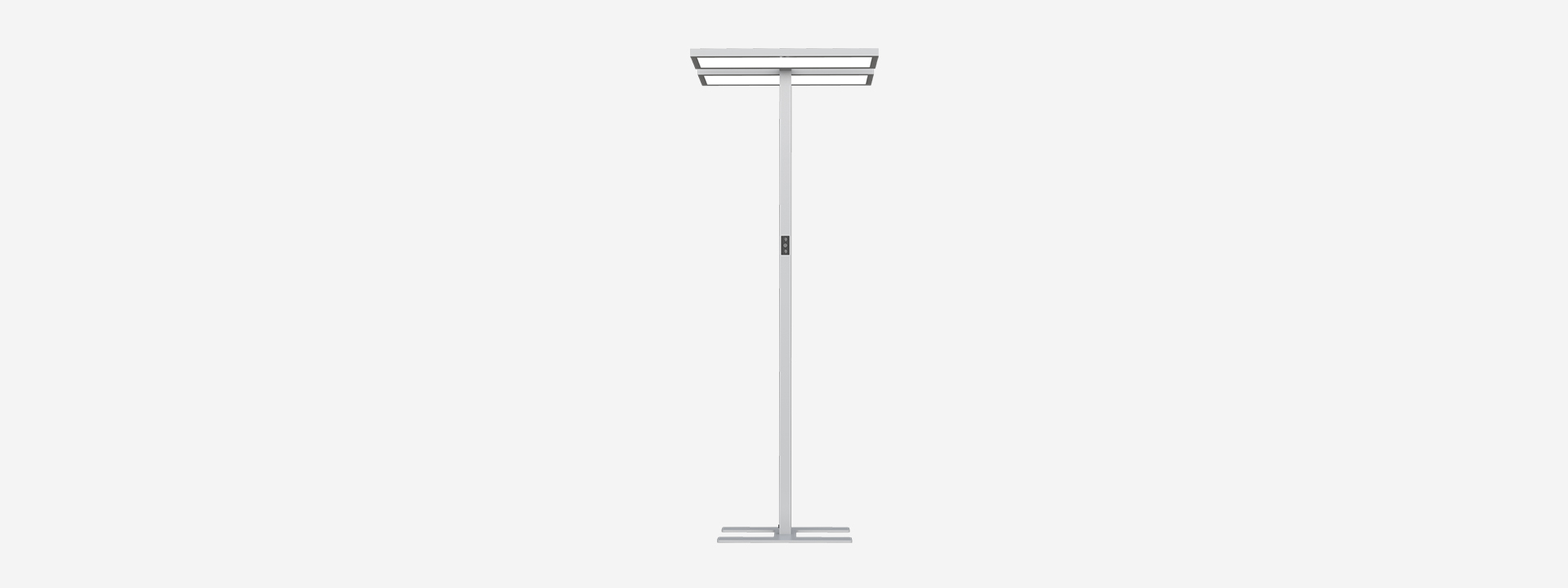

Ymer-D1
The Ymer series come with minimalist design, excellent material selection and production technology, exquisite appearance,
and rich texture. A variety of combinations of lamp head design is accessible for office lighting scenes consisting of a variety
of desks.
Its luminous efficiency is up to 135LM/W. the maximum power is 150W, and the luminous fiux can reach 20000 lumens;
Supports brightness adjustment, color temperature adjustment, motion detection, and constant light control. CANSAMBI/TUYA or OSRAM BT CONTROL enables network control such as HCL and SWARM functions.
6063 aluminum and PMMA/PC material, the lighting from the lamp head, with the ratio of upper and lower light is 8:2, UGR<16, is soft and comfortable. The light pole is made of 6063 aluminum with built-in power supply and control system.
The base is made of hot-rolled steel plate.
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
| Item NO. | System Power | Surface Finish | Colour temperature | Beam Angle | Sensor | Cover | Downloads |
| 20.002.36018 | 150W | Silver | 3000K~6000K | ↑115°/75°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.002.34017 | 150W | Silver | 4000K | ↑115°/75°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.002.33016 | 150W | Silver | 3000K | ↑115°/75°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.002.26015 | 150W | White | 3000K~6000K | ↑115°/75°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.002.24014 | 150W | White | 4000K | ↑115°/75°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.002.23013 | 150W | White | 3000K | ↑115°/75°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.002.16012 | 150W | Black | 3000K~6000K | ↑115°/75°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.002.14011 | 150W | Black | 4000K | ↑115°/75°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.002.13010 | 150W | Black | 3000K | ↑115°/75°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.002.36009 | 150W | Silver | 3000K~6000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.002.34008 | 150W | Silver | 4000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.002.33007 | 150W | Silver | 3000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.002.26006 | 150W | White | 3000K~6000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.002.24005 | 150W | White | 4000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.002.23004 | 150W | White | 3000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.002.16003 | 150W | Black | 3000K~6000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.002.14002 | 150W | Black | 4000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.002.13001 | 150W | Black | 3000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
