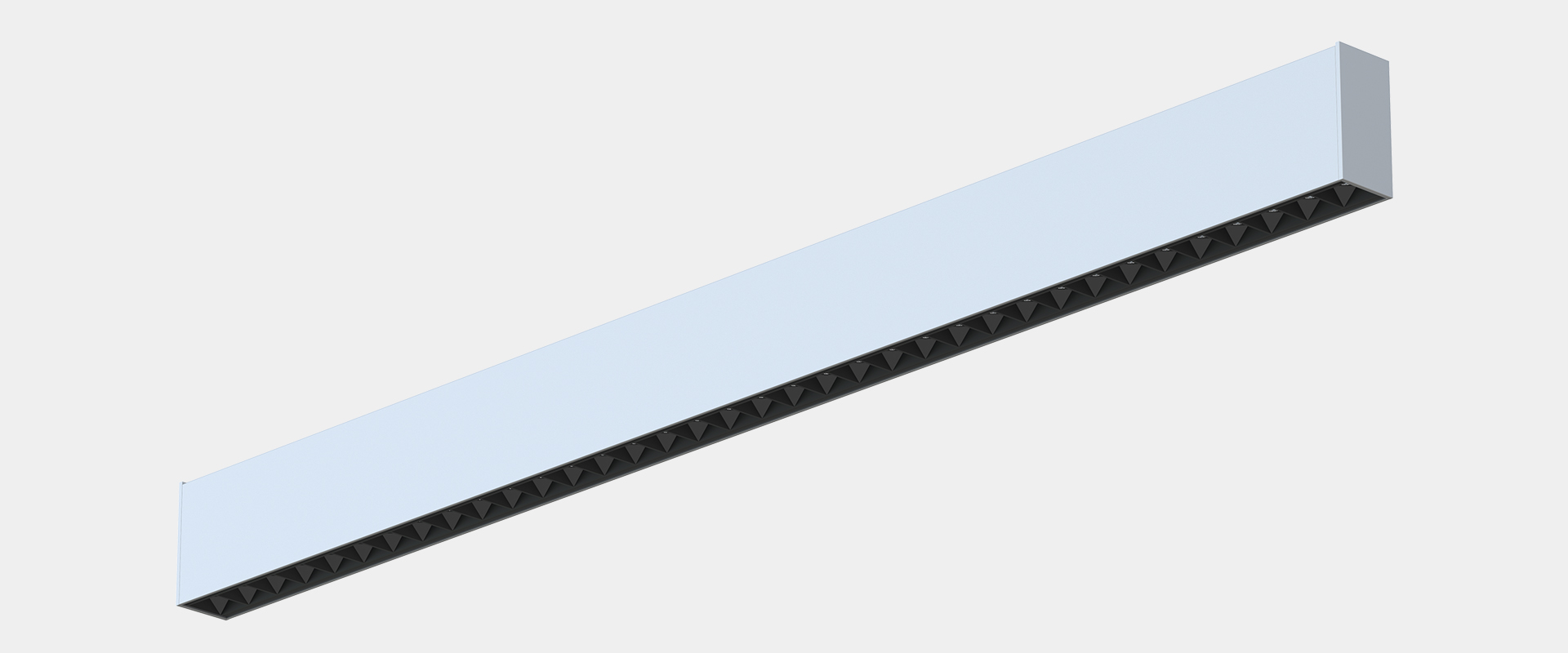

Freyr-C2
With extremely simple design and excellent craftwork, exquisite appearance looks with rich of texture.

Collocated with micro refiector and anti-glare cover, it can realize 50° beam angle and perfect light cutoff. UGR value is as low as 10.

Adopting trimless design, independent linear led modules and push-in & push-out structure, lamp is easy for installation and maintenance. Main material includes aluminum profile and PC.

Typical value of light efficiency is 100lm/w, and lighting is of fiicker free. Lamp supports 1-10V and DALI dimming. Adopting trimless and recessed installation.

TECHNICAL DATA
System power: 30 W / 40 W
Luminous flux of luminaire: 3000 lm / 4000 lm
Colour temperature: 3000 K / 4000 K
UGR: <10
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20

Item NO.	Length	System Power	Surface Finish	Colour temperature	UGR	Dimming	Downloads
23.010.34036	1172 mm	40W	Silver	4000K	<10	DALI	PDF IM IES LDT SIZE
23.010.33035	1172 mm	40W	Silver	3000K	<10	DALI	PDF IM IES LDT SIZE
23.010.24034	1172 mm	40W	White	4000K	<10	DALI	PDF IM IES LDT SIZE
23.010.23033	1172 mm	40W	White	3000K	<10	DALI	PDF IM IES LDT SIZE
23.010.14032	1172 mm	40W	Black	4000K	<10	DALI	PDF IM IES LDT SIZE
23.010.13031	1172 mm	40W	Black	3000K	<10	DALI	PDF IM IES LDT SIZE
23.010.34030	1172 mm	40W	Silver	4000K	<10	1-10V	PDF IM IES LDT SIZE
23.010.33029	1172 mm	40W	Silver	3000K	<10	1-10V	PDF IM IES LDT SIZE
23.010.24028	1172 mm	40W	White	4000K	<10	1-10V	PDF IM IES LDT SIZE
23.010.23027	1172 mm	40W	White	3000K	<10	1-10V	PDF IM IES LDT SIZE
23.010.14026	1172 mm	40W	Black	4000K	<10	1-10V	PDF IM IES LDT SIZE
23.010.13025	1172 mm	40W	Black	3000K	<10	1-10V	PDF IM IES LDT SIZE
23.010.34024	1172 mm	40W	Silver	4000K	<10	None	PDF IM IES LDT SIZE
23.010.33023	1172 mm	40W	Silver	3000K	<10	None	PDF IM IES LDT SIZE
23.010.24022	1172 mm	40W	White	4000K	<10	None	PDF IM IES LDT SIZE
23.010.23021	1172 mm	40W	White	3000K	<10	None	PDF IM IES LDT SIZE
23.010.14020	1172 mm	40W	Black	4000K	<10	None	PDF IM IES LDT SIZE
23.010.13019	1172 mm	40W	Black	3000K	<10	None	PDF IM IES LDT SIZE
23.010.34018	960 mm	30W	Silver	4000K	<10	DALI	PDF IM IES LDT SIZE
23.010.33017	960 mm	30W	Silver	3000K	<10	DALI	PDF IM IES LDT SIZE
23.010.24016	960 mm	30W	White	4000K	<10	DALI	PDF IM IES LDT SIZE
23.010.23015	960 mm	30W	White	3000K	<10	DALI	PDF IM IES LDT SIZE
23.010.14014	960 mm	30W	Black	4000K	<10	DALI	PDF IM IES LDT SIZE
23.010.13013	960 mm	30W	Black	3000K	<10	DALI	PDF IM IES LDT SIZE
23.010.34012	960 mm	30W	Silver	4000K	<10	1-10V	PDF IM IES LDT SIZE
23.010.33011	960 mm	30W	Silver	3000K	<10	1-10V	PDF IM IES LDT SIZE
23.010.24010	960 mm	30W	White	4000K	<10	1-10V	PDF IM IES LDT SIZE
23.010.23009	960 mm	30W	White	3000K	<10	1-10V	PDF IM IES LDT SIZE
23.010.14008	960 mm	30W	Black	4000K	<10	1-10V	PDF IM IES LDT SIZE
23.010.13007	960 mm	30W	Black	3000K	<10	1-10V	PDF IM IES LDT SIZE
23.010.34006	960 mm	30W	Silver	4000K	<10	None	PDF IM IES LDT SIZE
23.010.33005	960 mm	30W	Silver	3000K	<10	None	PDF IM IES LDT SIZE
23.010.24004	960 mm	30W	White	4000K	<10	None	PDF IM IES LDT SIZE
23.010.23003	960 mm	30W	White	3000K	<10	None	PDF IM IES LDT SIZE
23.010.14002	960 mm	30W	Black	4000K	<10	None	PDF IM IES LDT SIZE
23.010.13001	960 mm	30W	Black	3000K	<10	None	PDF IM IES LDT SIZE
