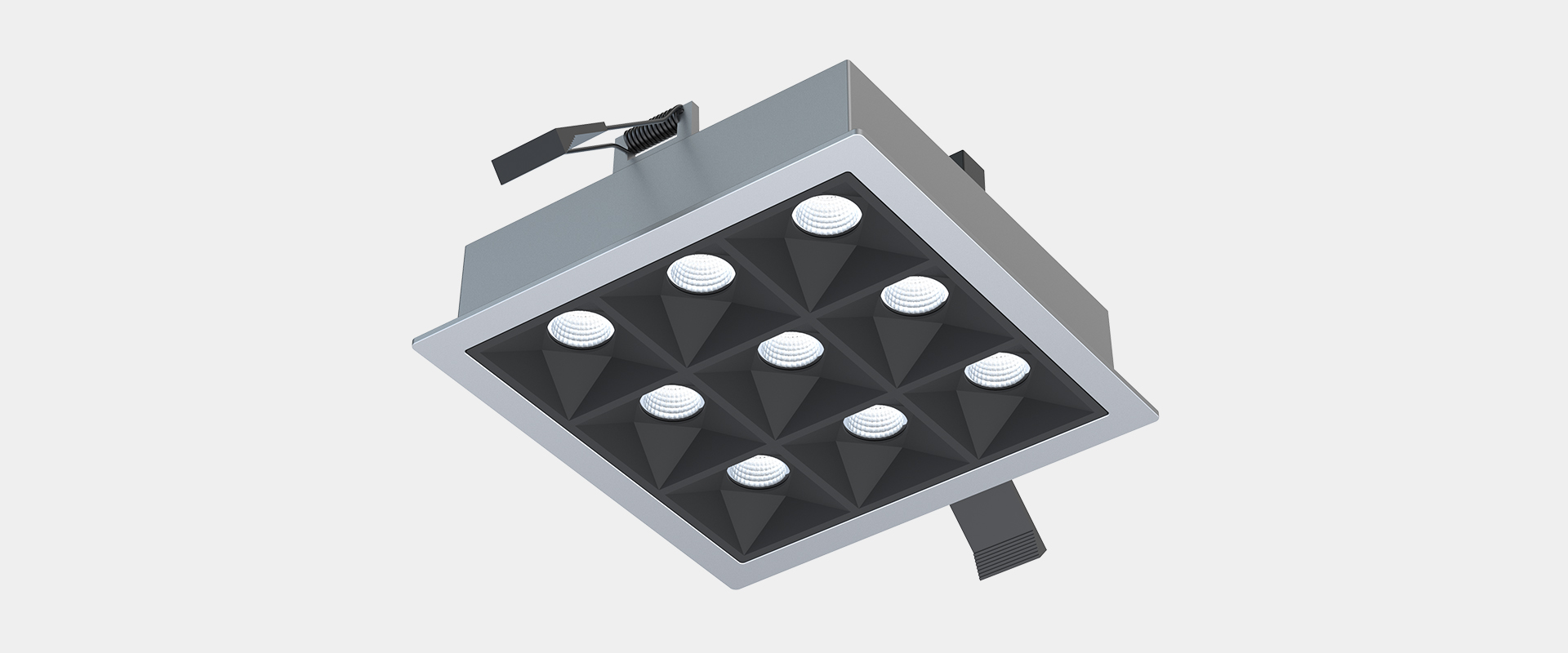

Siv-D3
With extremely simple design and excellent craftwork, exquisite appearance looks with rich of texture.

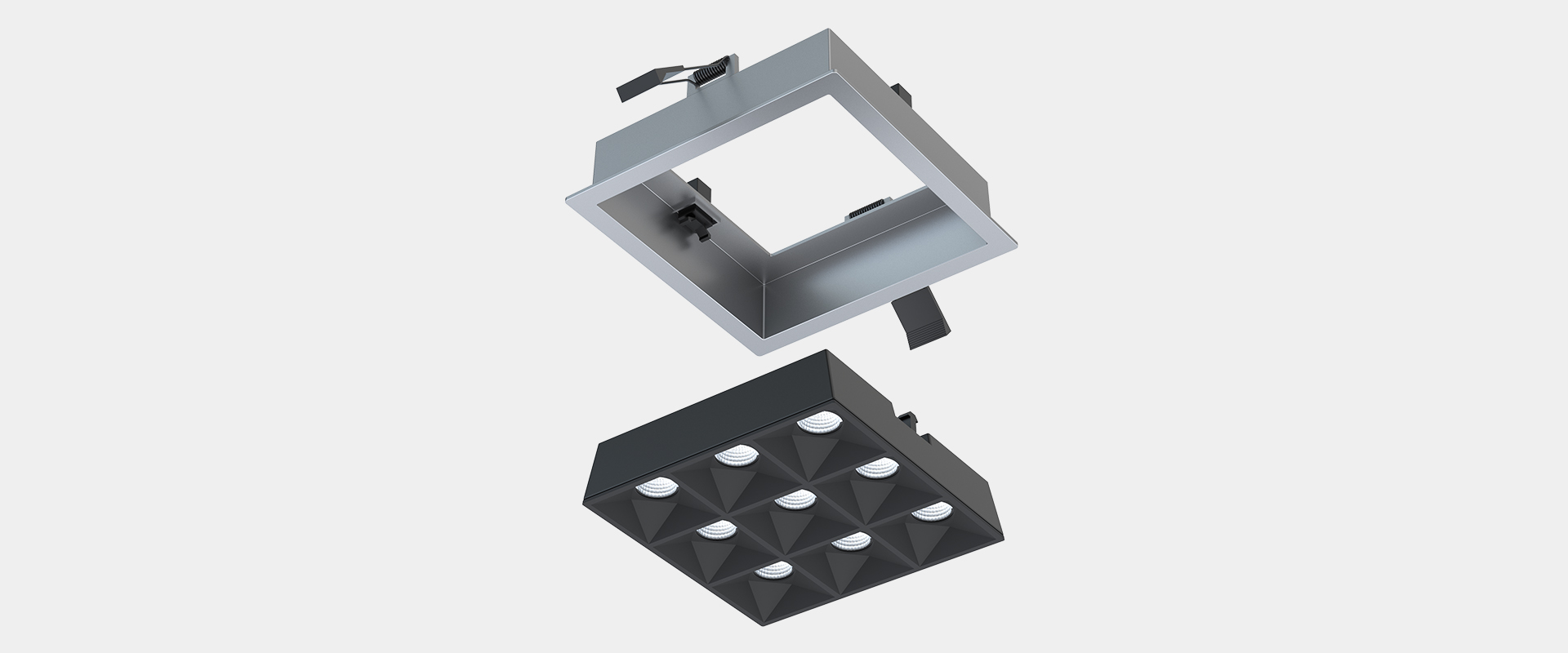

Collocated with micro refiector and anti-glare cover, it can realize 35°/65° beam angle and perfect light cutoff. UGR value is as low as 15. Adopting structure of trimed design, independent led modules and push-in & push-out structure, lamp is easy for installation and maintenance. Main material includes ADC12 and PC.

Typical value of light efficiency is 110lm/w, and lighting is of fiicker free. Lamp supports 1-10V and DALI dimming. Collocated with CASAMBI wireless system, dimming and tunable white can be realized. Adopting trimed and recessed installation.

TECHNICAL DATA
System power: 8 W / 18 W
Luminous flux of luminaire: 850lm / 1900 lm
Colour temperature: 3000 K / 4000 K
UGR: <14(35°) / <17(65°)
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20

Item NO.	Length	System Power	Surface Finish	Colour temperature	Dimming	Beam Angle	Downloads
24.002.34072	141 mm	18W	Silver	4000K	DALI	65°	PDF IM IES LDT SIZE
24.002.33071	141 mm	18W	Silver	3000K	DALI	65°	PDF IM IES LDT SIZE
24.002.24070	141 mm	18W	White	4000K	DALI	65°	PDF IM IES LDT SIZE
24.002.23069	141 mm	18W	White	3000K	DALI	65°	PDF IM IES LDT SIZE
24.002.14068	141 mm	18W	Black	4000K	DALI	65°	PDF IM IES LDT SIZE
24.002.13067	141 mm	18W	Black	3000K	DALI	65°	PDF IM IES LDT SIZE
24.002.34066	141 mm	18W	Silver	4000K	1-10V	65°	PDF IM IES LDT SIZE
24.002.23065	141 mm	18W	Silver	3000K	1-10V	65°	PDF IM IES LDT SIZE
24.002.24064	141 mm	18W	White	4000K	1-10V	65°	PDF IM IES LDT SIZE
24.002.23063	141 mm	18W	White	3000K	1-10V	65°	PDF IM IES LDT SIZE
24.002.14062	141 mm	18W	Black	4000K	1-10V	65°	PDF IM IES LDT SIZE
24.002.13061	141 mm	18W	Black	3000K	1-10V	65°	PDF IM IES LDT SIZE
24.002.34060	141 mm	18W	Silver	4000K	None	65°	PDF IM IES LDT SIZE
24.002.33059	141 mm	18W	Silver	3000K	None	65°	PDF IM IES LDT SIZE
24.002.24058	141 mm	18W	White	4000K	None	65°	PDF IM IES LDT SIZE
24.002.23057	141 mm	18W	White	3000K	None	65°	PDF IM IES LDT SIZE
24.002.14056	141 mm	18W	Black	4000K	None	65°	PDF IM IES LDT SIZE
24.002.13055	141 mm	18W	Black	3000K	None	65°	PDF IM IES LDT SIZE
24.002.34054	141 mm	8W	Silver	4000K	DALI	65°	PDF IM IES LDT SIZE
24.002.33053	141 mm	8W	Silver	3000K	DALI	65°	PDF IM IES LDT SIZE
24.002.24052	141 mm	8W	White	4000K	DALI	65°	PDF IM IES LDT SIZE
24.002.21051	141 mm	8W	White	3000K	DALI	65°	PDF IM IES LDT SIZE
24.002.14050	141 mm	8W	Black	4000K	DALI	65°	PDF IM IES LDT SIZE
24.002.13049	141 mm	8W	Black	3000K	DALI	65°	PDF IM IES LDT SIZE
24.002.34048	141 mm	8W	Silver	4000K	1-10V	65°	PDF IM IES LDT SIZE
24.002.33047	141 mm	8W	Silver	3000K	1-10V	65°	PDF IM IES LDT SIZE
24.002.24046	141 mm	8W	White	4000K	1-10V	65°	PDF IM IES LDT SIZE
24.002.23045	141 mm	8W	White	3000K	1-10V	65°	PDF IM IES LDT SIZE
24.002.14044	141 mm	8W	Black	4000K	1-10V	65°	PDF IM IES LDT SIZE
24.002.13043	141 mm	8W	Black	3000K	1-10V	65°	PDF IM IES LDT SIZE
24.002.34042	141 mm	8W	Silver	4000K	None	65°	PDF IM IES LDT SIZE
24.002.33041	141 mm	8W	Silver	3000K	None	65°	PDF IM IES LDT SIZE
24.002.24040	141 mm	8W	White	4000K	None	65°	PDF IM IES LDT SIZE
24.002.23039	141 mm	8W	White	3000K	None	65°	PDF IM IES LDT SIZE
24.002.14038	141 mm	8W	Black	4000K	None	65°	PDF IM IES LDT SIZE
24.002.13037	141 mm	8W	Black	3000K	None	65°	PDF IM IES LDT SIZE
24.002.34036	141 mm	18W	Silver	4000K	DALI	35°	PDF IM IES LDT SIZE
24.002.33035	141 mm	18W	Silver	3000K	DALI	35°	PDF IM IES LDT SIZE
24.002.24034	141 mm	18W	White	4000K	DALI	35°	PDF IM IES LDT SIZE
24.002.23033	141 mm	18W	White	3000K	DALI	35°	PDF IM IES LDT SIZE
24.002.14032	141 mm	18W	Black	4000K	DALI	35°	PDF IM IES LDT SIZE
24.002.13031	141 mm	18W	Black	3000K	DALI	35°	PDF IM IES LDT SIZE
24.002.34030	141 mm	18W	Silver	4000K	1-10V	35°	PDF IM IES LDT SIZE
24.002.33029	141 mm	18W	Silver	3000K	1-10V	35°	PDF IM IES LDT SIZE
24.002.24028	141 mm	18W	White	4000K	1-10V	35°	PDF IM IES LDT SIZE
24.002.23027	141 mm	18W	White	3000K	1-10V	35°	PDF IM IES LDT SIZE
24.002.14026	141 mm	18W	Black	4000K	1-10V	35°	PDF IM IES LDT SIZE
24.002.13025	141 mm	18W	Black	3000K	1-10V	35°	PDF IM IES LDT SIZE
24.002.34024	141 mm	18W	Silver	4000K	None	35°	PDF IM IES LDT SIZE
24.002.33023	141 mm	18W	Silver	3000K	None	35°	PDF IM IES LDT SIZE
24.002.24022	141 mm	18W	White	4000K	None	35°	PDF IM IES LDT SIZE
24.002.23021	141 mm	18W	White	3000K	None	35°	PDF IM IES LDT SIZE
24.002.14020	141 mm	18W	Black	4000K	None	35°	PDF IM IES LDT SIZE
24.002.13019	141 mm	18W	Black	3000K	None	35°	PDF IM IES LDT SIZE
24.002.34018	141 mm	8W	Silver	4000K	DALI	35°	PDF IM IES LDT SIZE
24.002.33017	141 mm	8W	Silver	3000K	DALI	35°	PDF IM IES LDT SIZE
24.002.24016	141 mm	8W	White	4000K	DALI	35°	PDF IM IES LDT SIZE
24.002.23015	141 mm	8W	White	3000K	DALI	35°	PDF IM IES LDT SIZE
24.002.14014	141 mm	8W	Black	4000K	DALI	35°	PDF IM IES LDT SIZE
24.002.13013	141 mm	8W	Black	3000K	DALI	35°	PDF IM IES LDT SIZE
24.002.34012	141 mm	8W	Silver	4000K	1-10V	35°	PDF IM IES LDT SIZE
24.002.33011	141 mm	8W	Silver	3000K	1-10V	35°	PDF IM IES LDT SIZE
24.002.24010	141 mm	8W	White	4000K	1-10V	35°	PDF IM IES LDT SIZE
24.002.23009	141 mm	8W	White	3000K	1-10V	35°	PDF IM IES LDT SIZE
24.002.14008	141 mm	8W	Black	4000K	1-10V	35°	PDF IM IES LDT SIZE
24.002.13007	141 mm	8W	Black	3000K	1-10V	35°	PDF IM IES LDT SIZE
24.002.34006	141 mm	8W	Silver	4000K	None	35°	PDF IM IES LDT SIZE
24.002.33005	141 mm	8W	Silver	3000K	None	35°	PDF IM IES LDT SIZE
24.002.24004	141 mm	8W	White	4000K	None	35°	PDF IM IES LDT SIZE
24.002.23003	141 mm	8W	White	3000K	None	35°	PDF IM IES LDT SIZE
24.002.14002	141 mm	8W	Black	4000K	None	35°	PDF IM IES LDT SIZE
24.002.13001	141 mm	8W	Black	3000K	None	35°	PDF IM IES LDT SIZE
