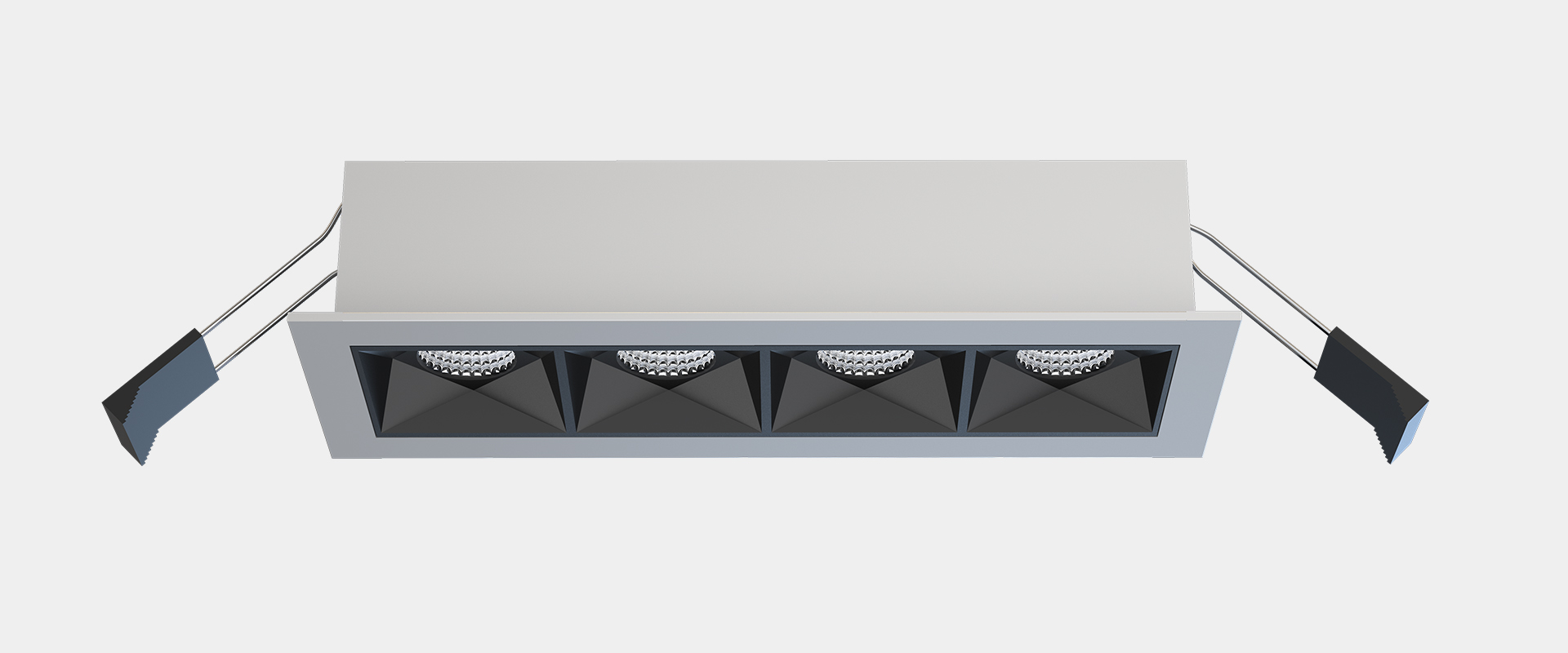

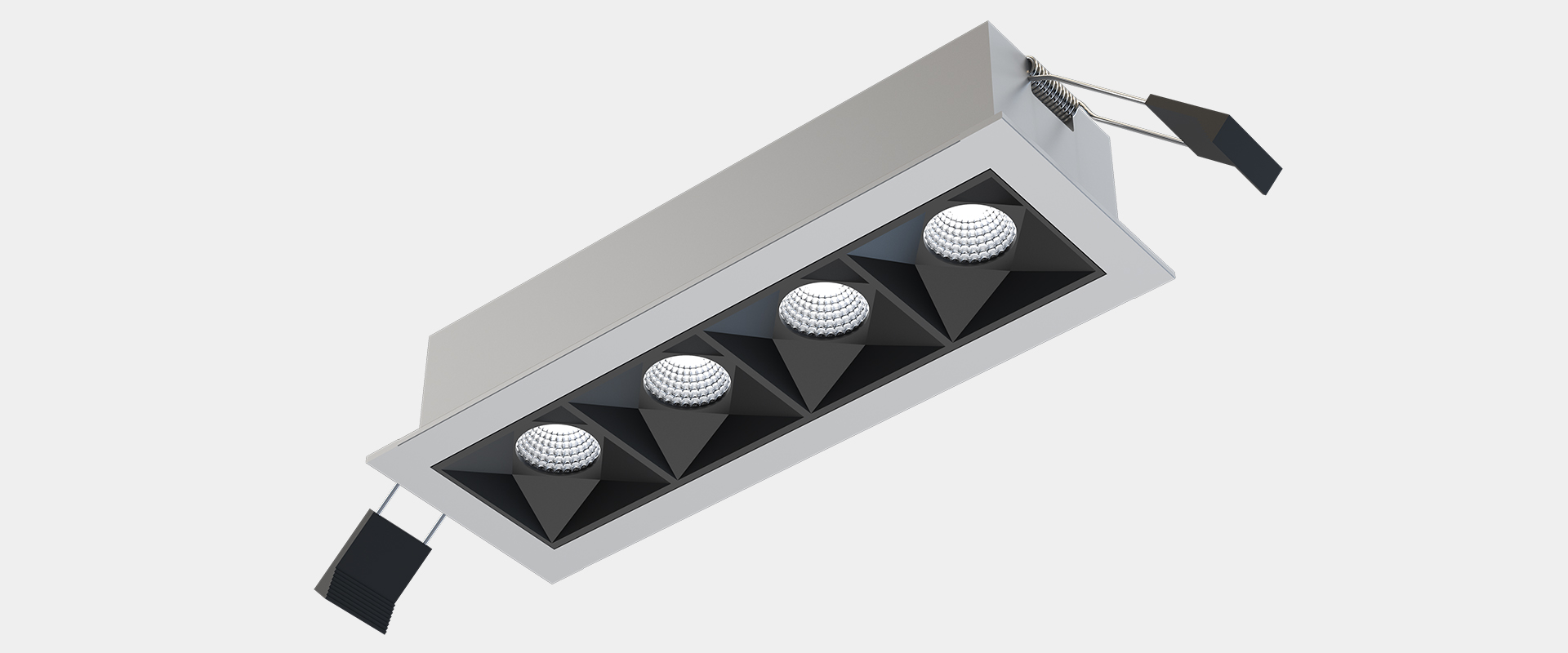

Siv-D4
With extremely simple design and excellent craftwork, exquisite appearance looks with rich of texture.

Collocated with micro refiector and anti-glare cover, it can realize55°beam angle and perfect light cutoff. UGR value is as low as 18.

lamp is easy for installation and maintenance.Main material includes aluminum profile and PC. Typical value of light efficiency is 120lm/w, and lighting is of fiicker free. Lamp supports 1-10V and DALI dimming.

TECHNICAL DATA
System power: 6 W
Luminous flux of luminaire: 778 lm
Colour temperature: 3000 K / 4000 K
UGR: <18
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • Length

    182 mm

  • System Power

    6W

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K

  • UGR

    <18

  • Dimming

    None 1-10V DALI
Item NO.LengthSystem PowerSurface FinishColour temperatureUGRDimmingDownloads
24.003.34018182 mm6WSilver4000K<18DALIPDFIMIESLDTSIZE
24.003.33017182 mm6WSilver3000K<18DALIPDFIMIESLDTSIZE
24.003.24016182 mm6WWhite4000K<18DALIPDFIMIESLDTSIZE
24.003.23015182 mm6WWhite3000K<18DALIPDFIMIESLDTSIZE
24.003.14014182 mm6WBlack4000K<18DALIPDFIMIESLDTSIZE
24.003.13013182 mm6WBlack3000K<18DALIPDFIMIESLDTSIZE
24.003.34012182 mm6WSilver4000K<181-10VPDFIMIESLDTSIZE
24.003.33011182 mm6WSilver3000K<181-10VPDFIMIESLDTSIZE
24.003.24010182 mm6WWhite4000K<181-10VPDFIMIESLDTSIZE
24.003.23009182 mm6WWhite3000K<181-10VPDFIMIESLDTSIZE
24.003.14008182 mm6WBlack4000K<181-10VPDFIMIESLDTSIZE
24.003.13007182 mm6WBlack3000K<181-10VPDFIMIESLDTSIZE
24.003.34006182 mm6WSilver4000K<18NonePDFIMIESLDTSIZE
24.003.33005182 mm6WSilver3000K<18NonePDFIMIESLDTSIZE
24.003.24004182 mm6WWhite4000K<18NonePDFIMIESLDTSIZE
24.003.23003182 mm6WWhite3000K<18NonePDFIMIESLDTSIZE
24.003.14002182 mm6WBlack4000K<18NonePDFIMIESLDTSIZE
24.003.13001182 mm6WBlack3000K<18NonePDFIMIESLDTSIZE
