Baldur-P_PENDANT-light artisan

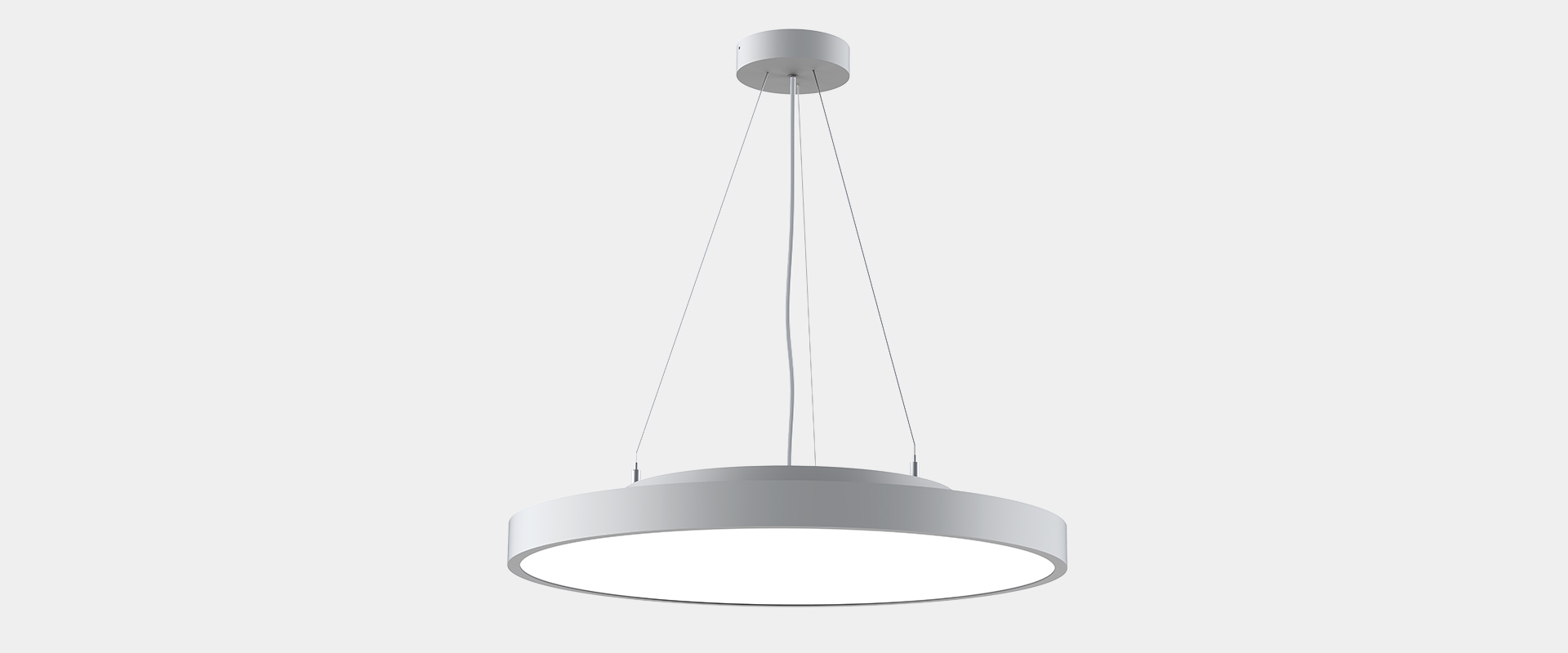

Baldur-P
Simple, classic design with excellent craftwork. Appearance with rich texture. Extremely saving installation and maintenance time by revolutionary surface mounted structure.

We offer 350MM,450MM,600MM,900MM for choosing. We use special anti-glare cover, UGR<18 with comfortable and soft lights for Direct 70% &Indirect 30%. Typical value up to 110lm/W with fiicker freely. Support smart functions like Motion sensor, 1-10V and Dali dimming, Tunable white and Emergency function.Work with CASAMBI wireless system to support group setting.

Simply assembling structure, fiexible to support customers’ requirement. Profile aluminum, SGCC, and PC as main materials. Suspension installation. Pole suspension and Steel wire suspension for choosing.

TECHNICAL DATA
System power: 18 W / 30 W / 48 W / 80 W
Luminous flux of luminaire: 1700 lm / 3100 lm / 5250 lm / 9000 lm
Colour temperature: 3000 K / 4000 K
UGR: <15
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20

Item NO.	Diameter	System Power	Surface Finish	Colour temperature	Dimming	Cover	Downloads
22.006.34072	900 mm	80W	Silver	4000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.33071	900 mm	80W	Silver	3000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.24070	900 mm	80W	White	4000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.23069	900 mm	80W	White	3000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.14068	900 mm	80W	Black	4000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.13067	900 mm	80W	Black	3000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.34066	900 mm	80W	Silver	4000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.33065	900 mm	80W	Silver	3000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.24064	900 mm	80W	White	4000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.33063	900 mm	80W	White	3000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.14062	900 mm	80W	Black	4000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.13061	900 mm	80W	Black	3000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.34060	900 mm	80W	Silver	4000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.33059	900 mm	80W	Silver	3000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.24058	900 mm	80W	White	4000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.23057	900 mm	80W	White	3000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.14056	900 mm	80W	Black	4000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.13055	900 mm	80W	Black	3000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.34054	600 mm	48W	Silver	4000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.33053	600 mm	48W	Silver	3000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.24052	600 mm	48W	White	4000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.23051	600 mm	48W	White	3000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.14050	600 mm	48W	Black	4000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.13049	600 mm	48W	Black	3000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.34048	600 mm	48W	Silver	4000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.33047	600 mm	48W	Silver	3000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.24046	600 mm	48W	White	4000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.23045	600 mm	48W	White	3000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.14044	600 mm	48W	Black	4000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.13043	600 mm	48W	Black	3000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.34042	600 mm	48W	Silver	4000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.33041	600 mm	48W	Silver	3000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.24040	600 mm	48W	White	4000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.23039	600 mm	48W	White	3000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.14038	600 mm	48W	Black	4000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.13037	600 mm	48W	Black	3000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.34036	450 mm	30W	Silver	4000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.33035	450 mm	30W	Silver	3000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.24034	450 mm	30W	White	4000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.23033	450 mm	30W	White	3000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.14032	450 mm	30W	Black	4000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.13031	450 mm	30W	Black	3000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.34030	450 mm	30W	Silver	4000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.33029	450 mm	30W	Silver	3000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.24028	450 mm	30W	White	4000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.23027	450 mm	30W	White	3000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.14026	450 mm	30W	Black	4000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.13025	450 mm	30W	Black	3000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.34024	450 mm	30W	Silver	4000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.33023	450 mm	30W	Silver	3000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.24022	450 mm	30W	White	4000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.23021	450 mm	30W	White	3000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.14020	450 mm	30W	Black	4000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.13019	450 mm	30W	Black	3000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.34018	350 mm	18W	Silver	4000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.33017	350 mm	18W	Silver	3000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.24016	350 mm	18W	White	4000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.23015	350 mm	18W	White	3000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.14014	350 mm	18W	Black	4000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.13013	350 mm	18W	Black	3000K	DALI	Microprismatic	PDF IM IES LDT SIZE
22.006.34012	350 mm	18W	Silver	4000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.33011	350 mm	18W	Silver	3000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.24010	350 mm	18W	White	4000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.23009	350 mm	18W	White	3000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.14008	350 mm	18W	Black	4000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.13007	350 mm	18W	Black	3000K	1-10V	Microprismatic	PDF IM IES LDT SIZE
22.006.34006	350 mm	18W	Silver	4000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.33005	350 mm	18W	Silver	3000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.24004	350 mm	18W	White	4000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.23003	350 mm	18W	White	3000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.14002	350 mm	18W	Black	4000K	None	Microprismatic	PDF IM IES LDT SIZE
22.006.13001	350 mm	18W	Black	3000K	None	Microprismatic	PDF IM IES LDT SIZE
