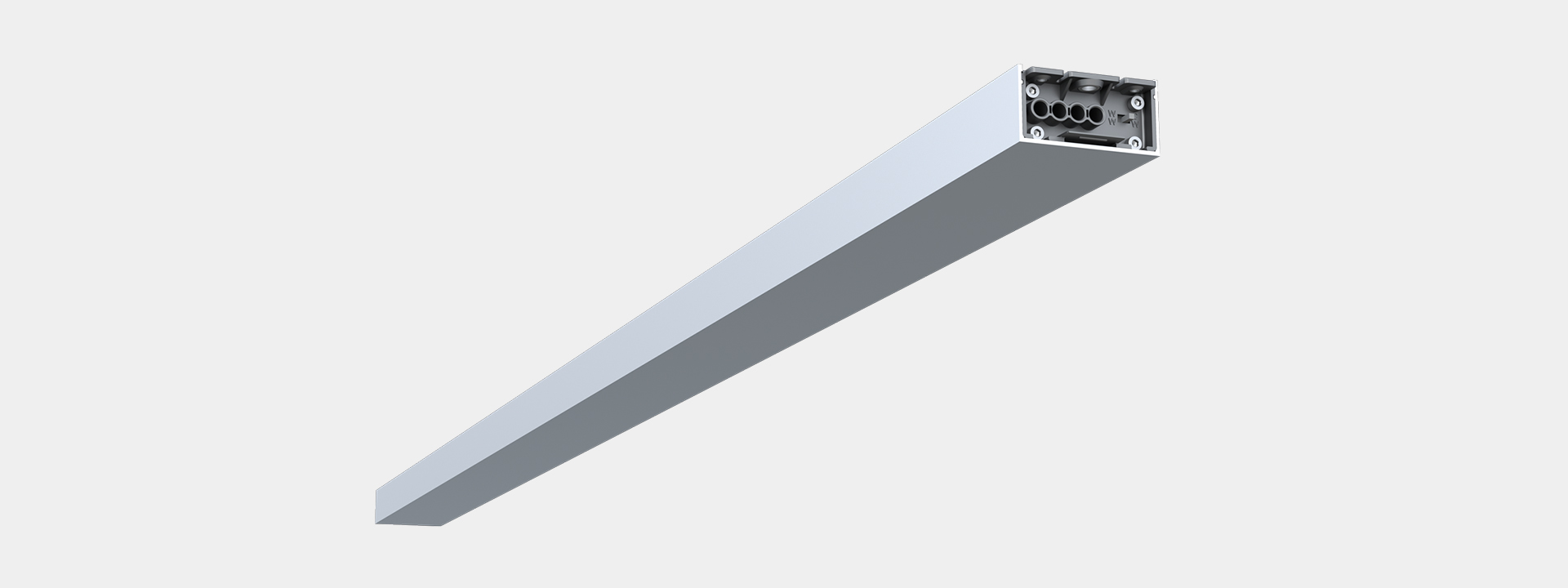

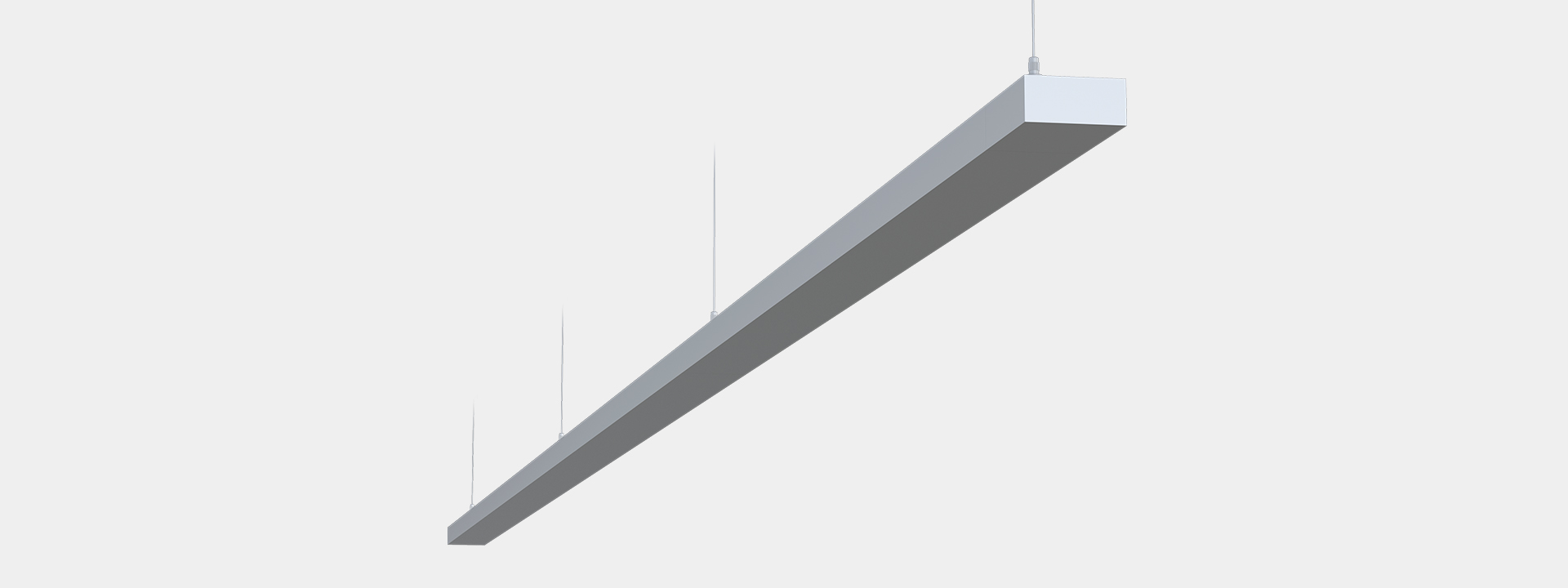

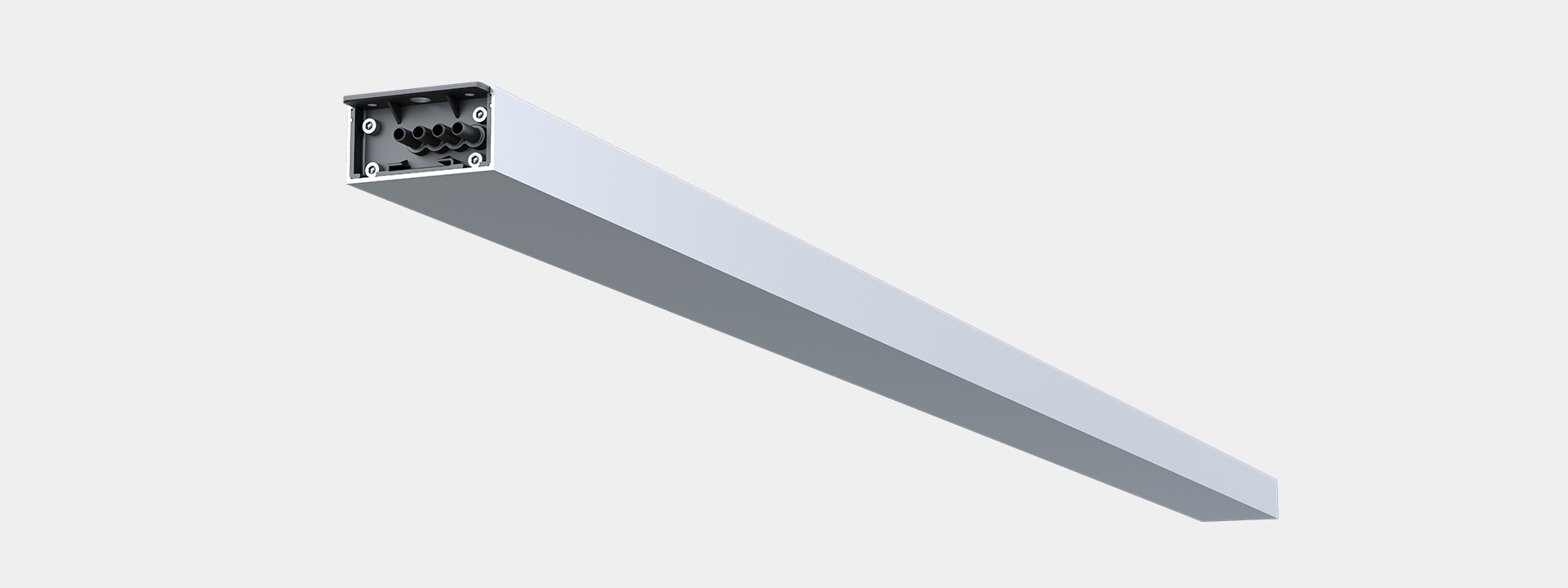

Budle

Budle is a specially designed luminaire and composite application system for the corridors of office space, providing uniform, comfortable and non-glare lighting performance. The lamp only outputs large-angle polarized indirect light, from the ceiling 25CM spacing can achieve 1.5 meters of uniform irradiation of the corridor ceiling, which is a good solution to solve the pain of uneven distribution of corridor light offered by spotlights, down-lights or other lamps.

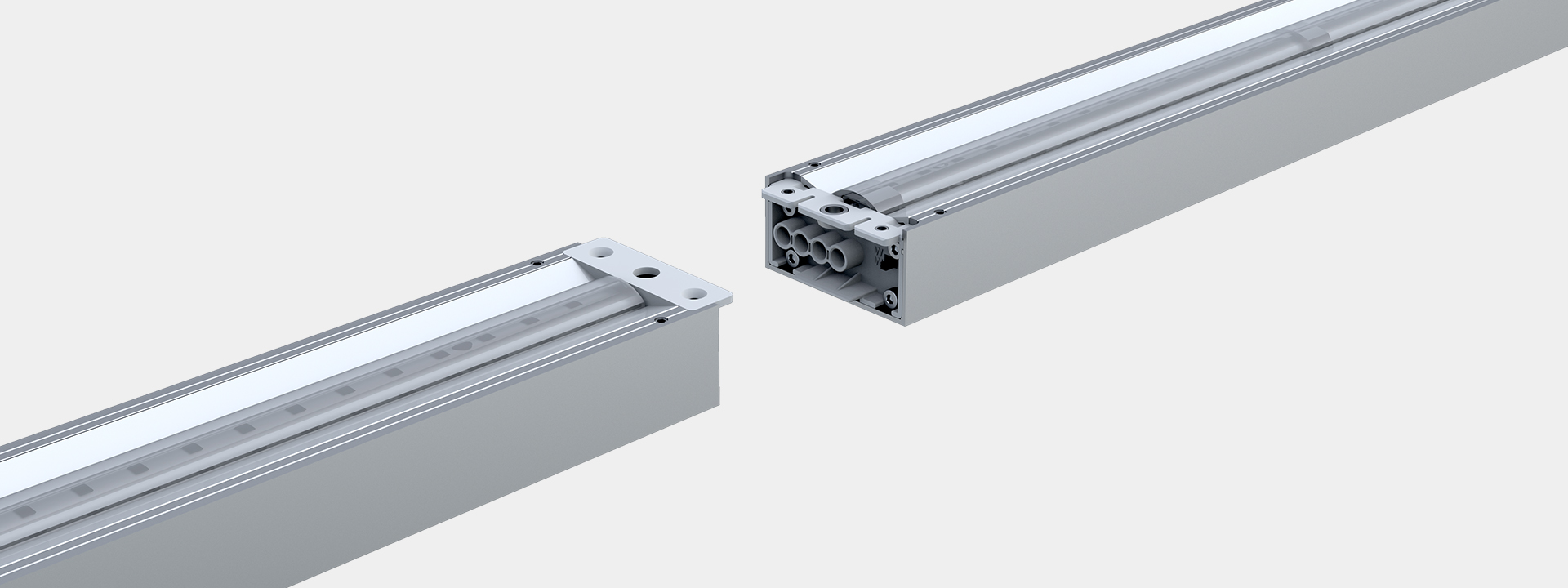

The lamp adopts a new link-able design which can be directly inserted torealize the connection installation between fixtures,very simple and reliable. Peco has a very clean design, perfect technical details and rich texture. With aluminum 6063 housing and high quality powder coating surface finish,48V DC power supply, built-in constant current control unit and motion sensor (optional). The lamp supports motion sensor function.

Suitable for corridors applications at office space or other commercial space.

TECHNICAL DATA
System power: 10 W
Luminous flux of luminaire: 1000 lm
Colour temperature: 3000 K / 4000 K
UGR: <6
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options
  • System Power

    10W
  • Surface Finish

    Black White Silver
  • Colour temperature

    3000K 4000K
  • Sensor

    None Motion sensor
  • UGR

    <6
  • Beam Angle

    ↑160°
Item NO.System PowerSurface FinishColour temperatureSensorUGRBeam AngleDownloads
22.004.3401210WSilver4000KMotion sensor<6↑160°PDFIMIESLDTSIZE
22.004.3301110WSilver3000KMotion sensor<6↑160°PDFIMIESLDTSIZE
22.004.2401010WWhite4000KMotion sensor<6↑160°PDFIMIESLDTSIZE
22.004.2300910WWhite3000KMotion sensor<6↑160°PDFIMIESLDTSIZE
22.004.1400810WBlack4000KMotion sensor<6↑160°PDFIMIESLDTSIZE
22.004.1300710WBlack3000KMotion sensor<6↑160°PDFIMIESLDTSIZE
22.004.3400610WSilver4000KNone<6↑160°PDFIMIESLDTSIZE
22.004.3300510WSilver3000KNone<6↑160°PDFIMIESLDTSIZE
22.004.2400410WWhite4000KNone<6↑160°PDFIMIESLDTSIZE
22.004.2300310WWhite3000KNone<6↑160°PDFIMIESLDTSIZE
22.004.1400210WBlack4000KNone<6↑160°PDFIMIESLDTSIZE
22.004.1300110WBlack3000KNone<6↑160°PDFIMIESLDTSIZE
