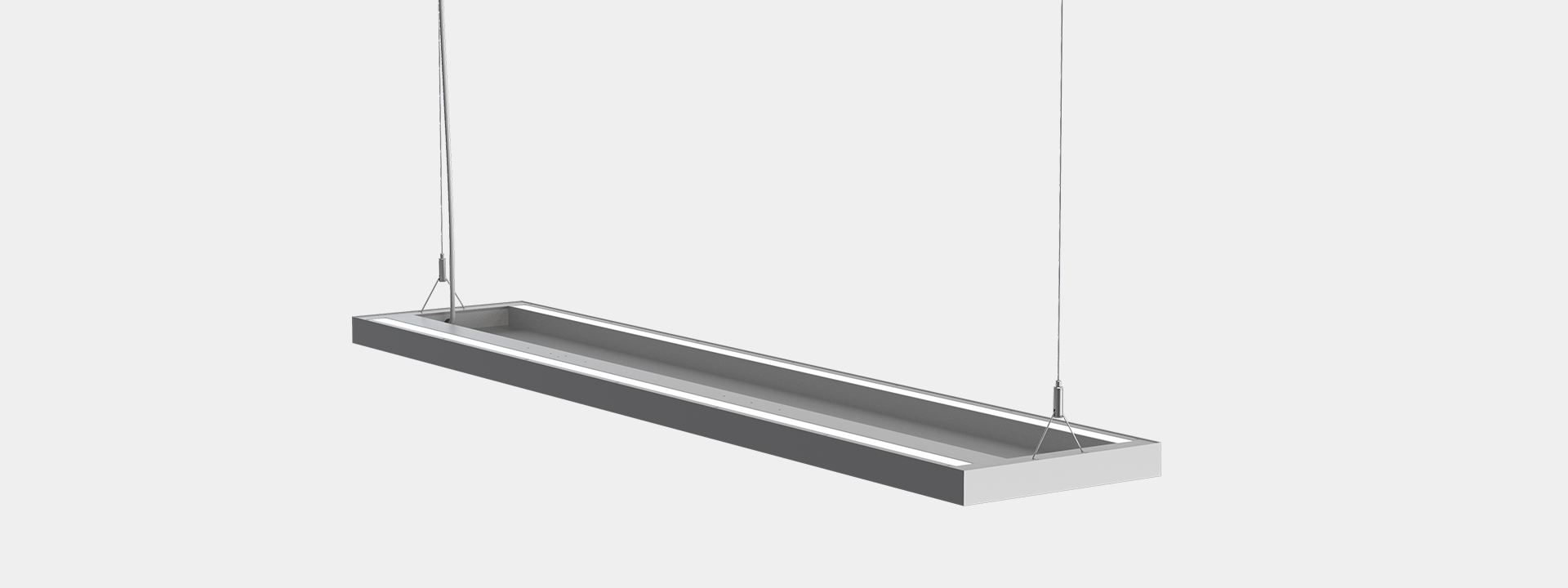

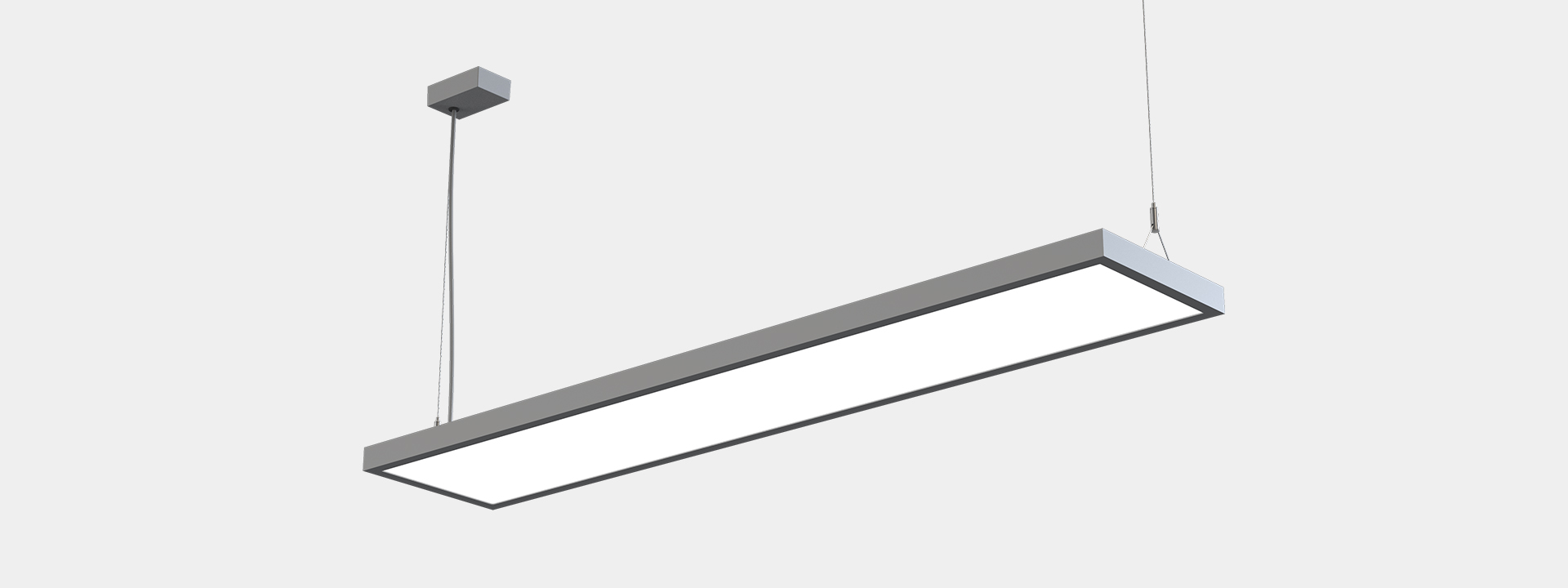

Ymer-P

The Ymer-P come with minimalist design, excellent material selection and production technology, exquisite appearance, and rich texture.

The direct light adopts a diffusion plate with microprism structure to realizeanti-glare function.

Typicallight efficiency125LM/W, flicker free,60% DIRECT / 40% INDIRECT lighting.

Suspended installation, very simple and convenient.

It can realize 0-10V or DALI synchronous dimming ,and even support wireless control systems such as CASAMBI.

TECHNICAL DATA
System power: 50 W / 60 W
Luminous flux of luminaire: 6350 lm / 7620lm
Colour temperature: 3000 K / 4000 K
UGR: <19
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • System Power

    50W 60W

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K

  • Dimming

    None 1-10V DALI

  • Length

    1200 mm 1500 mm

  • Cover

    Microprismatic
Item NO.System PowerSurface FinishColour temperatureDimmingLengthCoverDownloads
22.002.3403660WSilver4000KDALI1500 mmMicroprismaticPDFIMIESLDTSIZE
22.002.3303560WSilver3000KDALI1500 mmMicroprismaticPDFIMIESLDTSIZE
22.002.2403460WWhite4000KDALI1500 mmMicroprismaticPDFIMIESLDTSIZE
22.002.2303360WWhite3000KDALI1500 mmMicroprismaticPDFIMIESLDTSIZE
22.002.1403260WBlack4000KDALI1500 mmMicroprismaticPDFIMIESLDTSIZE
22.002.1303160WBlack3000KDALI1500 mmMicroprismaticPDFIMIESLDTSIZE
22.002.3403060WSilver4000K1-10V1500 mmMicroprismaticPDFIMIESLDTSIZE
22.002.3302960WSilver3000K1-10V1500 mmMicroprismaticPDFIMIESLDTSIZE
22.002.2402860WWhite4000K1-10V1500 mmMicroprismaticPDFIMIESLDTSIZE
22.002.2302760WWhite3000K1-10V1500 mmMicroprismaticPDFIMIESLDTSIZE
22.002.1402660WBlack3000K1-10V1500 mmMicroprismaticPDFIMIESLDTSIZE
22.002.1302560WBlack3000K1-10V1500 mmMicroprismaticPDFIMIESLDTSIZE
22.002.3402460WSilver4000KNone1500 mmMicroprismaticPDFIMIESLDTSIZE
22.002.3302360WSilver3000KNone1500 mmMicroprismaticPDFIMIESLDTSIZE
22.002.2402260WWhite4000KNone1500 mmMicroprismaticPDFIMIESLDTSIZE
22.002.2302160WWhite3000KNone1500 mmMicroprismaticPDFIMIESLDTSIZE
22.002.1402060WBlack4000KNone1500 mmMicroprismaticPDFIMIESLDTSIZE
22.002.1301960WBlack3000KNone1500 mmMicroprismaticPDFIMIESLDTSIZE
22.002.3401850WSilver4000KDALI1200 mmMicroprismaticPDFIMIESLDTSIZE
22.002.3301750WSilver3000KDALI1200 mmMicroprismaticPDFIMIESLDTSIZE
22.002.2401650WWhite4000KDALI1200 mmMicroprismaticPDFIMIESLDTSIZE
22.002.2301550WWhite3000KDALI1200 mmMicroprismaticPDFIMIESLDTSIZE
22.002.1401450WBlack4000KDALI1200 mmMicroprismaticPDFIMIESLDTSIZE
22.002.1301350WBlack3000KDALI1200 mmMicroprismaticPDFIMIESLDTSIZE
22.002.3401250WSilver4000K1-10V1200 mmMicroprismaticPDFIMIESLDTSIZE
22.002.3301150WSilver3000K1-10V1200 mmMicroprismaticPDFIMIESLDTSIZE
22.002.2401050WWhite4000K1-10V1200 mmMicroprismaticPDFIMIESLDTSIZE
22.002.2300950WWhite3000K1-10V1200 mmMicroprismaticPDFIMIESLDTSIZE
22.002.1400850WBlack4000K1-10V1200 mmMicroprismaticPDFIMIESLDTSIZE
22.002.1300750WBlack3000K1-10V1200 mmMicroprismaticPDFIMIESLDTSIZE
22.002.3400650WSilver4000KNone1200 mmMicroprismaticPDFIMIESLDTSIZE
22.002.3300550WSilver3000KNone1200 mmMicroprismaticPDFIMIESLDTSIZE
22.002.2400450WWhite4000KNone1200 mmMicroprismaticPDFIMIESLDTSIZE
22.002.2300350WWhite3000KNone1200 mmMicroprismaticPDFIMIESLDTSIZE
22.002.1400250WBlack4000KNone1200 mmMicroprismaticPDFIMIESLDTSIZE
22.002.1300150WBlack3000KNone1200 mmMicroprismaticPDFIMIESLDTSIZE
