Tjatse-C

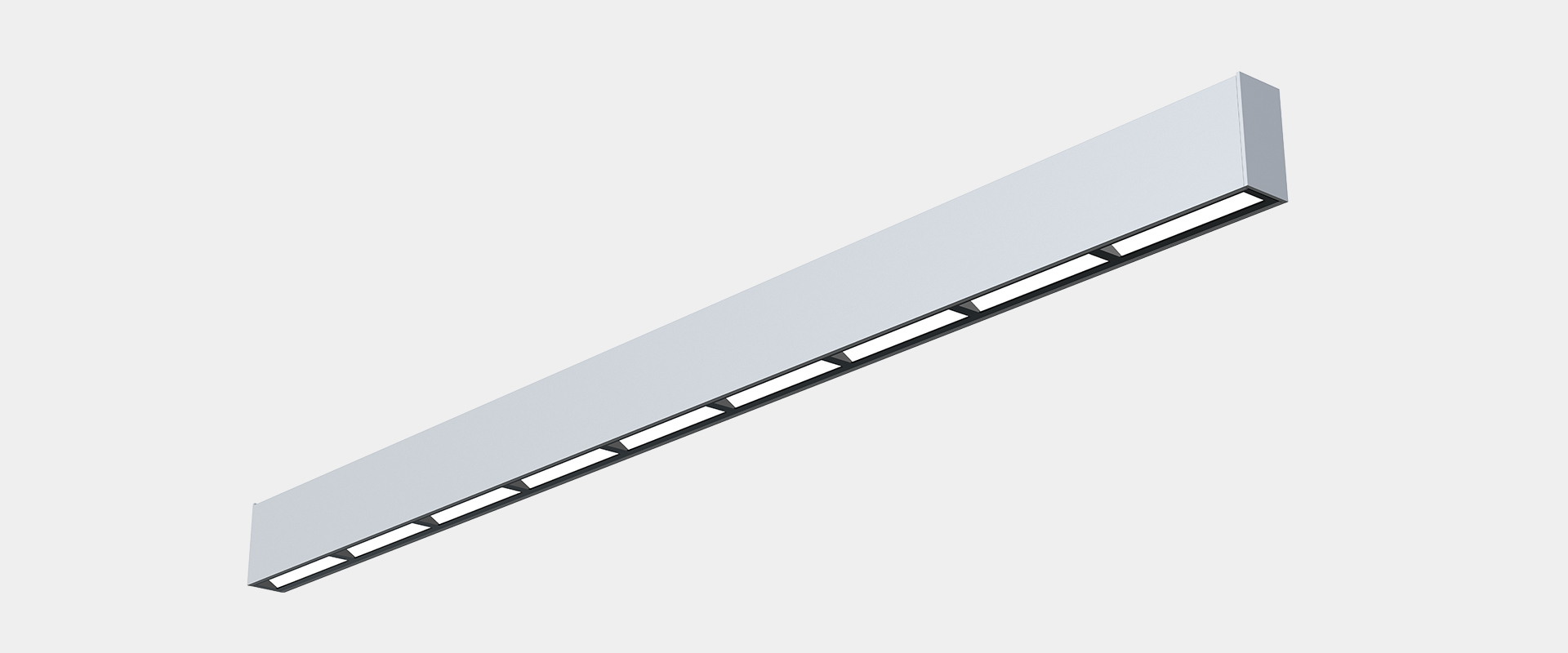

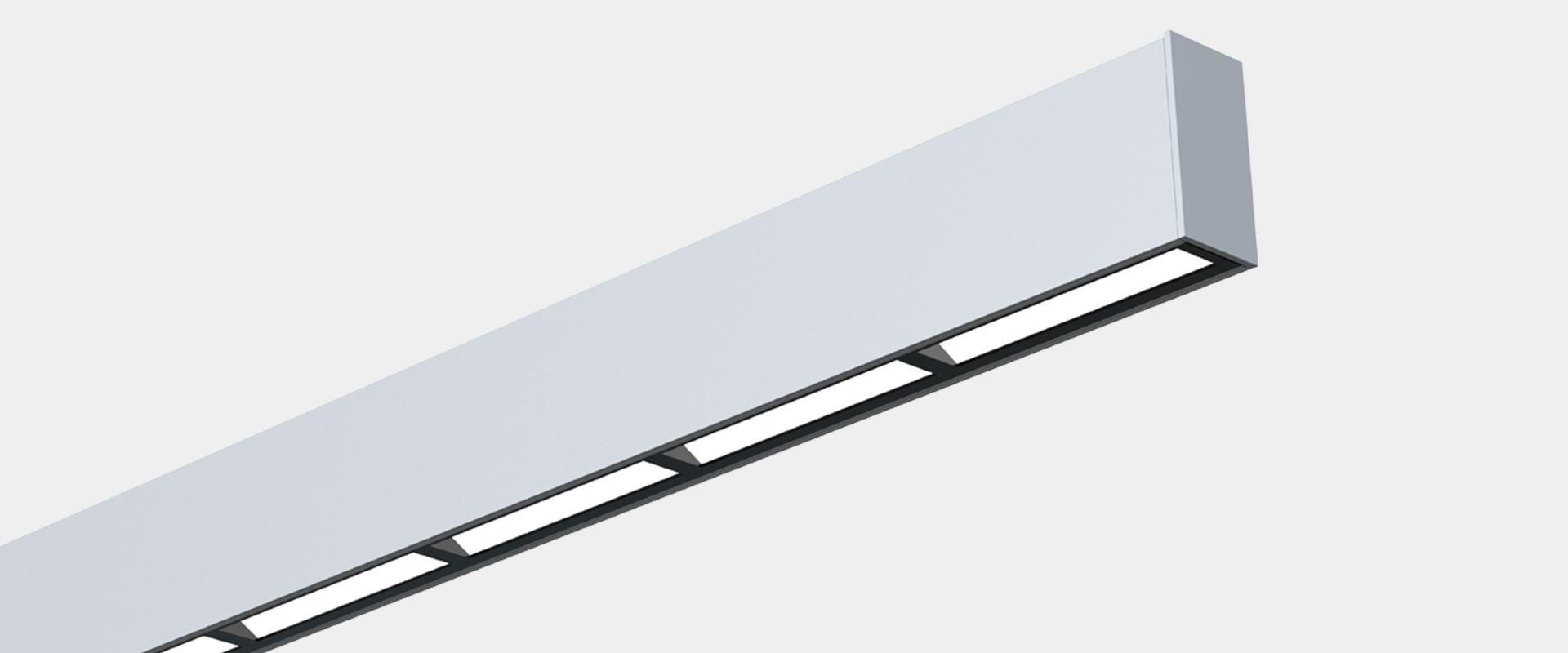

Tjatse-C is designed with polarizing optical design by using a unique module. Compared with other similar products, it can achieve higher uniformity lighting effect for 3 meter's wall based on a 60cm distance from the wall.

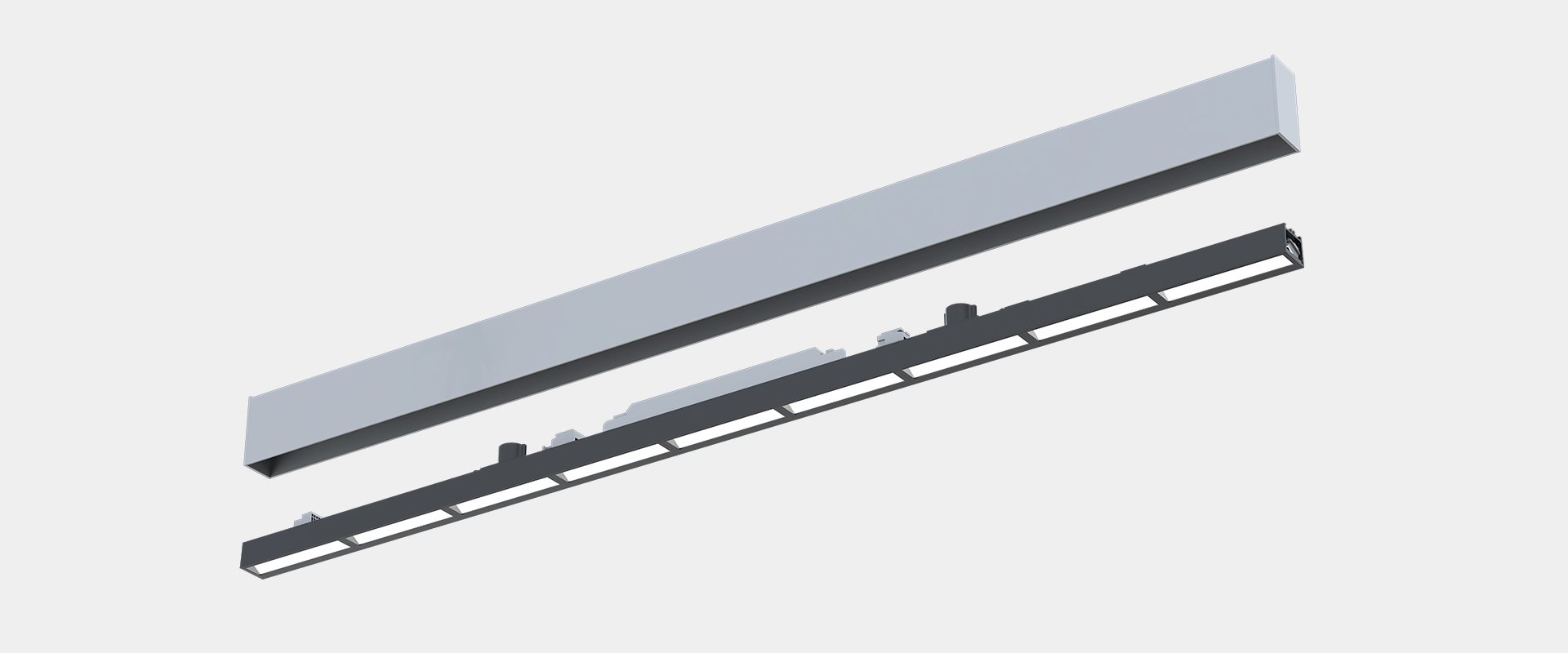

Adopting push-in & push-out structure,the frame and LED engine are installed separately. Very easy, convenient and efficient for installation and maintenance. With male and female connectors inside the lamp engine and linkable kits inside the package,it can realized linkable connection perfectly.

30W in total, typical value of light efficiency is 100lm/w. It can realize 1-10V or DALI synchronous dimming ,and even support wireless control systems such as CASAMBI,HCL. Widely used for any clean wall in the office area where needs compensation light, and can also be used as a main lighting fixture for a small non-working aisle space. It provides high quality, comfortable and low glare light environment for each space.

TECHNICAL DATA
System power: 30 W
Luminous flux of luminaire: 2800 lm
Colour temperature: 3000 K / 4000 K
UGR: <19
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • Length

    1204 mm

  • System Power

    30W

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K

  • UGR

    <19

  • Dimming

    None 1-10V DALI
Item NO.LengthSystem PowerSurface FinishColour temperatureUGRDimmingDownloads
23.002.340181204 mm30WSilver4000K<19DALIPDFIMIESLDTSIZE
23.002.330171204 mm30WSilver3000K<19DALIPDFIMIESLDTSIZE
23.002.240161204 mm30WWhite4000K<19DALIPDFIMIESLDTSIZE
23.002.230151204 mm30WWhite3000K<19DALIPDFIMIESLDTSIZE
23.002.140141204 mm30WBlack4000K<19DALIPDFIMIESLDTSIZE
23.002.130131204 mm30WBlack3000K<19DALIPDFIMIESLDTSIZE
23.002.340121204 mm30WSilver4000K<191-10VPDFIMIESLDTSIZE
23.002.330111204 mm30WSilver3000K<191-10VPDFIMIESLDTSIZE
23.002.240101204 mm30WWhite4000K<191-10VPDFIMIESLDTSIZE
23.002.230091204 mm30WSilver3000K<191-10VPDFIMIESLDTSIZE
23.002.140081204 mm30WBlack4000K<191-10VPDFIMIESLDTSIZE
23.002.130071204 mm30WBlack3000K<191-10VPDFIMIESLDTSIZE
23.002.340061204 mm30WSilver4000K<19NonePDFIMIESLDTSIZE
23.002.330051204 mm30WSilver3000K<19NonePDFIMIESLDTSIZE
23.002.240041204 mm30WWhite4000K<19NonePDFIMIESLDTSIZE
23.002.230031204 mm30WWhite3000K<19NonePDFIMIESLDTSIZE
23.002.140021204 mm30WBlack4000K<19NonePDFIMIESLDTSIZE
23.002.130011204 mm30WBlack3000K<19NonePDFIMIESLDTSIZE
