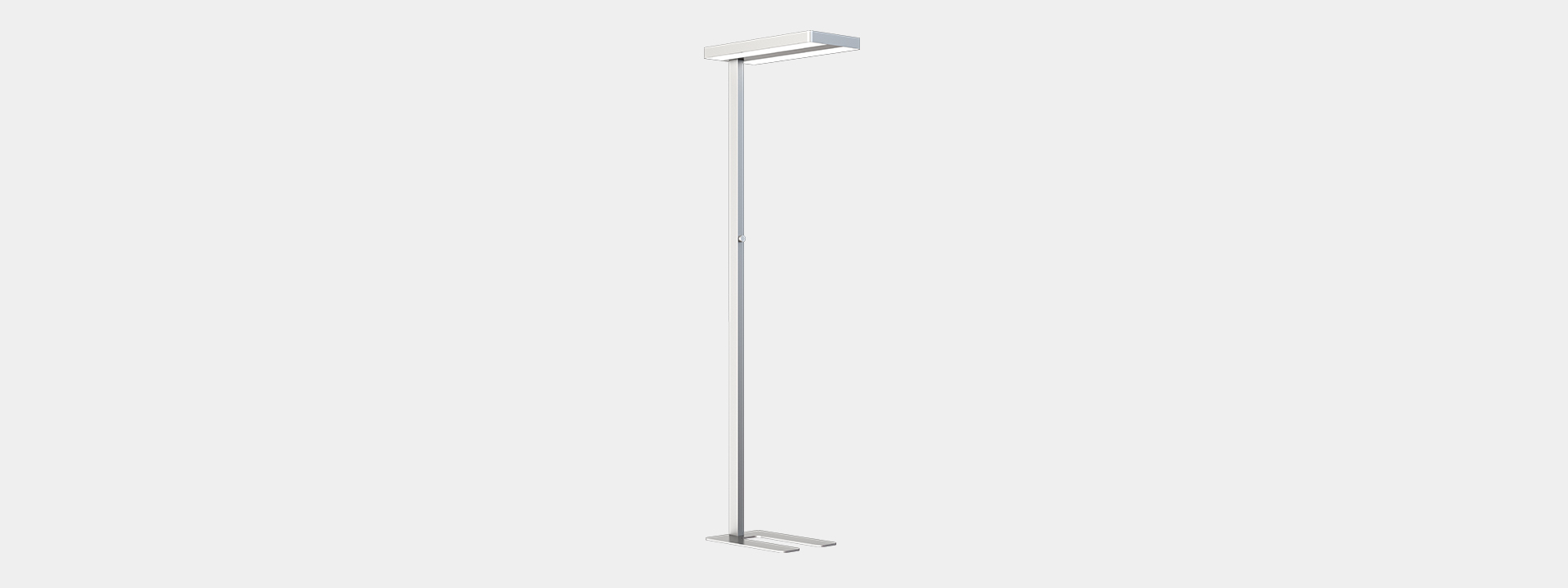

Thor-O

Inheriting classic design, round corner structure, perfect assembly detailsmakes exquisite appearance with rich texture.

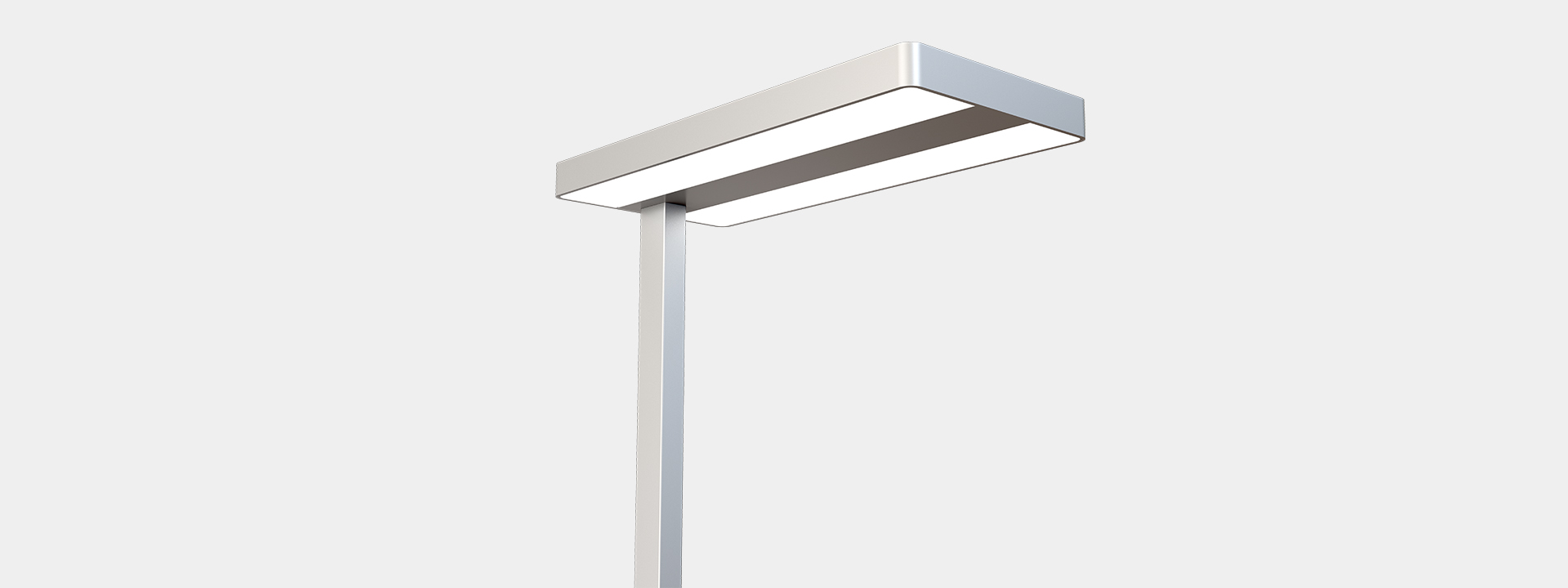

The product emits downwards and adopts a diffuser plate of a microprism structure to realize an anti-glare function, beam angle is about 90 degrees, the upward beam angle is 110 degrees.

DIY assembly, no need professionals, portable on the side of the desktop, easy installation, fiexible using.

Typical value is 110LM/W, fiicker free, KNOBdimming, 50% DIRECT / 50% INDIRECTsynchronous dimming control, and other intelligent control like motion sensor and day light sensor , etc.

The main materials are aluminum profiles, steel and PMMA. With Integrated structure pole.

TECHNICAL DATA
System power: 60 W / 80 W
Luminous flux of luminaire: 6600 lm / 8800lm
Colour temperature: 3000 K / 4000 K
UGR: <17
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • System Power

    60W 80W

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K

  • Beam Angle

    ↑110°/90°↓

  • Sensor

    None Motion sensor Daylight & Motion sensor

  • Cover

    Microprismatic
Item NO.System PowerSurface FinishColour temperatureBeam AngleSensorCoverDownloads
20.016.3403680WSilver4000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.3303580WSilver3000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.2403480WWhite4000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.2303380WWhite3000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.1403280WBlack4000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.1303180WBlack3000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.3403080WSilver4000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.3302980WSilver3000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.2402880WWhite4000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.2302780WWhite3000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.1402680WBlack4000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.1302580WBlack3000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.3402480WSilver4000K↑110°/90°↓NoneMicroprismaticPDFIMIESLDTSIZE
20.016.3302380WSilver3000K↑110°/90°↓NoneMicroprismaticPDFIMIESLDTSIZE
20.016.2402280WWhite4000K↑110°/90°↓NoneMicroprismaticPDFIMIESLDTSIZE
20.016.2302180WWhite3000K↑110°/90°↓NoneMicroprismaticPDFIMIESLDTSIZE
20.016.1402080WBlack4000K↑110°/90°↓NoneMicroprismaticPDFIMIESLDTSIZE
20.016.1301980WBlack3000K↑110°/90°↓NoneMicroprismaticPDFIMIESLDTSIZE
20.016.3401860WSilver4000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.3301760WSilver3000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.2401660WWhite4000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.2301560WWhite3000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.1401460WBlack4000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.1301360WBlack3000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.3401260WSilver4000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.3301160WSilver3000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.2401060WWhite4000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.2300960WWhite3000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.1400860WBlack4000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.1300760WBlack3000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
20.016.3400660WSilver4000K↑110°/90°↓NoneMicroprismaticPDFIMIESLDTSIZE
20.016.3300560WSilver3000K↑110°/90°↓NoneMicroprismaticPDFIMIESLDTSIZE
20.016.2400460WWhite4000K↑110°/90°↓NoneMicroprismaticPDFIMIESLDTSIZE
20.016.2300360WWhite3000K↑110°/90°↓NoneMicroprismaticPDFIMIESLDTSIZE
20.016.1400260WBlack4000K↑110°/90°↓NoneMicroprismaticPDFIMIESLDTSIZE
20.016.1300160WBlack3000K↑110°/90°↓NoneMicroprismaticPDFIMIESLDTSIZE
