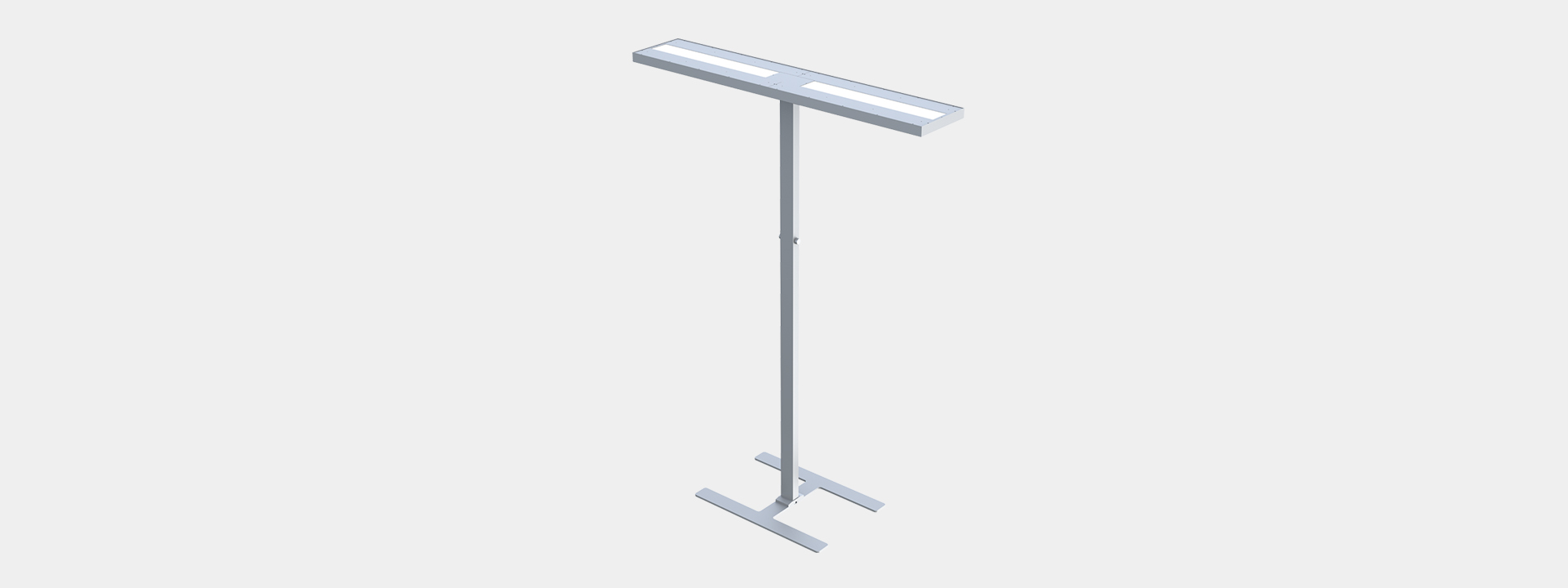

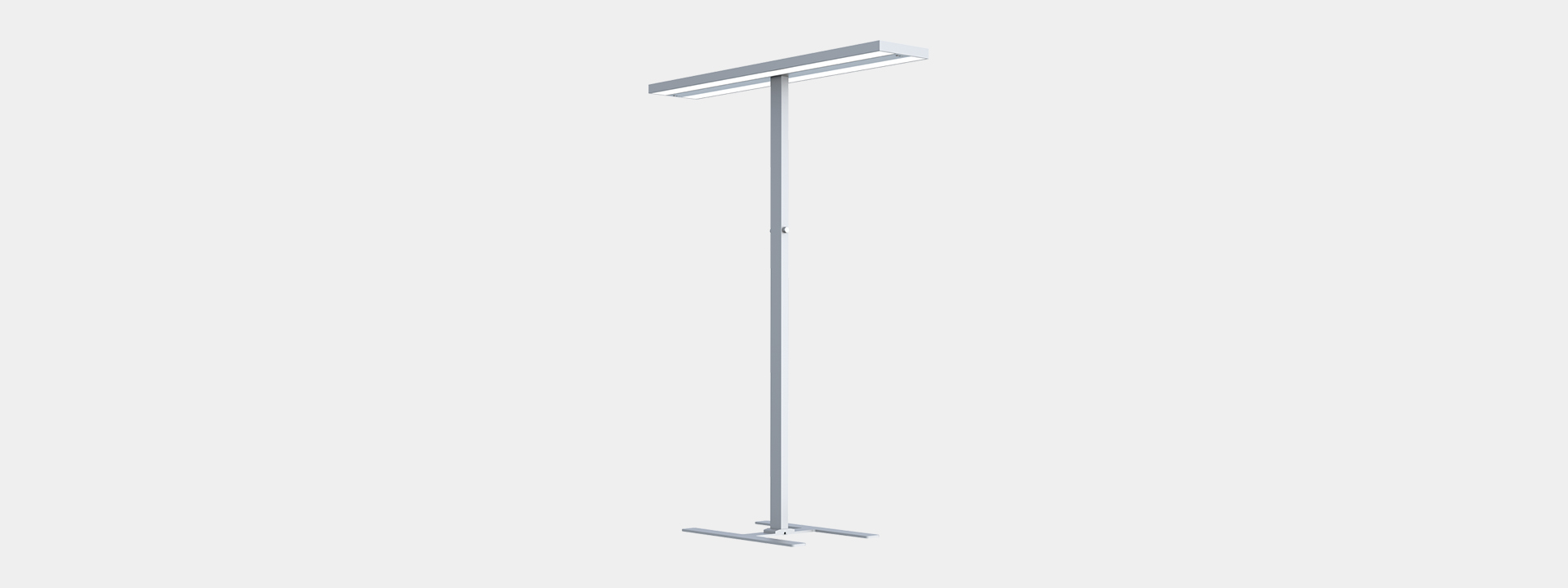

Vale-D
Inheriting classic design, square corner structure, perfect assembly details makes exquisite appearance with rich texture.

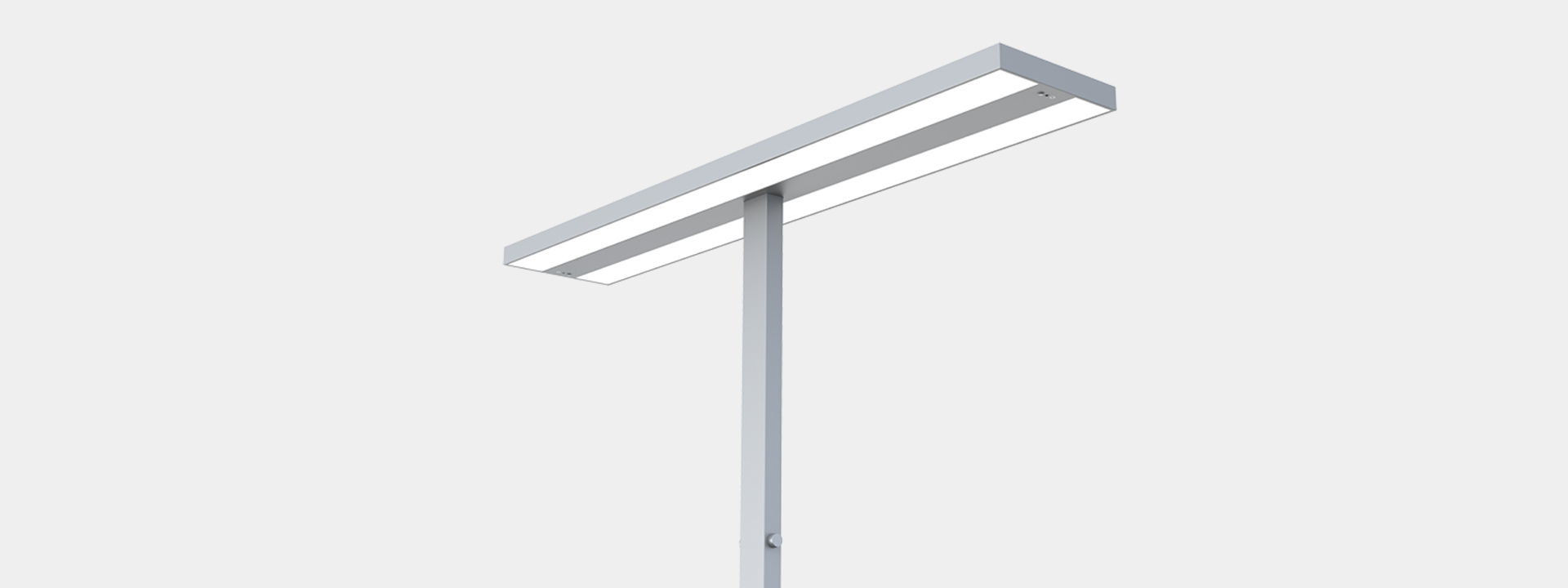

The product emits downwards and adopts a diffuser plate of a microprism structure to realize an anti-glare function, the
beam angle is about 90 degrees, the upward beam angle is 110 degrees.DIY assembly, no need professionals, easy installation, flexible using.
Typical value is 120LM/W, flicker free, KNOB dimming, 50% DIRECT / 50% INDIRECT synchronous dimming control, and other intelligent control like motion sensor and day light sensor , etc.

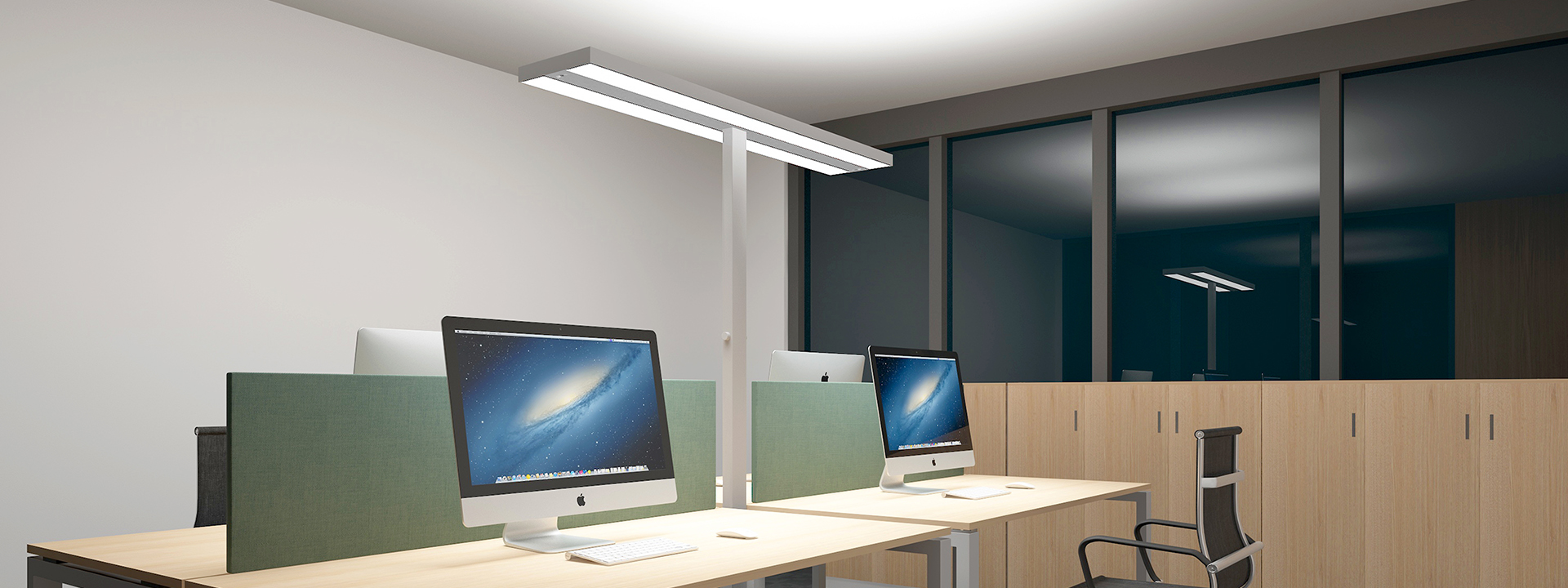

Suitable for four desks of 0.8*1.6m offering uniform lighting on eye areas with assembled base.
The main materials are aluminum profiles, steel and PMMA. With Integrated structure pole .
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
| Item NO. | System Power | Surface Finish | Colour temperature | Beam Angle | Sensor | Cover | Downloads |
| 20.018.34018 | 160W | Silver | 4000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.018.33017 | 160W | Silver | 3000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.018.24016 | 160W | White | 4000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.018.23015 | 160W | White | 3000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.018.14014 | 160W | Black | 4000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.018.13013 | 160W | Black | 3000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.018.34012 | 160W | Silver | 4000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.018.33011 | 160W | Silver | 3000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.018.24010 | 160W | White | 4000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.018.23009 | 160W | White | 3000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.018.14008 | 160W | Black | 4000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.018.13007 | 160W | Black | 3000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.018.34006 | 160W | Silver | 4000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.018.33005 | 160W | Silver | 3000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.018.24004 | 160W | White | 4000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.018.23003 | 160W | White | 3000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.018.14002 | 160W | Black | 4000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.018.13001 | 160W | Black | 3000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
