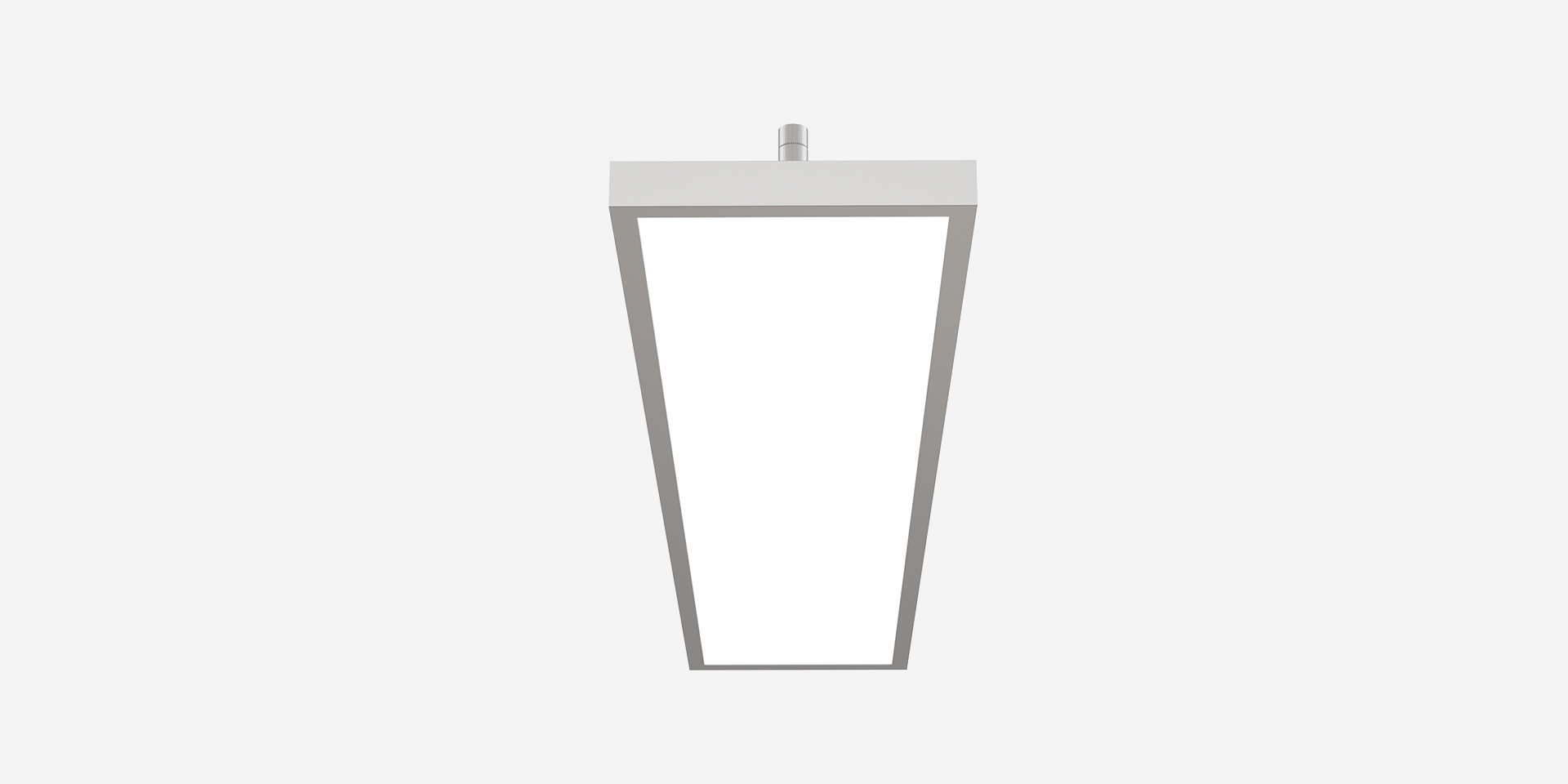

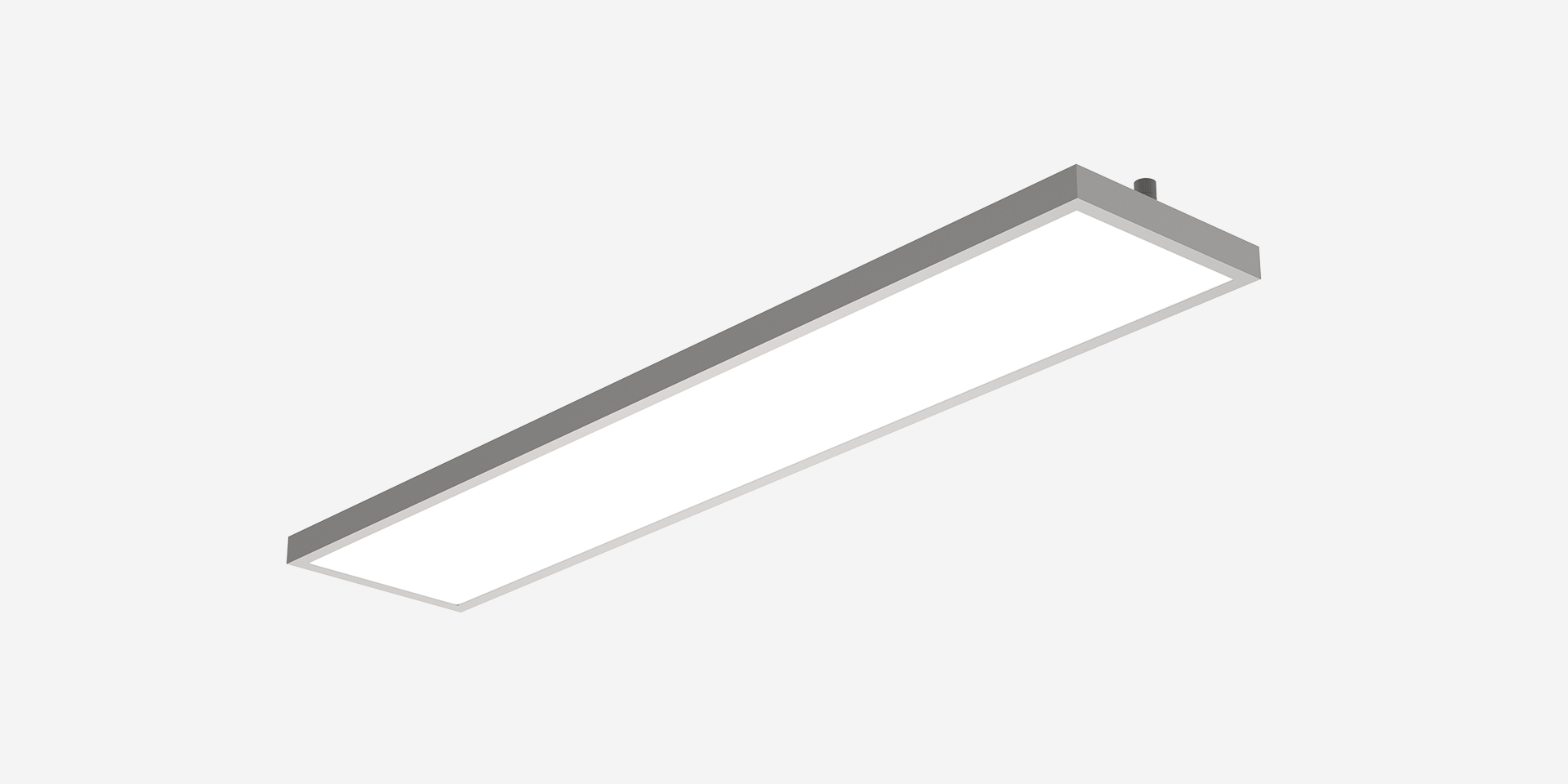

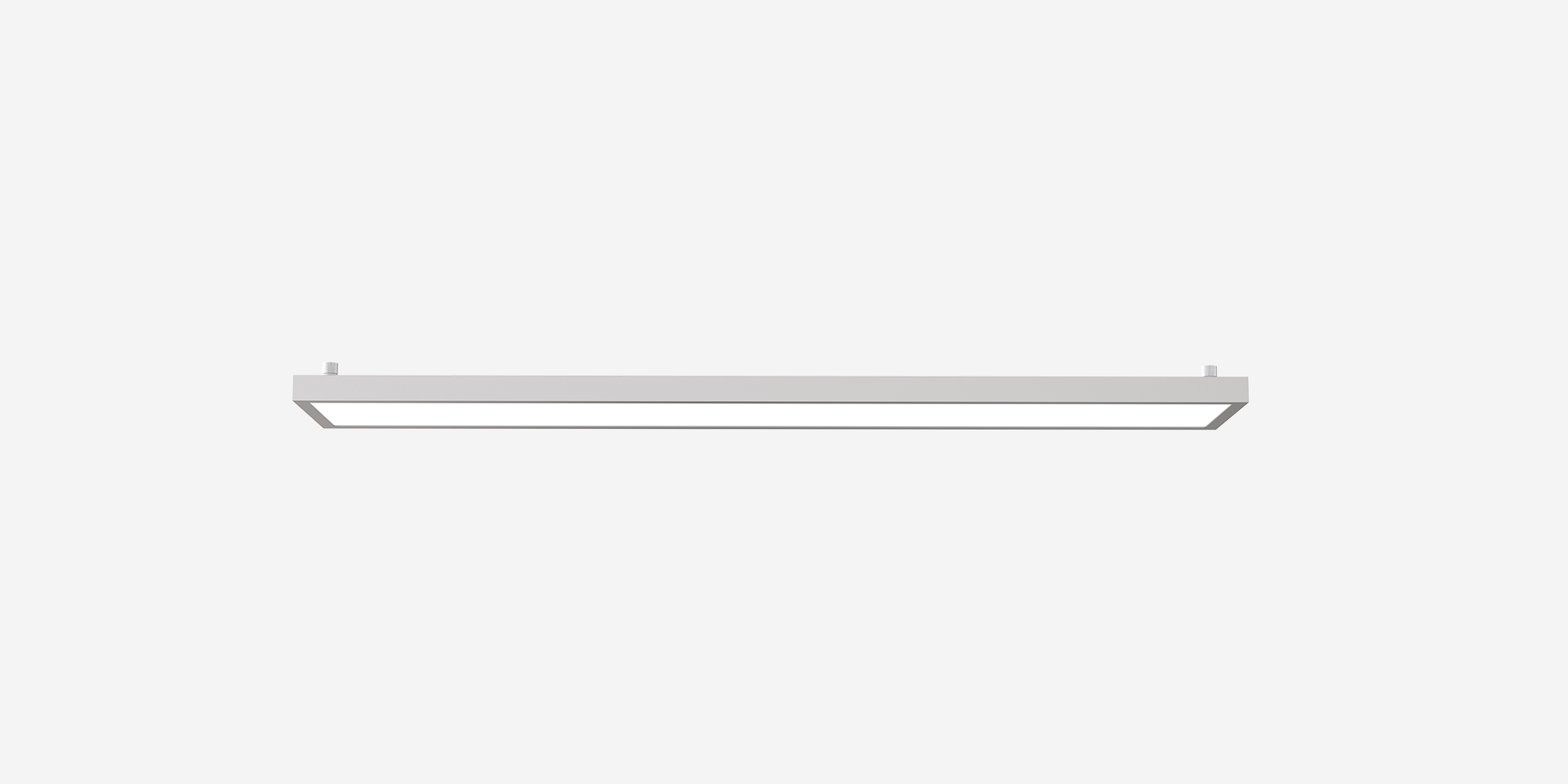

Ymer-C

The Ymer-C come with minimalist design, excellent material selection and production technology, exquisite appearance, and rich texture.


The direct light adopts a diffusion plate with microprism structure to realizeanti-glare function.

Typicallight efficiency 105LM/W, flicker free, 75% DIRECT / 25% INDIRECT lighting.

Ceiling installation, very simple and convenient.

It can realize 1-10V or DALI synchronous dimming ,and even support wireless control systems such as CASAMBI.
TECHNICAL DATA
System power: 50 W / 60 W
Luminous flux of luminaire: 5200 lm / 6300 lm
Colour temperature: 3000 K / 4000 K
UGR: <19
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • Length

    1200 mm 1500 mm

  • System Power

    50W 60W

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K

  • Dimming

    No 1-10V DALI

  • Cover

    Microprismatic
Item NO.LengthSystem PowerSurface FinishColour temperatureDimmingCoverDownloads
23 . 001 . 340361500 mm60WSilver4000KDALIMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 330351500 mm60WSilver3000KDALIMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 240341500 mm60WWhite4000KDALIMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 230331500 mm60WWhite3000KDALIMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 140321500 mm60WBlack4000KDALIMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 130311500 mm60WBlack3000KDALIMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 340301500 mm60WSilver4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 330291500 mm60WSilver3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 240281500 mm60WWhite4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 230271500 mm60WWhite3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 140261500 mm60WBlack4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 130251500 mm60WBlack3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 340241500 mm60WSilver4000KNoMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 330231500 mm60WSilver3000KNoMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 240221500 mm60WWhite4000KNoMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 230211500 mm60WWhite3000KNoMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 140201500 mm60WBlack4000KNoMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 130191500 mm60WBlack3000KNoMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 340181200 mm50WSilver4000KDALIMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 330171200 mm50WSilver3000KDALIMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 240161200 mm50WWhite4000KDALIMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 230151200 mm50WWhite3000KDALIMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 140141200 mm50WBlack4000KDALIMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 130131200 mm50WBlack3000KDALIMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 340121200 mm50WWhite4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 330111200 mm50WSilver3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 240101200 mm50WWhite4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 230091200 mm50WWhite3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 140081200 mm50WBlack4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 130071200 mm50WBlack3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 340061200 mm50WSilver4000KNoMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 330051200 mm50WSilver3000KNoMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 240041200 mm50WWhite4000KNoMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 230031200 mm50WWhite3000KNoMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 140021200 mm50WBlack4000KNoMicroprismaticPDFIMIESLDTSIZE
23 . 001 . 130011200 mm50WBlack3000KNoMicroprismaticPDFIMIESLDTSIZE
