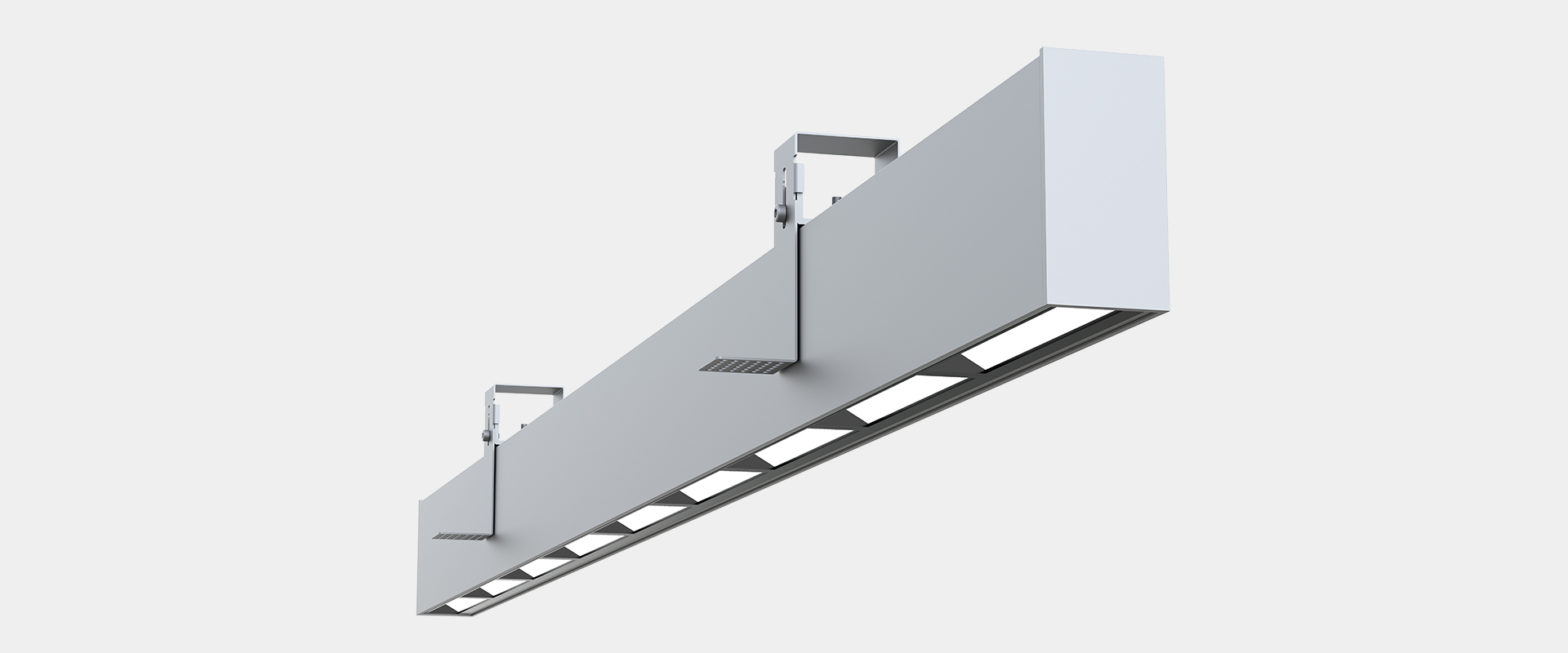

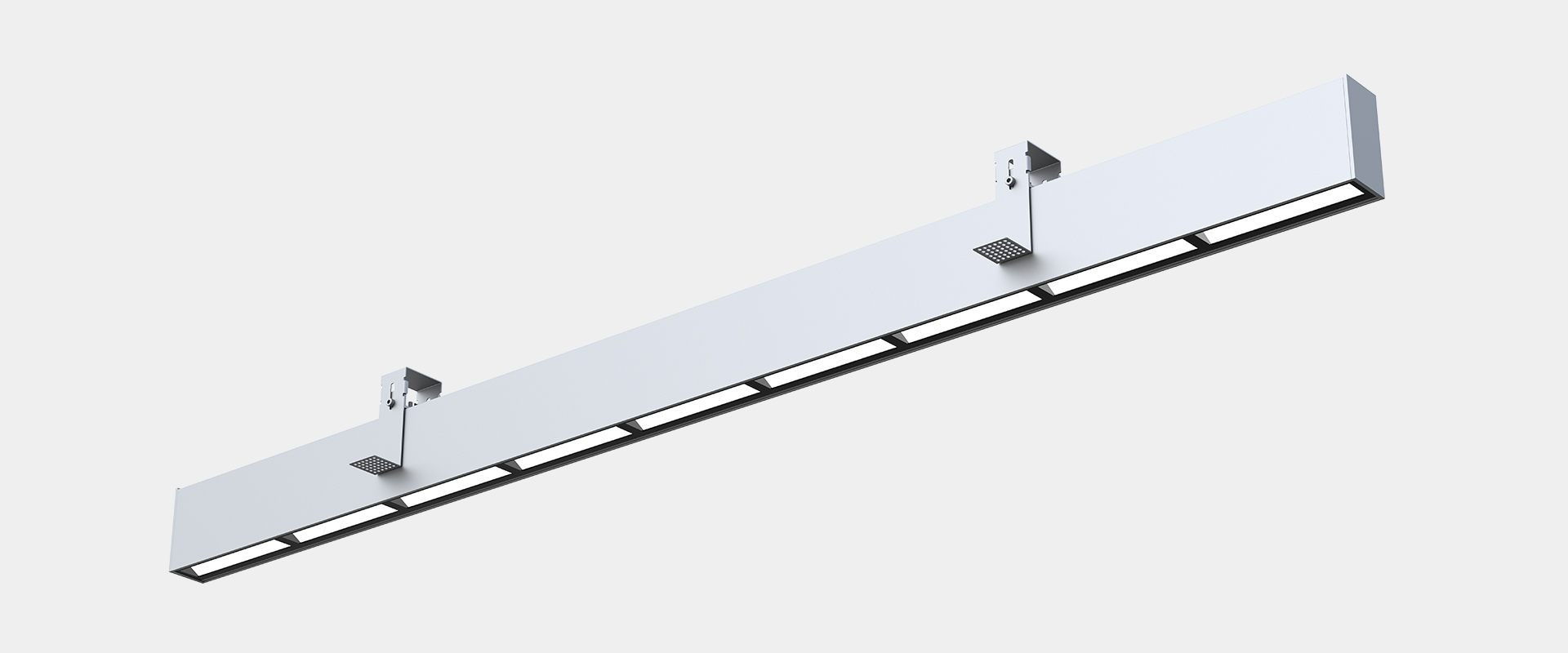

Tjatse-R
Tjatse-R is designed with polarizing optical design by using a unique module. Compared with other similar products,it can achieve higher uniformity lighting effect for 3 meter's wall based on a 60cm distance from the wall. No shadow on the whole wall surface.

Adopting push-in & push-out structure, equipped with front-mounted and rear-mounted two types of recessed accessories,pre-install the light frame and then install the LED module separately after renovation. Very easy, convenient and efficient for installation and maintenance. With male and female connectors inside the lamp engine and linkable kits inside the package,it can realized linkable connection perfectly.

30W in total, typical value of light efficiency is 100lm/w. It can realize 1-10V or DALI synchronous dimming ,and even support wireless control systems such as CASAMBI,HCL .
TECHNICAL DATA
System power: 30 W
Luminous flux of luminaire: 2800 lm
Colour temperature: 3000 K / 4000 K
UGR: <19
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • System Power

    30W

  • Length

    1204 mm

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K

  • UGR

    <19

  • Dimming

    None 1-10V DALI
Item NO.System PowerLengthSurface FinishColour temperatureUGRDimmingDownloads
24.005.3401830W1204 mmSilver4000K<19DALIPDFIMIESLDTSIZE
24.005.3301730W1204 mmSilver3000K<19DALIPDFIMIESLDTSIZE
24.005.2401630W1204 mmWhite4000K<19DALIPDFIMIESLDTSIZE
24.005.2301530W1204 mmWhite3000K<19DALIPDFIMIESLDTSIZE
24.005.1401430W1204 mmBlack4000K<19DALIPDFIMIESLDTSIZE
24.005.1301330W1204 mmBlack3000K<19DALIPDFIMIESLDTSIZE
24.005.3401230W1204 mmSilver4000K<191-10VPDFIMIESLDTSIZE
24.005.3301130W1204 mmSilver3000K<191-10VPDFIMIESLDTSIZE
24.005.2401030W1204 mmWhite4000K<191-10VPDFIMIESLDTSIZE
24.005.2300930W1204 mmWhite3000K<191-10VPDFIMIESLDTSIZE
24.005.1400830W1204 mmBlack4000K<191-10VPDFIMIESLDTSIZE
24.005.1300730W1204 mmBlack3000K<191-10VPDFIMIESLDTSIZE
24.005.3400630W1204 mmSilver4000K<19NonePDFIMIESLDTSIZE
24.005.3300530W1204 mmSilver3000K<19NonePDFIMIESLDTSIZE
24.005.2400430W1204 mmWhite4000K<19NonePDFIMIESLDTSIZE
24.005.2300330W1204 mmWhite3000K<19NonePDFIMIESLDTSIZE
24.005.1400230W1204 mmBlack4000K<19NonePDFIMIESLDTSIZE
24.005.1300130W1204 mmBlack3000K<19NonePDFIMIESLDTSIZE
