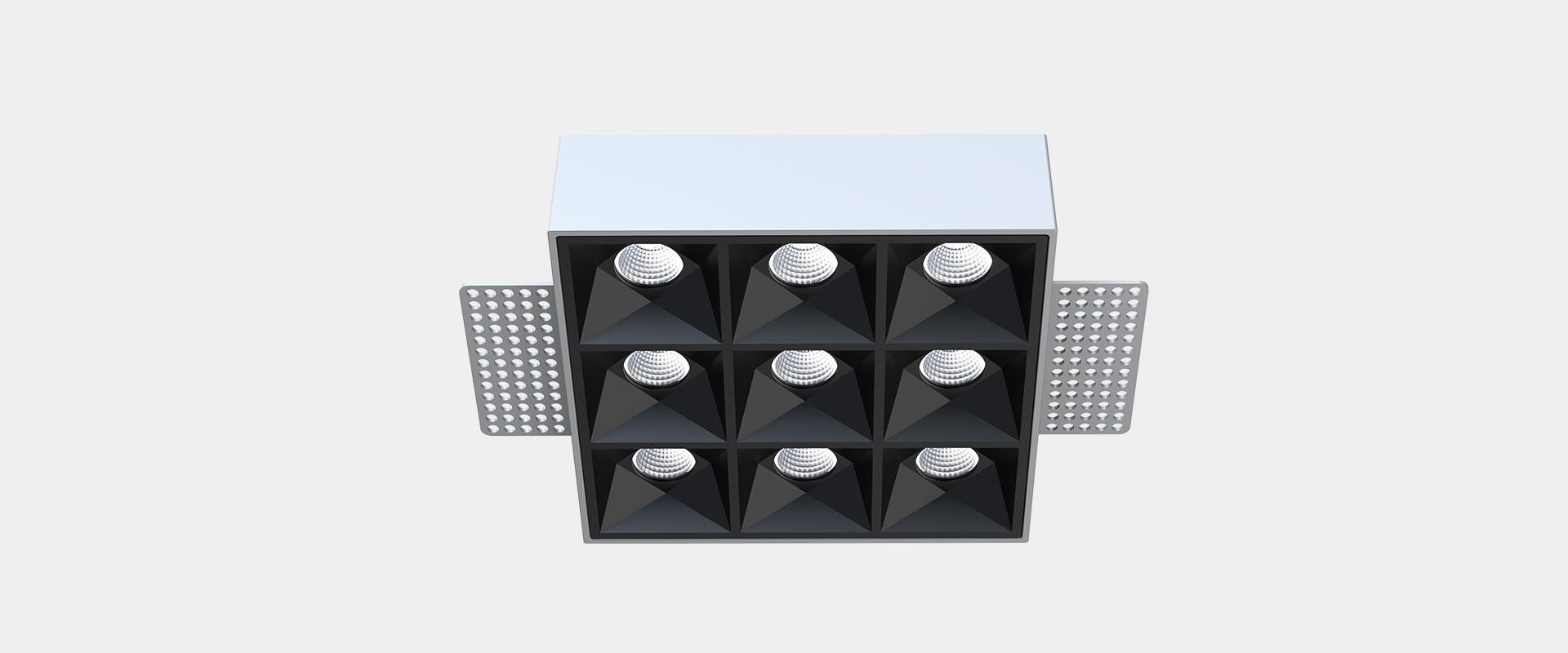

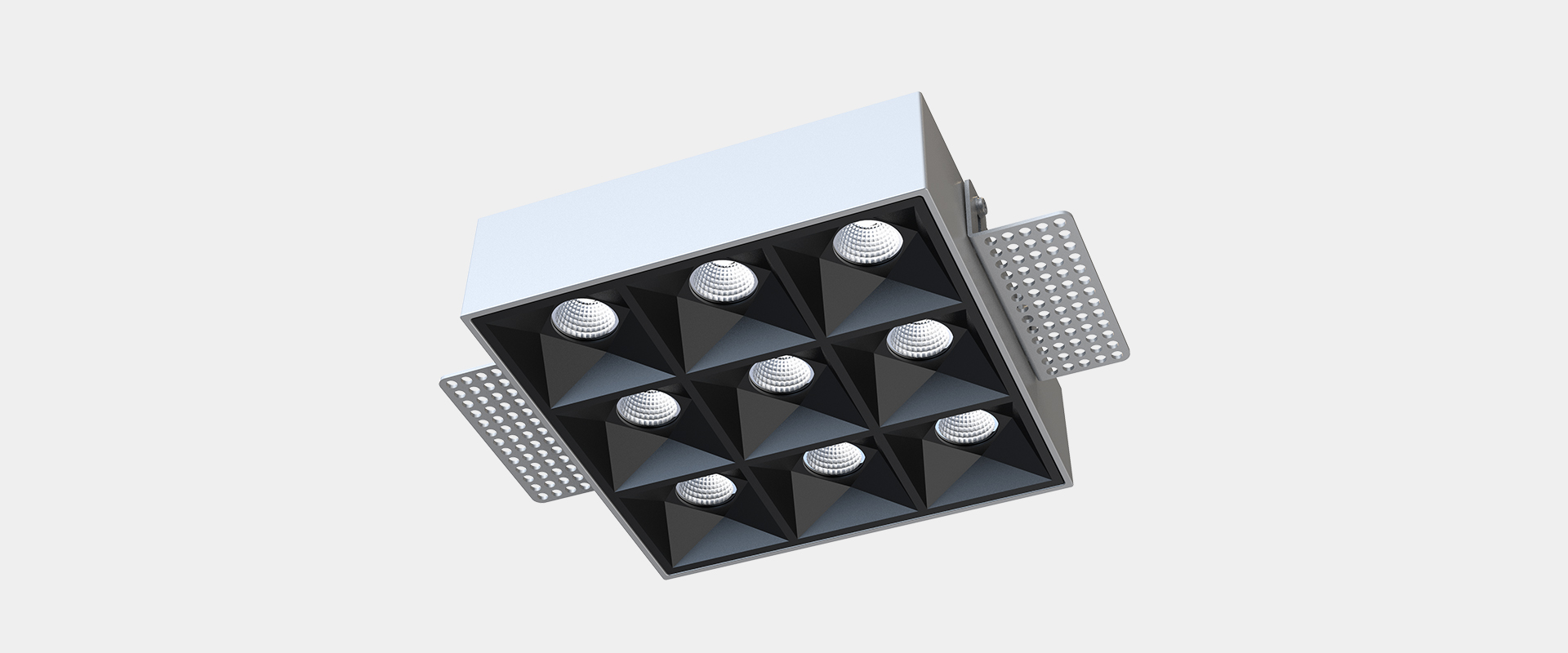

Siv-D2
With extremely simple design and excellent craftwork, exquisite appearance looks with rich of texture.

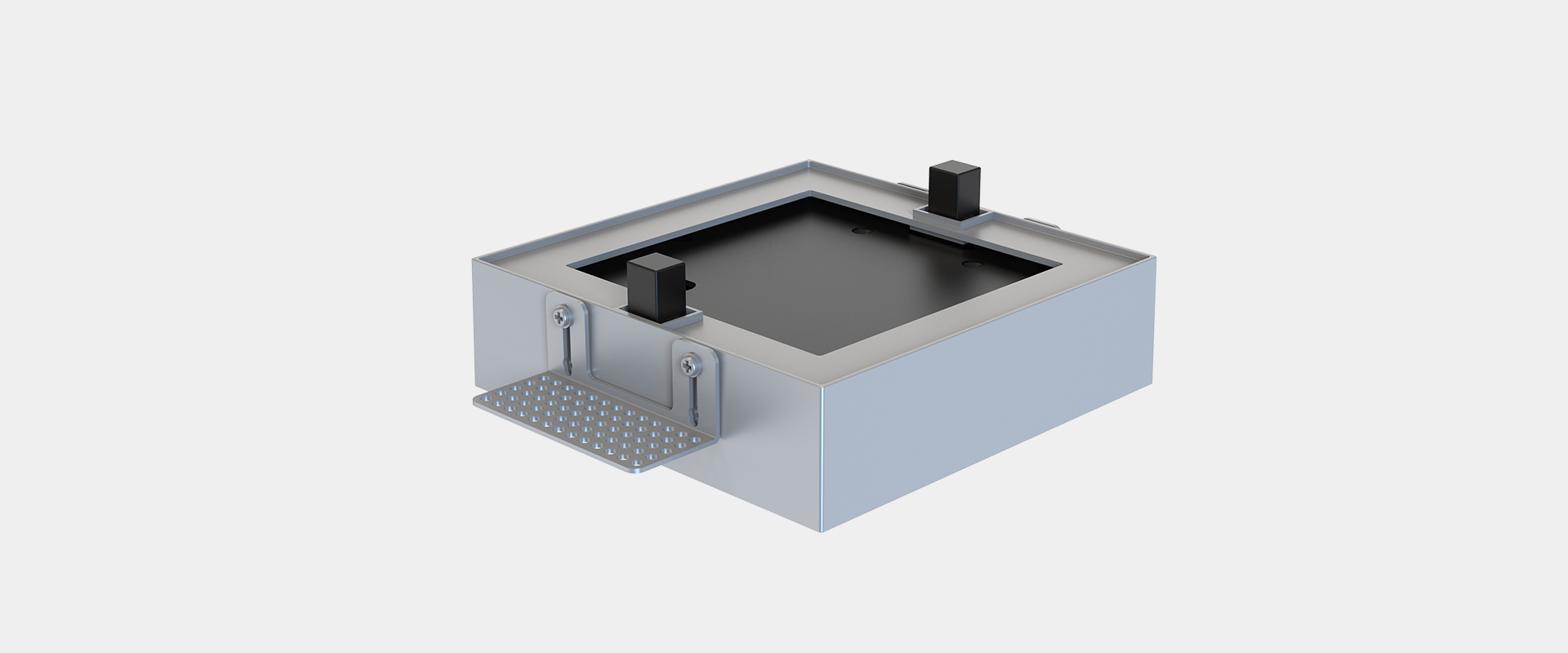

Collocated with micro refiector and anti-glare cover, it can realize 35° /65°beam angle and perfect light cutoff. UGR value is as low as 15. Adopting structure of trimless design, independent led modules and push-in & push-out structure, lamp is easy for installation and maintenance.

Main material includes aluminum profile and PC. Typical value of light efficiency is 110lm/w, and lighting is of fiicker free. Lamp supports 1-10V and DALI dimming. Collocated with CASAMBI wireless system, dimming and tunable white can be realized. Adopting trimless and recessed installation.
TECHNICAL DATA
System power: 8 W / 18 W
Luminous flux of luminaire: 850 lm / 1900 lm
Colour temperature: 3000 K / 4000 K
UGR: <17(35°) / <19(65°)
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • Length

    125 mm

  • System Power

    8W 18W

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K

  • Dimming

    None 1-10V DALI

  • Beam Angle

    35° 65°
Item NO.LengthSystem PowerSurface FinishColour temperatureDimmingBeam AngleDownloads
24.001.34072125 mm18WSilver4000KDALI65°PDFIMIESLDTSIZE
24.001.33071125 mm18WSilver3000KDALI65°PDFIMIESLDTSIZE
24.001.24070125 mm18WWhite4000KDALI65°PDFIMIESLDTSIZE
24.001.23069125 mm18WWhite3000KDALI65°PDFIMIESLDTSIZE
24.001.14068125 mm8WBlack4000KDALI65°PDFIMIESLDTSIZE
24.001.13067125 mm18WBlack3000KDALI65°PDFIMIESLDTSIZE
24.001.34066125 mm18WSilver4000K1-10V65°PDFIMIESLDTSIZE
24.001.33065125 mm18WSilver3000K1-10V65°PDFIMIESLDTSIZE
24.001.24064125 mm18WWhite4000K1-10V65°PDFIMIESLDTSIZE
24.001.23063125 mm18WWhite3000K1-10V65°PDFIMIESLDTSIZE
24.001.14062125 mm18WBlack4000K1-10V65°PDFIMIESLDTSIZE
24.001.13061125 mm18WBlack3000K1-10V65°PDFIMIESLDTSIZE
24.001.34060125 mm18WSilver4000KNone65°PDFIMIESLDTSIZE
24.001.33059125 mm18WSilver3000KNone65°PDFIMIESLDTSIZE
24.001.24058125 mm18WWhite4000KNone65°PDFIMIESLDTSIZE
24.001.23057125 mm18WWhite3000KNone65°PDFIMIESLDTSIZE
24.001.14056125 mm18WBlack4000KNone65°PDFIMIESLDTSIZE
24.001.13055125 mm18WBlack3000KNone65°PDFIMIESLDTSIZE
24.001.34054125 mm8WSilver4000KDALI65°PDFIMIESLDTSIZE
24.001.33053125 mm8WSilver3000KDALI65°PDFIMIESLDTSIZE
24.001.24052125 mm8WWhite4000KDALI65°PDFIMIESLDTSIZE
24.001.23051125 mm8WWhite3000KDALI65°PDFIMIESLDTSIZE
24.001.14050125 mm8WBlack4000KDALI65°PDFIMIESLDTSIZE
24.001.13049125 mm8WBlack3000KDALI65°PDFIMIESLDTSIZE
24.001.34048125 mm8WSilver4000K1-10V65°PDFIMIESLDTSIZE
24.001.33047125 mm8WSilver3000K1-10V65°PDFIMIESLDTSIZE
24.001.24046125 mm8WWhite4000K1-10V65°PDFIMIESLDTSIZE
24.001.23045125 mm8WWhite3000K1-10V65°PDFIMIESLDTSIZE
24.001.14044125 mm8WBlack4000K1-10V65°PDFIMIESLDTSIZE
24.001.13043125 mm8WBlack3000K1-10V65°PDFIMIESLDTSIZE
24.001.34042125 mm8WSilver4000KNone65°PDFIMIESLDTSIZE
24.001.33041125 mm8WSilver3000KNone65°PDFIMIESLDTSIZE
24.001.24040125 mm8WWhite4000KNone65°PDFIMIESLDTSIZE
24.001.23039125 mm8WWhite3000KNone65°PDFIMIESLDTSIZE
24.001.14038125 mm8WBlack4000KNone65°PDFIMIESLDTSIZE
24.001.13037125 mm8WBlack3000KNone65°PDFIMIESLDTSIZE
24.001.34036125 mm18WSilver4000KDALI35°PDFIMIESLDTSIZE
24.001.33035125 mm18WSilver3000KDALI35°PDFIMIESLDTSIZE
24.001.24034125 mm18WWhite4000KDALI35°PDFIMIESLDTSIZE
24.001.23033125 mm18WWhite3000KDALI35°PDFIMIESLDTSIZE
24.001.14032125 mm18WBlack4000KDALI35°PDFIMIESLDTSIZE
24.001.13031125 mm18WBlack3000KDALI35°PDFIMIESLDTSIZE
24.001.34030125 mm18WSilver4000K1-10V35°PDFIMIESLDTSIZE
24.001.33029125 mm18WSilver3000K1-10V35°PDFIMIESLDTSIZE
24.001.24028125 mm18WWhite4000K1-10V35°PDFIMIESLDTSIZE
24.001.23027125 mm18WWhite3000K1-10V35°PDFIMIESLDTSIZE
24.001.14026125 mm18WBlack4000K1-10V35°PDFIMIESLDTSIZE
24.001.13025125 mm18WBlack3000K1-10V35°PDFIMIESLDTSIZE
24.001.34024125 mm18WSilver4000KNone35°PDFIMIESLDTSIZE
24.001.33023125 mm18WSilver3000KNone35°PDFIMIESLDTSIZE
24.001.24022125 mm18WWhite4000KNone35°PDFIMIESLDTSIZE
24.001.23021125 mm18WWhite3000KNone35°PDFIMIESLDTSIZE
24.001.14020125 mm18WBlack4000KNone35°PDFIMIESLDTSIZE
24.001.13019125 mm18WBlack3000KNone35°PDFIMIESLDTSIZE
24.001.34018125 mm8WSilver4000KDALI35°PDFIMIESLDTSIZE
24.001.33017125 mm8WSilver3000KDALI35°PDFIMIESLDTSIZE
24.001.24016125 mm8WWhite4000KDALI35°PDFIMIESLDTSIZE
24.001.23015125 mm8WWhite3000KDALI35°PDFIMIESLDTSIZE
24.001.14014125 mm8WBlack4000KDALI35°PDFIMIESLDTSIZE
24.001.13013125 mm8WBlack3000KDALI35°PDFIMIESLDTSIZE
24.001.34012125 mm8WSilver4000K1-10V35°PDFIMIESLDTSIZE
24.001.33011125 mm8WSilver3000K1-10V35°PDFIMIESLDTSIZE
24.001.24010125 mm8WWhite4000K1-10V35°PDFIMIESLDTSIZE
24.001.23009125 mm8WWhite3000K1-10V35°PDFIMIESLDTSIZE
24.001.14008125 mm8WBlack4000K1-10V35°PDFIMIESLDTSIZE
24.001.13007125 mm8WBlack3000K1-10V35°PDFIMIESLDTSIZE
24.001.34006125 mm8WSilver4000KNone35°PDFIMIESLDTSIZE
24.001.23005125 mm8WSilver3000KNone35°PDFIMIESLDTSIZE
24.001.24004125 mm8WBlack3000KNone35°PDFIMIESLDTSIZE
24.001.23003125 mm8WWhite3000KNone35°PDFIMIESLDTSIZE
24.001.14002125 mm8WBlack3000KNone35°PDFIMIESLDTSIZE
24.001.13001125 mm8WBlack3000KNone35°PDFIMIESLDTSIZE
