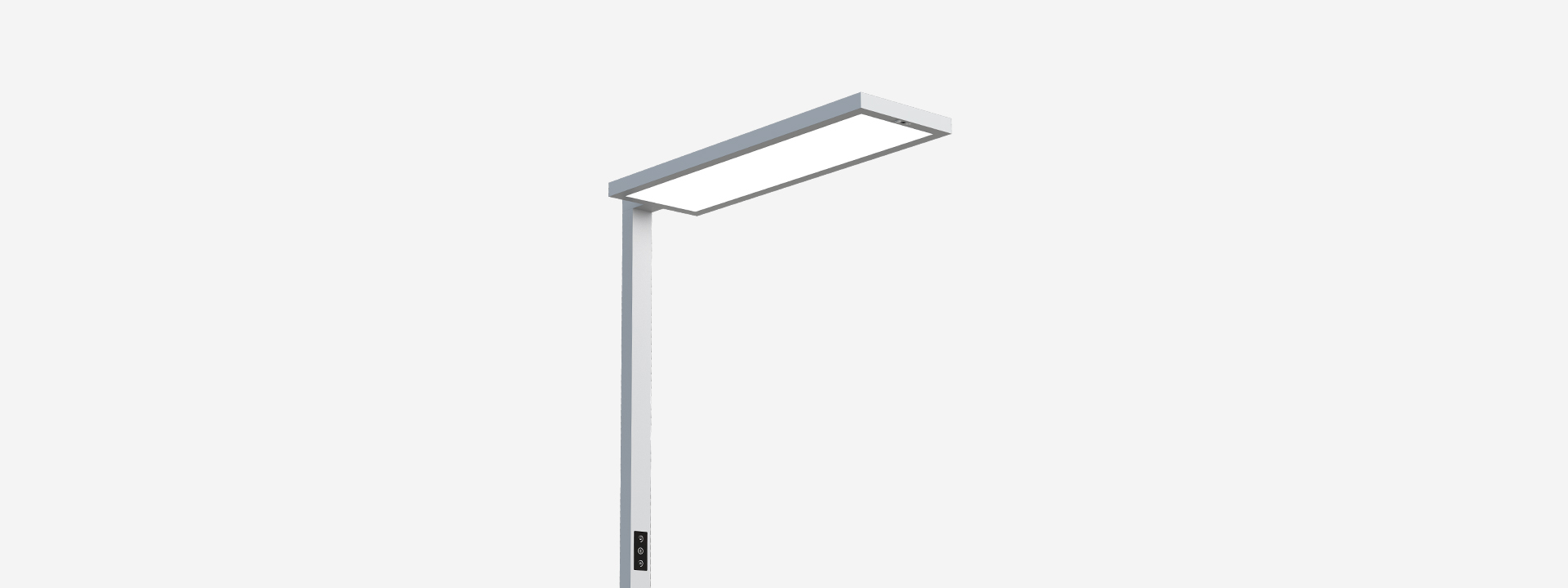

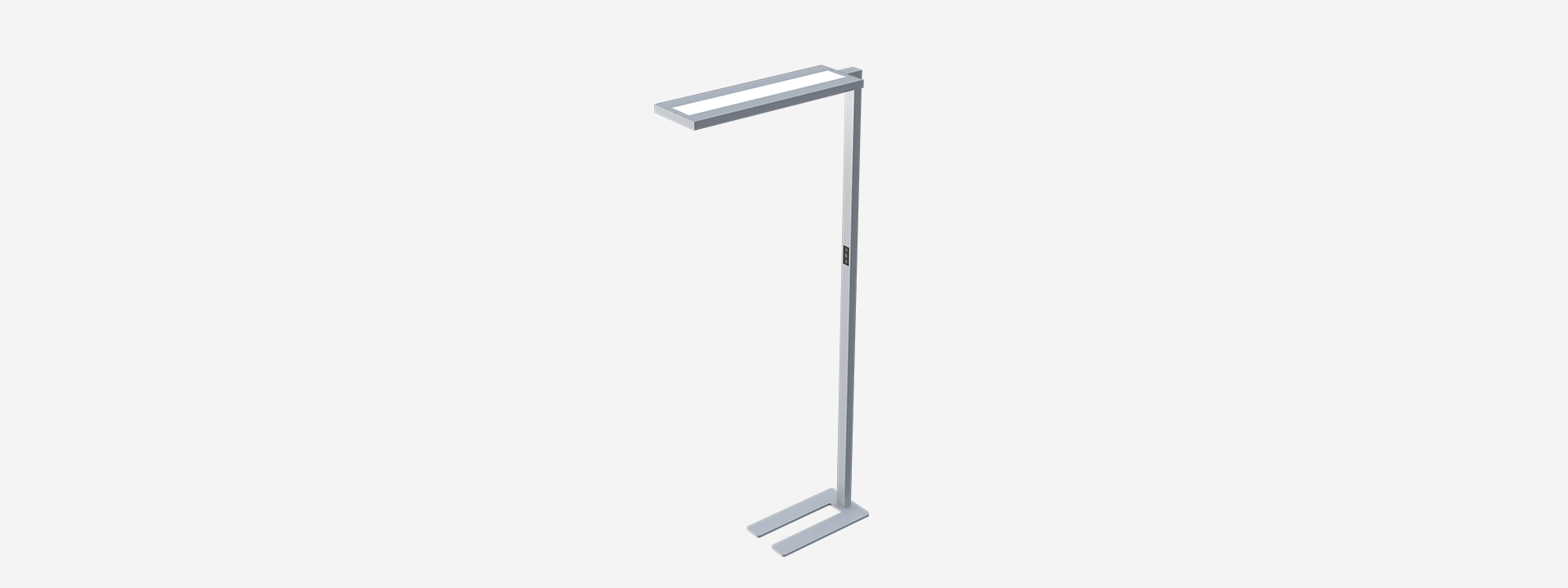

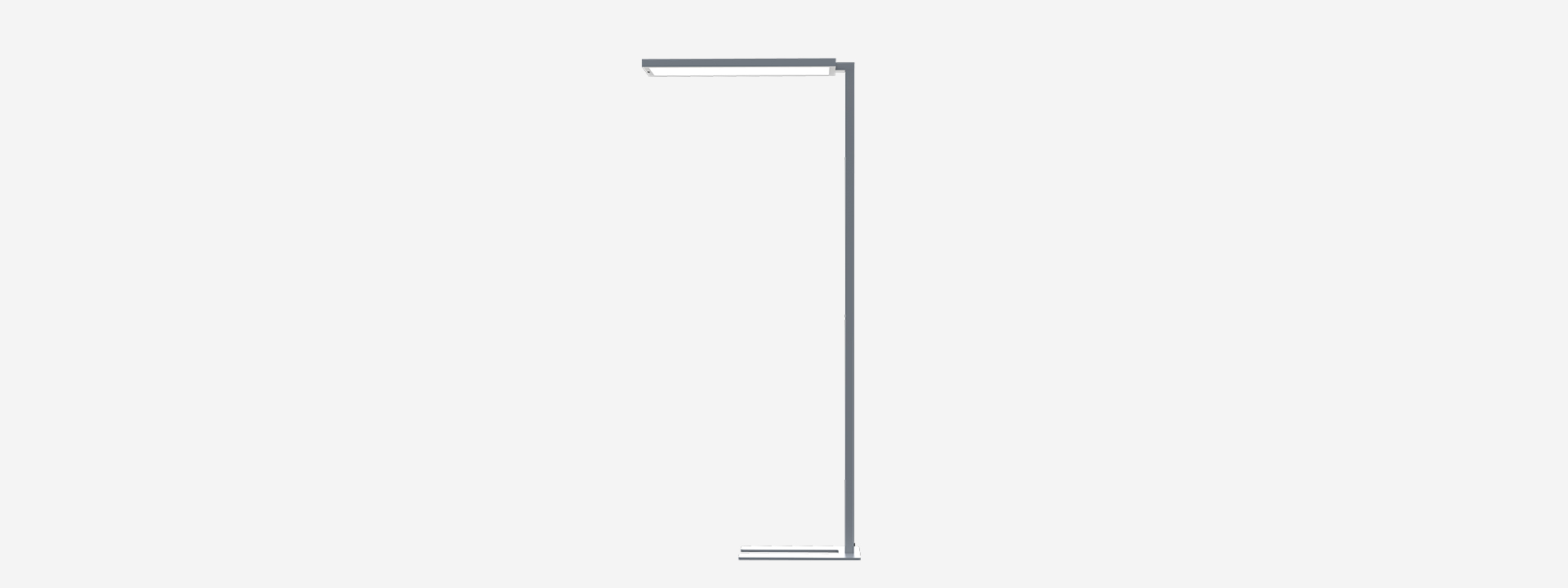

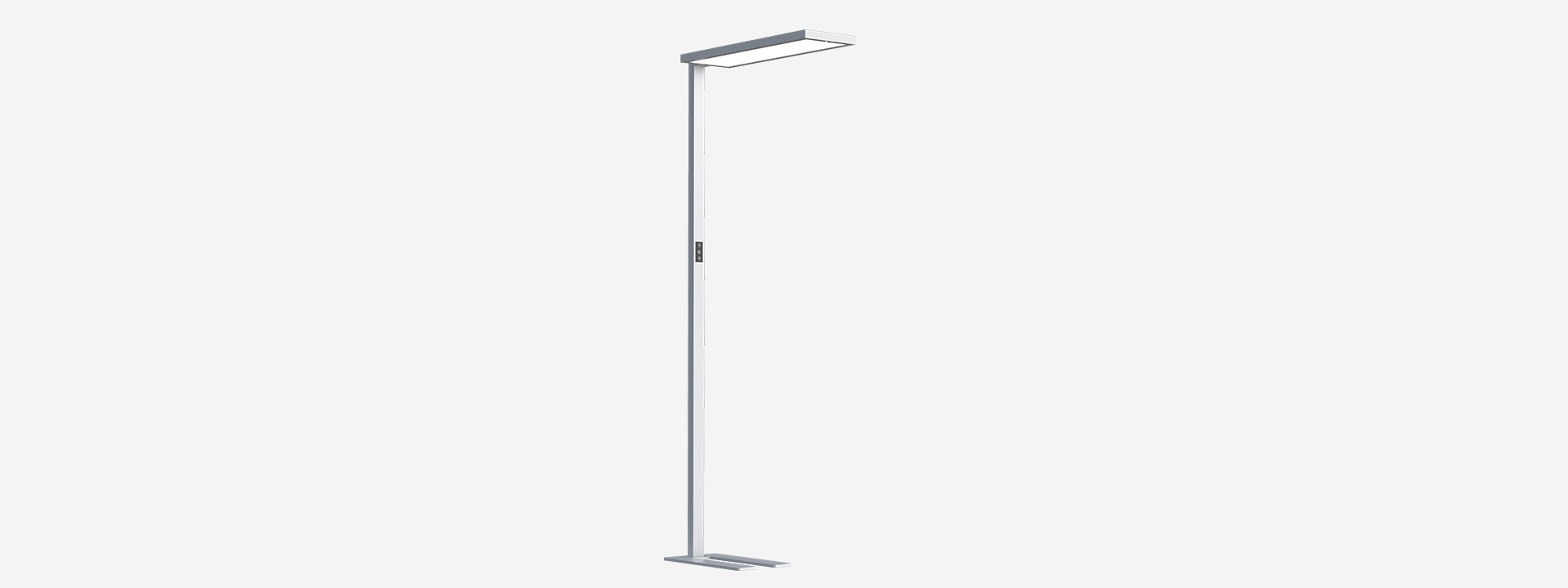

Ymer-F
The Ymer series come with minimalist design, excellent material selection and production technology, exquisite appearance,
and rich texture. A variety of combinations of lamp head design is accessible for office lighting scenes consisting of a variety
of desks.
Its luminous efficiency is up to 135LM/W. the maximum power is 100W, and the luminous fiux can reach 13300 lumens;
Supports brightness adjustment, color temperature adjustment, motion detection, and constant light control.
CANSAMBI/TUYA or OSRAM BT CONTROL enables network control such as HCL and SWARM functions.
6063 aluminum and PMMA/PC material, the lighting from the lamp head, with the ratio of upper and lower light is 8:2,
UGR < 14, is soft and comfortable. The light pole is made of 6063 aluminum with built-in power supply and control system.
The base is made of hot-rolled steel plate.
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
| Item NO. | System Power | Surface Finish | Colour temperature | Beam Angle | Sensor | Cover | Downloads |
| 20.001.36030 | 100W | Silver | 3000K~6000K | ↑115°/75°↓ | Motion & Daylight sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.34029 | 100W | Silver | 4000K | ↑115°/75°↓ | Motion & Daylight sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.33028 | 100W | Silver | 3000K | ↑115°/75°↓ | Motion & Daylight sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.26027 | 100W | White | 3000K~6000K | ↑115°/75°↓ | Motion & Daylight sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.24026 | 100W | White | 4000K | ↑115°/75°↓ | Motion & Daylight sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.23025 | 100W | White | 3000K | ↑115°/75°↓ | Motion & Daylight sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.16024 | 100W | Black | 3000K~6000K | ↑115°/75°↓ | Motion & Daylight sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.14023 | 100W | Black | 4000K | ↑115°/75°↓ | Motion & Daylight sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.13022 | 100W | Black | 3000K | ↑115°/75°↓ | Motion & Daylight sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.36021 | 100W | Silver | 3000K~6000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.34020 | 100W | Silver | 4000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.33019 | 100W | Silver | 3000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.26018 | 100W | White | 3000K~6000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.23016 | 100W | White | 3000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.24017 | 100W | White | 4000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.16015 | 100W | Black | 3000K~6000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.14014 | 100W | Black | 4000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.13013 | 100W | Black | 3000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.34012 | 80W | Silver | 4000K | ↑115°/75°↓ | Motion & Daylight sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.33011 | 80W | Silver | 3000K | ↑115°/75°↓ | Motion & Daylight sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.24010 | 80W | White | 4000K | ↑115°/75°↓ | Motion & Daylight sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.23009 | 80W | White | 3000K | ↑115°/75°↓ | Motion & Daylight sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.14008 | 80W | Black | 4000K | ↑115°/75°↓ | Motion & Daylight sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.13007 | 80W | Black | 3000K | ↑115°/75°↓ | Motion & Daylight sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.34006 | 80W | Silver | 4000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.33005 | 80W | Silver | 3000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.24004 | 80W | White | 4000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.23003 | 80W | White | 3000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.14002 | 80W | Black | 4000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.001.13001 | 80W | Black | 3000K | ↑115°/75°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
