Freyr-T
With extremely simple design and excellent craftwork, exquisite appearance looks with rich of texture. Lamp is designedwith special Direct/Indirect lighting and 50°(Direct) & 110°(Indirect) beam angle. Collocated with micro refiector and anti-glare cover, UGR value is as low as 6.

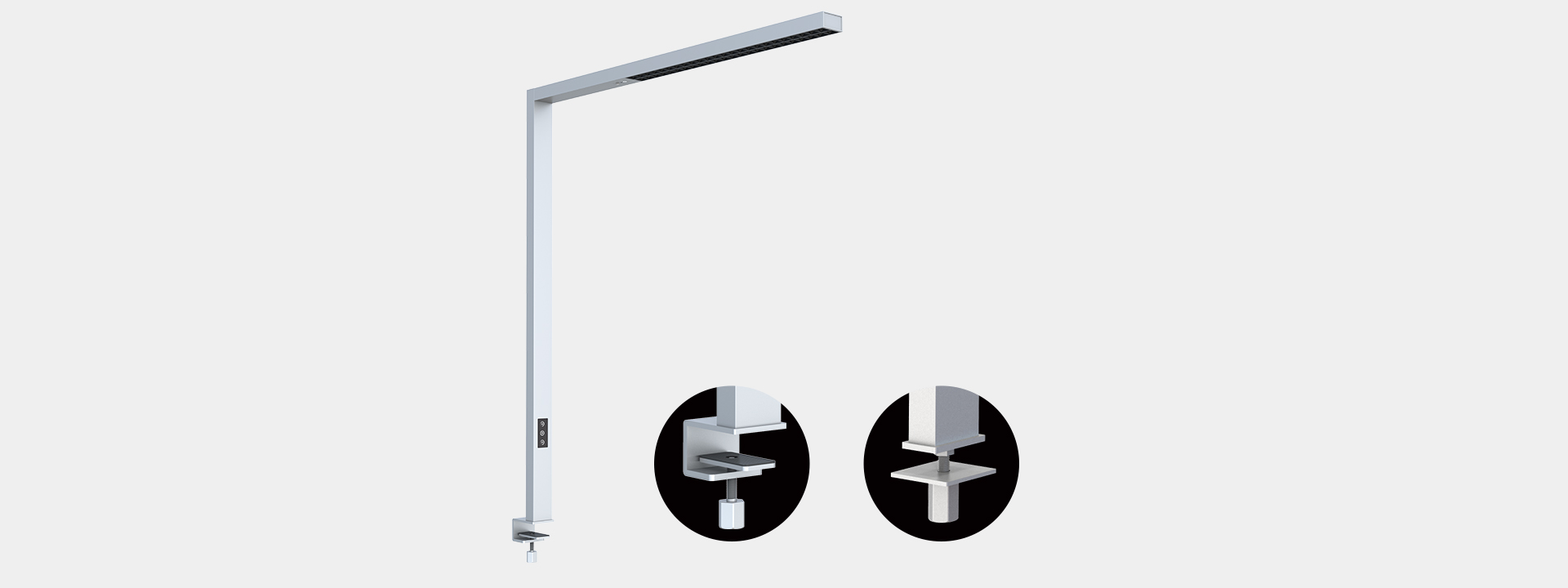

Adopting DIY assembly structure, there is no need of professionals. With special bracket, light can be easily fixed at desk edge and is convenient for using.

Typical value of light efficiency is 120lm/w, and lighting is of fiicker free. Direct(30% power)/Indirect(70% power) lighting can be asynchronously controlled. There are available functions including motion-induction control, constant illuminance daylight-induction control and tunable white. Collocated with CASAMBIwireless system, intelligent functions of HCL, SWAM and others can be realized.
TECHNICAL DATA
System power: 80 W
Luminous flux of luminaire: 9600 lm
Colour temperature: 3000 K / 4000 K / 3000~6000 K Tunable
UGR: <6
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • System Power

    80W

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K 3000K~6000K

  • Beam Angle

    ↑110°/50°↓

  • UGR

    <6

  • Sensor

    Daylight & Motion sensor
Item NO.System PowerSurface FinishColour temperatureBeam AngleUGRSensorDownloads
21.002.3600980WSilver3000K~6000K↑110°/50°↓<6Daylight & Motion sensorPDFIMIESLDTSIZE
21.002.3400880WSilver4000K↑110°/50°↓<6Daylight & Motion sensorPDFIMIESLDTSIZE
21.002.3300780WSilver3000K↑110°/50°↓<6Daylight & Motion sensorPDFIMIESLDTSIZE
21.002.2600680WWhite3000K~6000K↑110°/50°↓<6Daylight & Motion sensorPDFIMIESLDTSIZE
21.002.2400580WWhite4000K↑110°/50°↓<6Daylight & Motion sensorPDFIMIESLDTSIZE
21.002.2300480WWhite3000K↑110°/50°↓<6Daylight & Motion sensorPDFIMIESLDTSIZE
21.002.1600380WBlack3000K~6000K↑110°/50°↓<6Daylight & Motion sensorPDFIMIESLDTSIZE
21.002.1400280WBlack4000K↑110°/50°↓<6Daylight & Motion sensorPDFIMIESLDTSIZE
21.002.1300180WBlack3000K↑110°/50°↓<6Daylight & Motion sensorPDFIMIESLDTSIZE
