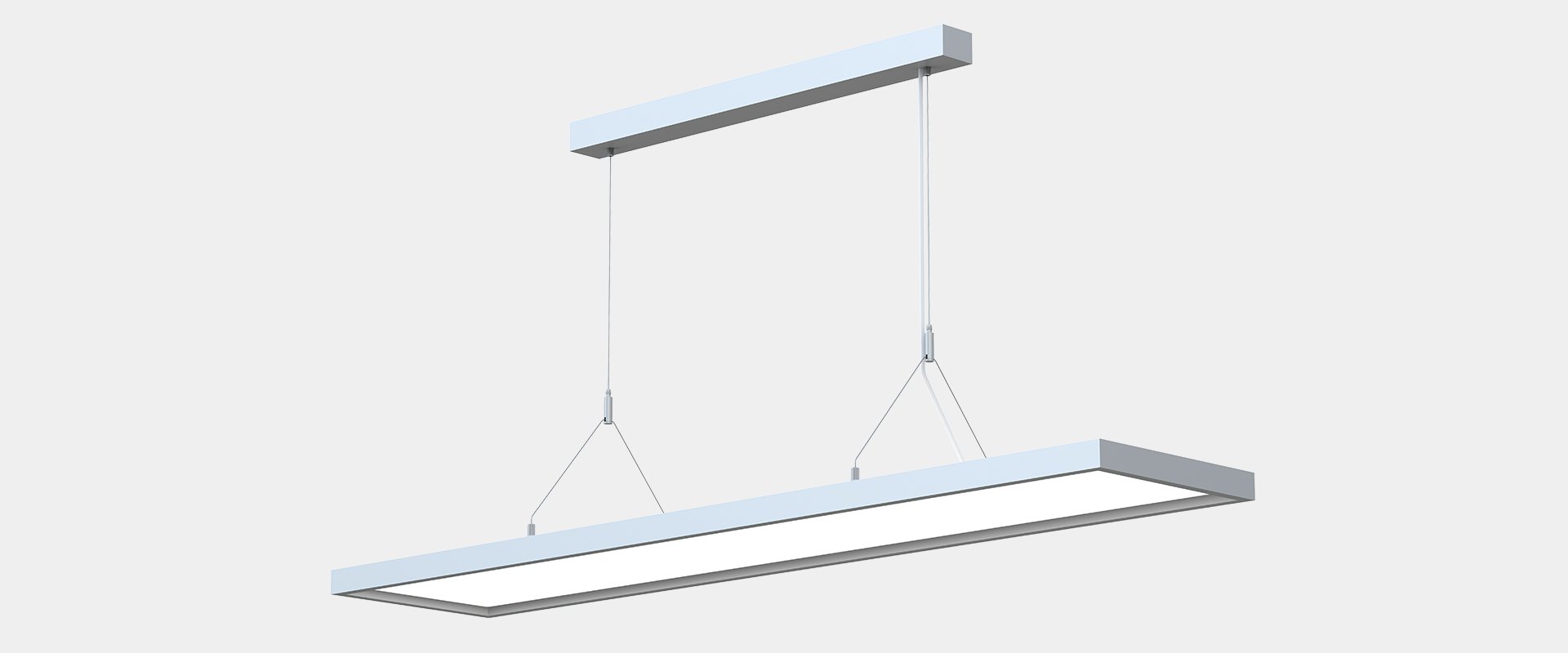

Odin-PS
Modern and simple design style, coupled with exquisite materials and perfect assembly details,the product appearance looks rich in texture.

The direct light adopts a diffusion plate with microprism structure to realizeanti-glare function,and 90 degrees(direct), 110 degrees (indirect). Suspended installation, very simple and convenient. Typicallight efficiency100LM/W, flicker free,70% DIRECT / 30% INDIRECT lighting. It can realize1-10V or DALI synchronous dimming ,and even support wireless control systems such as CASAMBI .

The main materials arealuminum profiles and PMMA.Designed with Square corner.

TECHNICAL DATA
System power: 60 W
Luminous flux of luminaire: 6000 lm
Colour temperature: 3000 K / 4000 K
UGR: <19
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • Length

    1200 mm

  • System Power

    60W

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K

  • Dimming

    None 1-10V DALI

  • Cover

    Microprismatic
Item NO.LengthSystem PowerSurface FinishColour temperatureDimmingCoverDownloads
22.013.340181200 mm60WSilver4000KDALIMicroprismaticPDFIMIESLDTSIZE
22.013.330171200 mm60WSilver3000KDALIMicroprismaticPDFIMIESLDTSIZE
22.013.240161200 mm60WWhite4000KDALIMicroprismaticPDFIMIESLDTSIZE
22.013.230151200 mm60WWhite3000KDALIMicroprismaticPDFIMIESLDTSIZE
22.013.140141200 mm60WBlack4000KDALIMicroprismaticPDFIMIESLDTSIZE
22.013.130131200 mm60WBlack3000KDALIMicroprismaticPDFIMIESLDTSIZE
22.013.340121200 mm60WSilver4000K1-10VMicroprismaticPDFIMIESLDTSIZE
22.013.330111200 mm60WSilver3000K1-10VMicroprismaticPDFIMIESLDTSIZE
22.013.240101200 mm60WWhite4000K1-10VMicroprismaticPDFIMIESLDTSIZE
22.013.230091200 mm60WWhite3000K1-10VMicroprismaticPDFIMIESLDTSIZE
22.013.140081200 mm60WBlack4000K1-10VMicroprismaticPDFIMIESLDTSIZE
22.013.130071200 mm60WBlack3000K1-10VMicroprismaticPDFIMIESLDTSIZE
22.013.340061200 mm60WSilver4000KNoneMicroprismaticPDFIMIESLDTSIZE
22.013.330051200 mm60WSilver3000KNoneMicroprismaticPDFIMIESLDTSIZE
22.013.240041200 mm60WWhite4000KNoneMicroprismaticPDFIMIESLDTSIZE
22.013.230031200 mm60WWhite3000KNoneMicroprismaticPDFIMIESLDTSIZE
22.013.140021200 mm60WBlack4000KNoneMicroprismaticPDFIMIESLDTSIZE
22.013.130011200 mm60WBlack3000KNoneMicroprismaticPDFIMIESLDTSIZE
