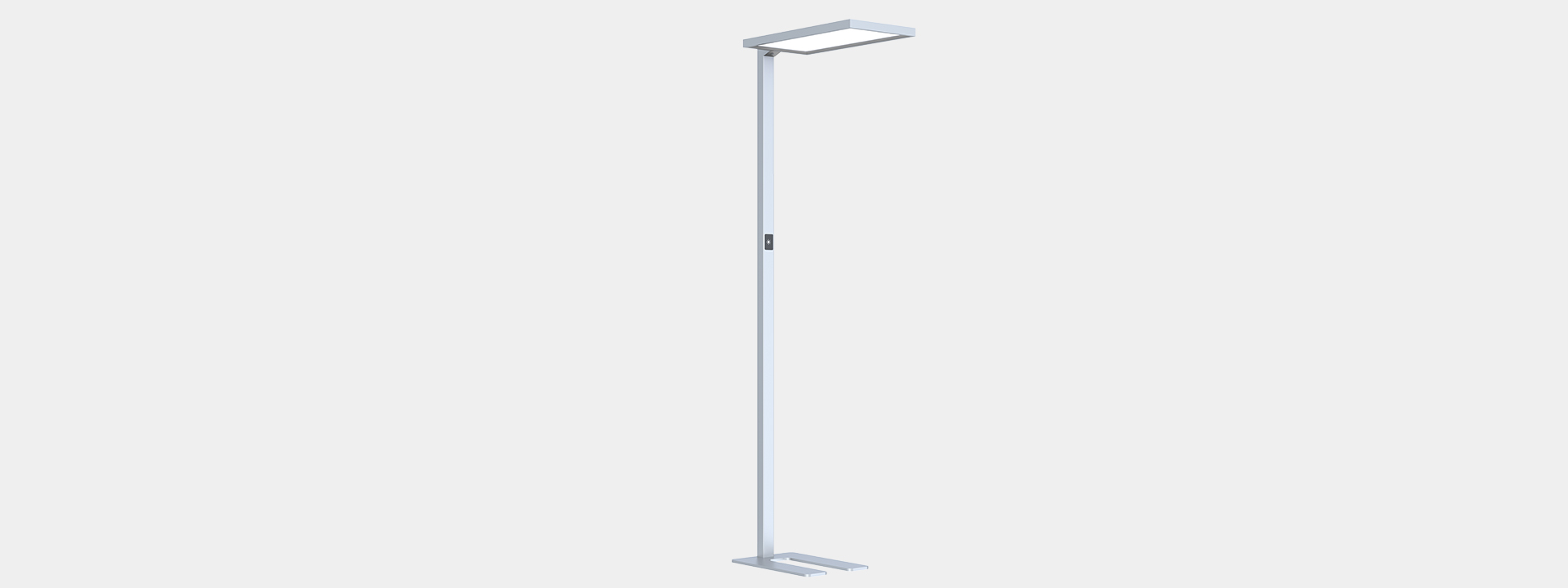

Odin-FS
Modern and simple design style, coupled with exquisite materials and perfect assembly details,the product appearance looks rich in texture.The direct light adopts a diffusion plate with microprism structure to realizeanti-glare function,and 90 degrees(direct), 110 degrees (indirect).
This product is DIY assembled,no need professionals, portable on one side of the desktop, easy to install, flexible for using.
Typicallight efficiencyis 100LM/W,flicker free.Controlled by touching panel,it can realize 50% DIRECT / 50% INDIRECT lighting synchronous dimming. More importantly, it enable to be supported for Intelligent
motion sensor,intelligent constant illumination daylight sensor and wireless control systems such as CASAMBI
The main materials are aluminum profiles, steel plates and PMMA.
| Item NO. | System Power | Surface Finish | Colour temperature | Beam Angle | Sensor | Cover | Downloads |
| 20.013.36054 | 80W | Silver | 3000K~6000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.34053 | 80W | Silver | 4000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.33052 | 80W | Silver | 3000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.26051 | 80W | White | 3000K~6000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.24050 | 80W | White | 4000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.23049 | 80W | White | 3000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.16048 | 80W | Black | 3000K~6000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.14047 | 80W | Black | 4000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.13046 | 80W | Black | 3000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.36045 | 80W | Silver | 3000K~6000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.34044 | 80W | Silver | 4000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.33043 | 80W | Silver | 3000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.26042 | 80W | White | 3000K~6000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.24041 | 80W | White | 4000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.23040 | 80W | White | 3000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.16039 | 80W | Black | 3000K~6000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.14038 | 80W | Black | 4000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.13037 | 80W | Black | 3000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.36036 | 80W | Silver | 3000K~6000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.34035 | 80W | Silver | 4000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.33034 | 80W | Silver | 3000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.26033 | 80W | White | 3000K~6000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.24032 | 80W | White | 4000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.23031 | 80W | White | 3000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.16030 | 80W | Black | 3000K~6000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.14029 | 80W | Black | 4000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.13028 | 80W | Black | 3000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.36027 | 60W | Silver | 3000K~6000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.34026 | 60W | Silver | 4000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.33025 | 60W | Silver | 3000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.26024 | 60W | White | 3000K~6000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.24023 | 60W | White | 4000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.23022 | 60W | White | 3000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.16021 | 60W | Black | 3000K~6000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.14020 | 60W | Black | 4000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.13019 | 60W | Black | 3000K | ↑110°/90°↓ | Daylight & Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.36018 | 60W | Silver | 3000K~6000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.34017 | 60W | Silver | 4000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.33016 | 60W | Silver | 3000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.26015 | 60W | White | 3000K~6000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.24014 | 60W | White | 4000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.23013 | 60W | White | 3000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.16012 | 60W | Black | 3000K~6000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.14011 | 60W | Black | 4000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.13010 | 60W | Black | 3000K | ↑110°/90°↓ | Motion sensor | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.36009 | 60W | Silver | 3000K~6000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.34008 | 60W | Silver | 4000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.33007 | 60W | Silver | 3000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.26006 | 60W | White | 3000K~6000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.24005 | 60W | White | 4000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.23004 | 60W | White | 3000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.16003 | 60W | Black | 3000K~6000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.14002 | 60W | Black | 4000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
| 20.013.13001 | 60W | Black | 3000K | ↑110°/90°↓ | None | Microprismatic | PDFIMIESLDTSIZE |
