Baldur-C
Simple, classic design with excellent craftwork. Appearance with rich texture. Extremely saving installation and maintenance time by revolutionary surface mounted structure.

We offer 350MM,450MM,600MM,900MM for choosing. We use special anti-glare cover, UGR<18,Offering comfortable and soft lights for Indirect to support luminous environment. Typical value up to 110lm/W with fiicker freely. Support smart functions like Motion sensor, 1-10V and Dali dimming, Tunable white and Emergency function.Work with CASAMBI wireless system to support group setting.

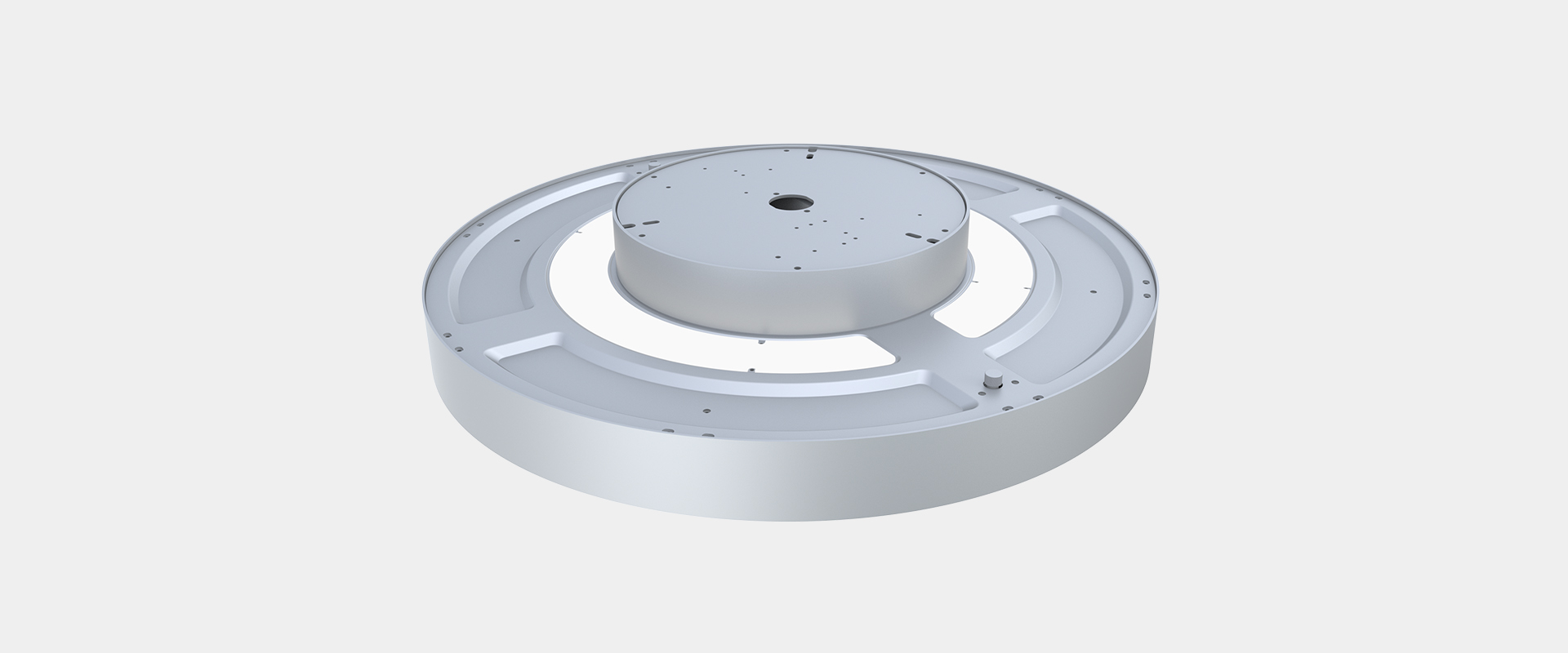

Simply assembling structure, fiexible to support customers’ requirement.Profile aluminum, SGCC, and PC as main materials. Surface mounted installation.

TECHNICAL DATA
System power: 18 W / 30 W / 48 W / 80 W
Luminous flux of luminaire: 1700 lm / 3100 lm / 5250 lm / 9000 lm
Colour temperature: 3000 K / 4000 K
UGR: <15
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • Diameter

    350 mm 450 mm 600 mm 900 mm

  • System Power

    18W 30W 48W 80W

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K

  • Dimming

    None 1-10V Dimming Tric

  • Cover

    Microprismatic
Item NO.DiameterSystem PowerSurface FinishColour temperatureDimmingCoverDownloads
23.004.34090900 mm80WSilver4000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.33089900 mm80WSilver3000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.24088900 mm80WWhite4000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.23087900 mm80WWhite3000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.14086900 mm80WBlack4000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.13085900 mm80WBlack3000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.34084900 mm80WSilver4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.33083900 mm80WSilver3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.24082900 mm80WWhite4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.23081900 mm80WWhite3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.14080900 mm80WBlack4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.13079900 mm80WBlack3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.34078900 mm80WSilver4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.33077900 mm80WSilver3000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.24076900 mm80WWhite4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.23075900 mm80WWhite3000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.14074900 mm80WBlack4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.13073900 mm80WBlack3000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.34072600 mm48WSilver4000KTric MicroprismaticPDFIMIESLDTSIZE
23.004.33071600 mm48WSilver3000KTric MicroprismaticPDFIMIESLDTSIZE
23.004.24070600 mm48WWhite4000KTric MicroprismaticPDFIMIESLDTSIZE
23.004.23069600 mm48WWhite3000KTric MicroprismaticPDFIMIESLDTSIZE
23.004.14068600 mm48WBlack4000KTric MicroprismaticPDFIMIESLDTSIZE
23.004.13067600 mm48WBlack3000KTric MicroprismaticPDFIMIESLDTSIZE
23.004.34066600 mm48WSilver4000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.33065600 mm48WSilver3000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.24064600 mm48WWhite4000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.23063600 mm48WWhite3000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.14062600 mm48WBlack4000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.13061600 mm48WBlack3000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.34060600 mm48WSilver4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.33059600 mm48WSilver3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.24058600 mm48WWhite4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.23057600 mm48WWhite3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.14056600 mm48WBlack4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.13055600 mm48WBlack3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.34054600 mm48WSilver4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.33053600 mm48WSilver3000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.24052600 mm48WWhite4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.23051600 mm48WWhite3000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.14050600 mm48WBlack4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.13049600 mm48WBlack3000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.34048450 mm30WSilver4000KTric MicroprismaticPDFIMIESLDTSIZE
23.004.33047450 mm30WSilver3000KTric MicroprismaticPDFIMIESLDTSIZE
23.004.24046450 mm30WWhite4000KTric MicroprismaticPDFIMIESLDTSIZE
23.004.23045450 mm30WWhite3000KTric MicroprismaticPDFIMIESLDTSIZE
23.004.14044450 mm30WBlack4000KTric MicroprismaticPDFIMIESLDTSIZE
23.004.13043450 mm30WBlack3000KTric MicroprismaticPDFIMIESLDTSIZE
23.004.34042450 mm30WSilver4000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.33041450 mm30WSilver3000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.24040450 mm30WWhite4000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.23039450 mm30WWhite3000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.14038450 mm30WBlack4000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.13037450 mm30WBlack3000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.34036450 mm30WSilver4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.33035450 mm30WSilver3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.24034450 mm30WWhite4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.23033450 mm30WWhite3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.14032450 mm30WBlack4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.13031450 mm30WBlack3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.34030450 mm30WSilver4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.33029450 mm30WSilver3000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.24028450 mm30WWhite4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.23027450 mm30WWhite3000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.14026450 mm30WBlack4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.13025450 mm30WBlack3000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.34024350 mm18WSilver4000KTric MicroprismaticPDFIMIESLDTSIZE
23.004.33023350 mm18WSilver3000KTric MicroprismaticPDFIMIESLDTSIZE
23.004.24022350 mm18WWhite4000KTric MicroprismaticPDFIMIESLDTSIZE
23.004.23021350 mm18WWhite3000KTric MicroprismaticPDFIMIESLDTSIZE
23.004.14020350 mm18WBlack4000KTric MicroprismaticPDFIMIESLDTSIZE
23.004.13019350 mm18WBlack3000KTric MicroprismaticPDFIMIESLDTSIZE
23.004.34018350 mm18WSilver4000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.33017350 mm18WSilver3000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.24016350 mm18WWhite4000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.23015350 mm18WWhite3000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.14014350 mm18WBlack4000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.13013350 mm18WBlack3000KDimmingMicroprismaticPDFIMIESLDTSIZE
23.004.34012350 mm18WSilver4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.33011350 mm18WSilver3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.24010350 mm18WWhite4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.23009350 mm18WSilver3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.14008350 mm18WBlack4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.13007350 mm18WBlack3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.004.34006350 mm18WSilver4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.33005350 mm18WSilver3000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.24004350 mm18WWhite4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.23003350 mm18WWhite3000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.14002350 mm18WBlack4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.004.13001350 mm18WBlack3000KNoneMicroprismaticPDFIMIESLDTSIZE
