Siv-C
With extremely simple design and excellent craftwork, exquisite appearance looks with rich of texture.

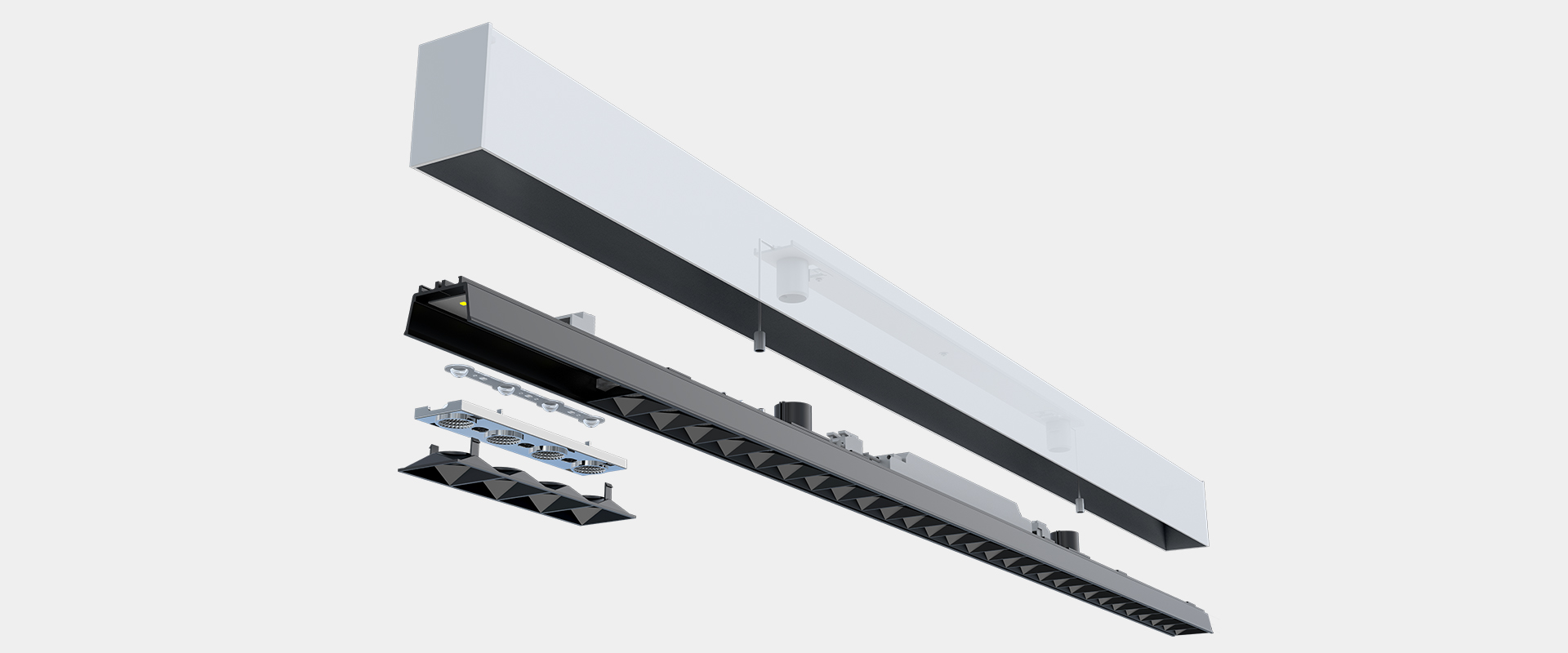

Collocated with micro reflector and anti-glare cover, it can realize 80° beam angle and perfect light cutoff. UGR < 18. Adopting trimless design, independent linear led modules and push-in & push-out structure, lamp is easy for installation and maintenance.

Main material includes aluminum profile and PC. Typical value of light efficiency is 110lm/w, and lighting is of flicker free. Lamp supports 1-10V and DALI dimming.

TECHNICAL DATA
System power: 30 W / 35 W
Luminous flux of luminaire: 3200 lm / 3500 lm
Colour temperature: 3000 K / 4000 K
UGR: <18
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • Length

    1290 mm 1450 mm

  • System Power

    30W 35W

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K

  • UGR

    <18

  • Dimming

    None 1-10V DALI
Item NO.LengthSystem PowerSurface FinishColour temperatureUGRDimmingDownloads
23.006.340361450 mm35WSilver4000K<18DALIPDFIMIESLDTSIZE
23.006.330351450 mm35WSilver3000K<18DALIPDFIMIESLDTSIZE
23.006.240341450 mm35WWhite4000K<18DALIPDFIMIESLDTSIZE
23.006.230331450 mm35WWhite3000K<18DALIPDFIMIESLDTSIZE
23.006.140321450 mm35WBlack4000K<18DALIPDFIMIESLDTSIZE
23.006.130311450 mm35WBlack3000K<18DALIPDFIMIESLDTSIZE
23.006.340301450 mm35WSilver4000K<181-10VPDFIMIESLDTSIZE
23.006.330291450 mm35WSilver3000K<181-10VPDFIMIESLDTSIZE
23.006.240281450 mm35WWhite4000K<181-10VPDFIMIESLDTSIZE
23.006.230271450 mm35WWhite3000K<181-10VPDFIMIESLDTSIZE
23.006.140261450 mm35WBlack4000K<181-10VPDFIMIESLDTSIZE
23.006.130251450 mm35WBlack3000K<181-10VPDFIMIESLDTSIZE
23.006.340241450 mm35WSilver4000K<18NonePDFIMIESLDTSIZE
23.006.330231450 mm35WSilver3000K<18NonePDFIMIESLDTSIZE
23.006.240221450 mm35WWhite4000K<18NonePDFIMIESLDTSIZE
23.006.230211450 mm35WWhite3000K<18NonePDFIMIESLDTSIZE
23.006.140201450 mm35WBlack4000K<18NonePDFIMIESLDTSIZE
23.006.130191450 mm35WBlack3000K<18NonePDFIMIESLDTSIZE
23.006.340181290 mm30WSilver4000K<18DALIPDFIMIESLDTSIZE
23.006.330171290 mm30WSilver3000K<18DALIPDFIMIESLDTSIZE
23.006.240161290 mm30WWhite4000K<18DALIPDFIMIESLDTSIZE
23.006.330151290 mm30WSilver3000K<18DALIPDFIMIESLDTSIZE
23.006.140141290 mm30WBlack4000K<18DALIPDFIMIESLDTSIZE
23.006.130131290 mm30WBlack3000K<18DALIPDFIMIESLDTSIZE
23.006.340121290 mm30WSilver4000K<181-10VPDFIMIESLDTSIZE
23.006.330111290 mm30WSilver3000K<181-10VPDFIMIESLDTSIZE
23.006.240101290 mm30WWhite4000K<181-10VPDFIMIESLDTSIZE
23.006.230091290 mm30WWhite3000K<181-10VPDFIMIESLDTSIZE
23.006.140081290 mm30WBlack4000K<181-10VPDFIMIESLDTSIZE
23.006.130071290 mm30WBlack3000K<181-10VPDFIMIESLDTSIZE
23.006.340061290 mm30WSilver4000K<18NonePDFIMIESLDTSIZE
23.006.330051290 mm30WSilver3000K<18NonePDFIMIESLDTSIZE
23.006.240041290 mm30WWhite4000K<18NonePDFIMIESLDTSIZE
23.006.230031290 mm30WWhite3000K<18NonePDFIMIESLDTSIZE
23.006.140021290 mm30WBlack4000K<18NonePDFIMIESLDTSIZE
23.006.130011290 mm30WBlack3000K<18NonePDFIMIESLDTSIZE
