Siv-T
We designed Siv floor with a concept of Simple, Fashionable and imaginative. Also with excellent craftwork and strict standard for materials. Appearance with rich texture. We use special Micro reflector and anti-glare cover, UGR<12, comfortable and soft lights distribution by different beam angle for Direct 80° & Indirect 140°.

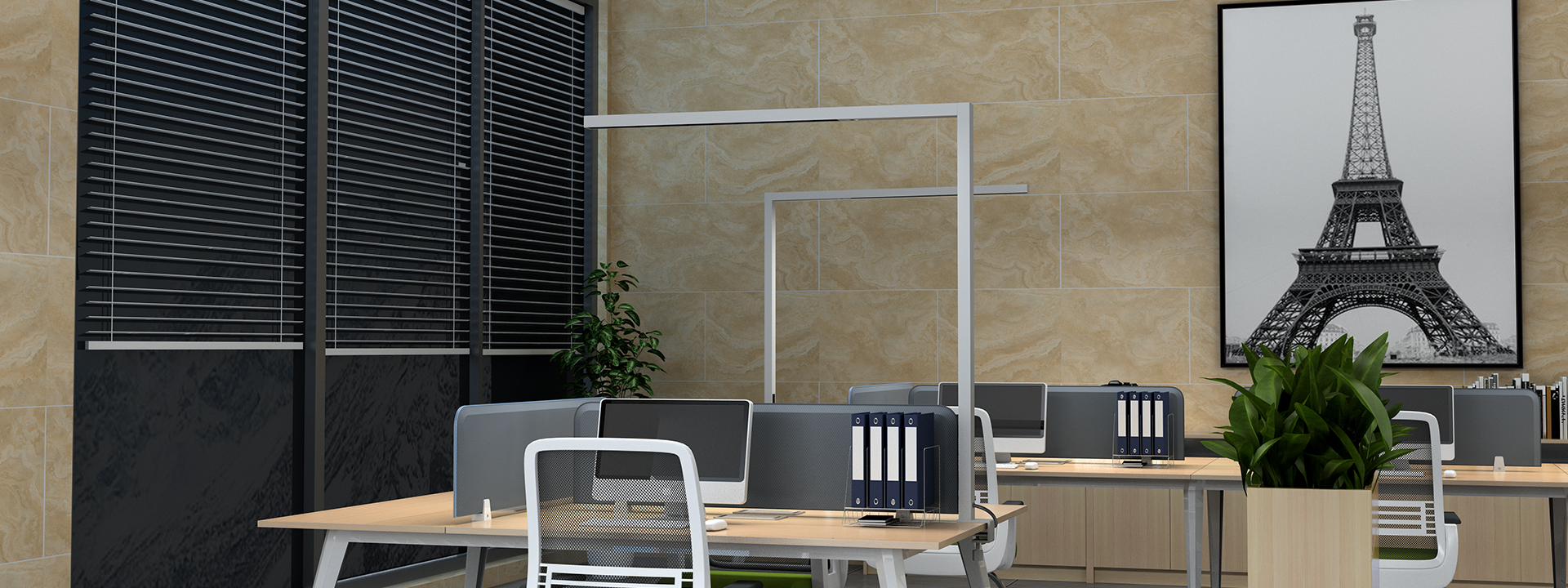

Suitable for two desks of 1*2m offering uniform lighting on eye areas with assembled base. With special bracket, light can be easily fixed at desk edge and is convenient for using.

Typical value up to 120lm/W with flicker freely. Separate control for Direct & Indirect lights, Work with CASAMBI wireless system to support group setting. Support smart functions like Motion sensor, Daylight sensor with constant lux for eyes area, Tunable white.

Profile aluminum, steel, and PC as main materials. Easy to move and put on the edge of desk based on DIY. No need professional electrician. Apply for big office like open-plan office, Individual office and some eye areas from small office.

TECHNICAL DATA
System power: 80 W
Luminous flux of luminaire: 9600 lm
Colour temperature: 3000 K / 4000 K / 3000~6000 K Tunable
UGR: <12
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20

Filter options

  • System Power

    80W

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K 3000K~6000K

  • Beam Angle

    ↑140°/80°↓ ↑140°/50°↓

  • UGR

    <12

  • Sensor

    Daylight & Motion sensor
Item NO.System PowerSurface FinishColour temperatureBeam AngleUGRSensorDownloads
21.001.3601880WSilver3000K~6000K↑140°/50°↓<12Daylight & Motion sensorPDFIMIESLDTSIZE
21.001.3401780WSilver4000K↑140°/50°↓<12Daylight & Motion sensorPDFIMIESLDTSIZE
21.001.3301680WSilver3000K↑140°/50°↓<12Daylight & Motion sensorPDFIMIESLDTSIZE
21.001.2601580WWhite3000K~6000K↑140°/50°↓<12Daylight & Motion sensorPDFIMIESLDTSIZE
21.001.2401480WWhite4000K↑140°/50°↓<12Daylight & Motion sensorPDFIMIESLDTSIZE
21.001.2301380WWhite3000K↑140°/50°↓<12Daylight & Motion sensorPDFIMIESLDTSIZE
21.001.1601280WBlack3000K~6000K↑140°/50°↓<12Daylight & Motion sensorPDFIMIESLDTSIZE
21.001.1401180WBlack4000K↑140°/50°↓<12Daylight & Motion sensorPDFIMIESLDTSIZE
21.001.1301080WBlack3000K↑140°/50°↓<12Daylight & Motion sensorPDFIMIESLDTSIZE
21.001.3600980WSilver3000K~6000K↑140°/80°↓<12Daylight & Motion sensorPDFIMIESLDTSIZE
21.001.3400880WSilver4000K↑140°/80°↓<12Daylight & Motion sensorPDFIMIESLDTSIZE
21.001.3300780WSilver3000K↑140°/80°↓<12Daylight & Motion sensorPDFIMIESLDTSIZE
21.001.2600680WWhite3000K~6000K↑140°/80°↓<12Daylight & Motion sensorPDFIMIESLDTSIZE
21.001.2400580WWhite4000K↑140°/80°↓<12Daylight & Motion sensorPDFIMIESLDTSIZE
21.001.2300480WWhite3000K↑140°/80°↓<12Daylight & Motion sensorPDFIMIESLDTSIZE
21.001.1600380WBlack3000K~6000K↑140°/80°↓<12Daylight & Motion sensorPDFIMIESLDTSIZE
21.001.1400280WBlack4000K↑140°/80°↓<12Daylight & Motion sensorPDFIMIESLDTSIZE
21.001.1300180WBlack3000K↑140°/80°↓<12Daylight & Motion sensorPDFIMIESLDTSIZE
