Freyr-R0_RECESSED-light artisan

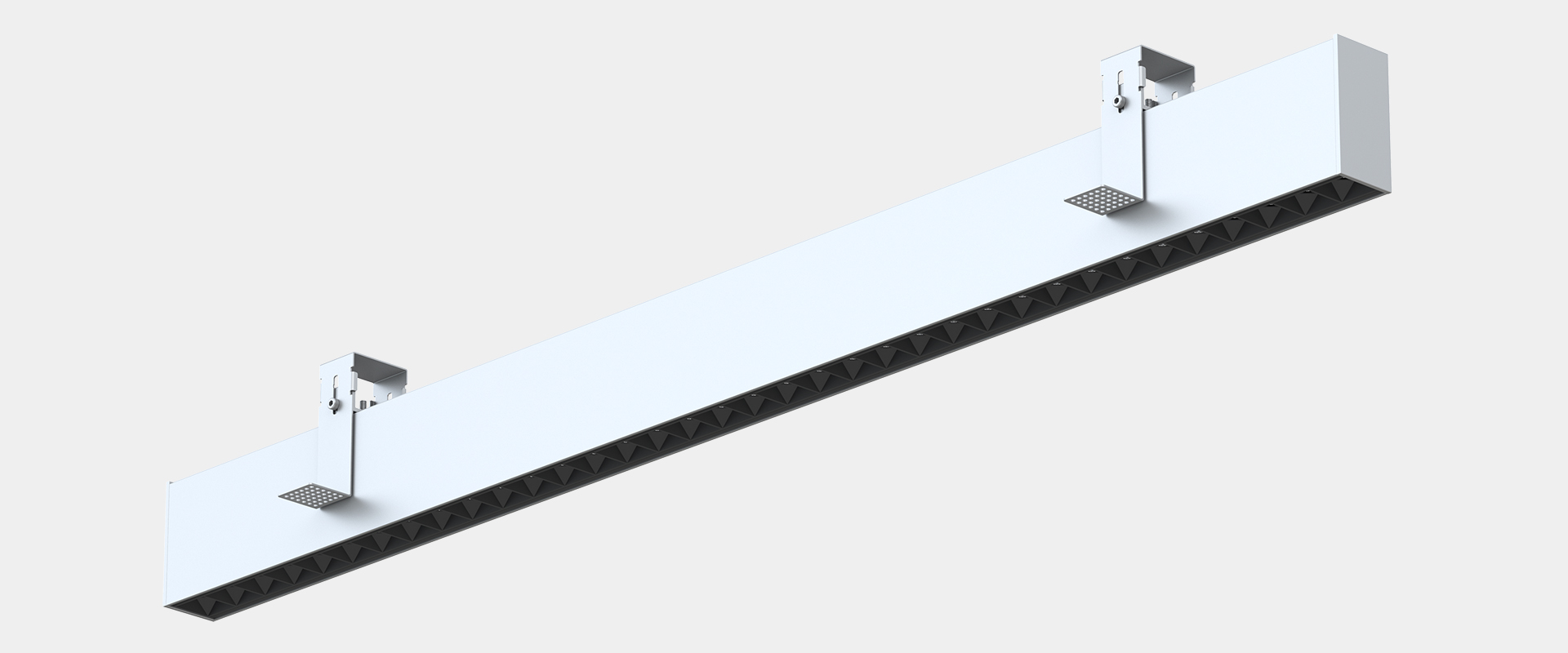

Freyr-R0
With extremely simple design and excellent craftwork, exquisite appearance looks with rich of texture.

Collocated with micro refiector and anti-glare cover, it can realize 50° beam angle and perfect light cutoff. UGR value is as low as 10. Adopting structure of trimed design, independent linear led modules and push-in & push-out structure, lamp is easy for installation and maintenance. Main material includes aluminum profile and PC.

Typical value of light efficiency is 100lm/w, and lighting is of fiicker free. Lamp supports 1-10V and DALI dimming. Adopting trimless and recessed installation.

TECHNICAL DATA
System power: 30 W / 40 W
Luminous flux of luminaire: 3000 lm / 4000 lm
Colour temperature: 3000 K / 4000 K
UGR: <10
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20

Item NO.	System Power	Length	Surface Finish	Colour temperature	UGR	Dimming	Downloads
24.006.34036	40W	1172 mm	Silver	4000K	<10	DALI	PDF IM IES LDT SIZE
24.006.33035	40W	1172 mm	Silver	3000K	<10	DALI	PDF IM IES LDT SIZE
24.006.24034	40W	1172 mm	White	4000K	<10	DALI	PDF IM IES LDT SIZE
24.006.23033	40W	1172 mm	White	3000K	<10	DALI	PDF IM IES LDT SIZE
24.006.14032	40W	1172 mm	Black	4000K	<10	DALI	PDF IM IES LDT SIZE
24.006.13031	40W	1172 mm	Black	3000K	<10	DALI	PDF IM IES LDT SIZE
24.006.34030	40W	1172 mm	Silver	4000K	<10	1-10V	PDF IM IES LDT SIZE
24.006.33029	40W	1172 mm	Silver	3000K	<10	1-10V	PDF IM IES LDT SIZE
24.006.24028	40W	1172 mm	White	4000K	<10	1-10V	PDF IM IES LDT SIZE
24.006.23027	40W	1172 mm	White	3000K	<10	1-10V	PDF IM IES LDT SIZE
24.006.14026	40W	1172 mm	Black	4000K	<10	1-10V	PDF IM IES LDT SIZE
24.006.13025	40W	1172 mm	Black	3000K	<10	1-10V	PDF IM IES LDT SIZE
24.006.34024	40W	1172 mm	Silver	4000K	<10	None	PDF IM IES LDT SIZE
24.006.33023	40W	1172 mm	Silver	3000K	<10	None	PDF IM IES LDT SIZE
24.006.24022	40W	1172 mm	White	4000K	<10	None	PDF IM IES LDT SIZE
24.006.23021	40W	1172 mm	White	3000K	<10	None	PDF IM IES LDT SIZE
24.006.14020	40W	1172 mm	Black	4000K	<10	None	PDF IM IES LDT SIZE
24.006.13019	40W	1172 mm	Black	3000K	<10	None	PDF IM IES LDT SIZE
24.006.34018	30W	960 mm	Silver	4000K	<10	DALI	PDF IM IES LDT SIZE
24.006.33017	30W	960 mm	Silver	3000K	<10	DALI	PDF IM IES LDT SIZE
24.006.24016	30W	960 mm	White	4000K	<10	DALI	PDF IM IES LDT SIZE
24.006.23015	30W	960 mm	White	3000K	<10	DALI	PDF IM IES LDT SIZE
24.006.14014	30W	960 mm	Black	4000K	<10	DALI	PDF IM IES LDT SIZE
24.006.13013	30W	960 mm	Black	3000K	<10	DALI	PDF IM IES LDT SIZE
24.006.34012	30W	960 mm	Silver	4000K	<10	1-10V	PDF IM IES LDT SIZE
24.006.33011	30W	960 mm	Silver	3000K	<10	1-10V	PDF IM IES LDT SIZE
24.006.24010	30W	960 mm	White	4000K	<10	1-10V	PDF IM IES LDT SIZE
24.006.23009	30W	960 mm	White	3000K	<10	1-10V	PDF IM IES LDT SIZE
24.006.14008	30W	960 mm	Black	4000K	<10	1-10V	PDF IM IES LDT SIZE
24.006.13007	30W	960 mm	Black	3000K	<10	1-10V	PDF IM IES LDT SIZE
24.006.34006	30W	960 mm	Silver	4000K	<10	None	PDF IM IES LDT SIZE
24.006.33005	30W	960 mm	Silver	3000K	<10	None	PDF IM IES LDT SIZE
24.006.24004	30W	960 mm	White	4000K	<10	None	PDF IM IES LDT SIZE
24.006.23003	30W	960 mm	White	3000K	<10	None	PDF IM IES LDT SIZE
24.006.14002	30W	960 mm	Black	4000K	<10	None	PDF IM IES LDT SIZE
24.006.13001	30W	960 mm	Black	3000K	<10	None	PDF IM IES LDT SIZE
