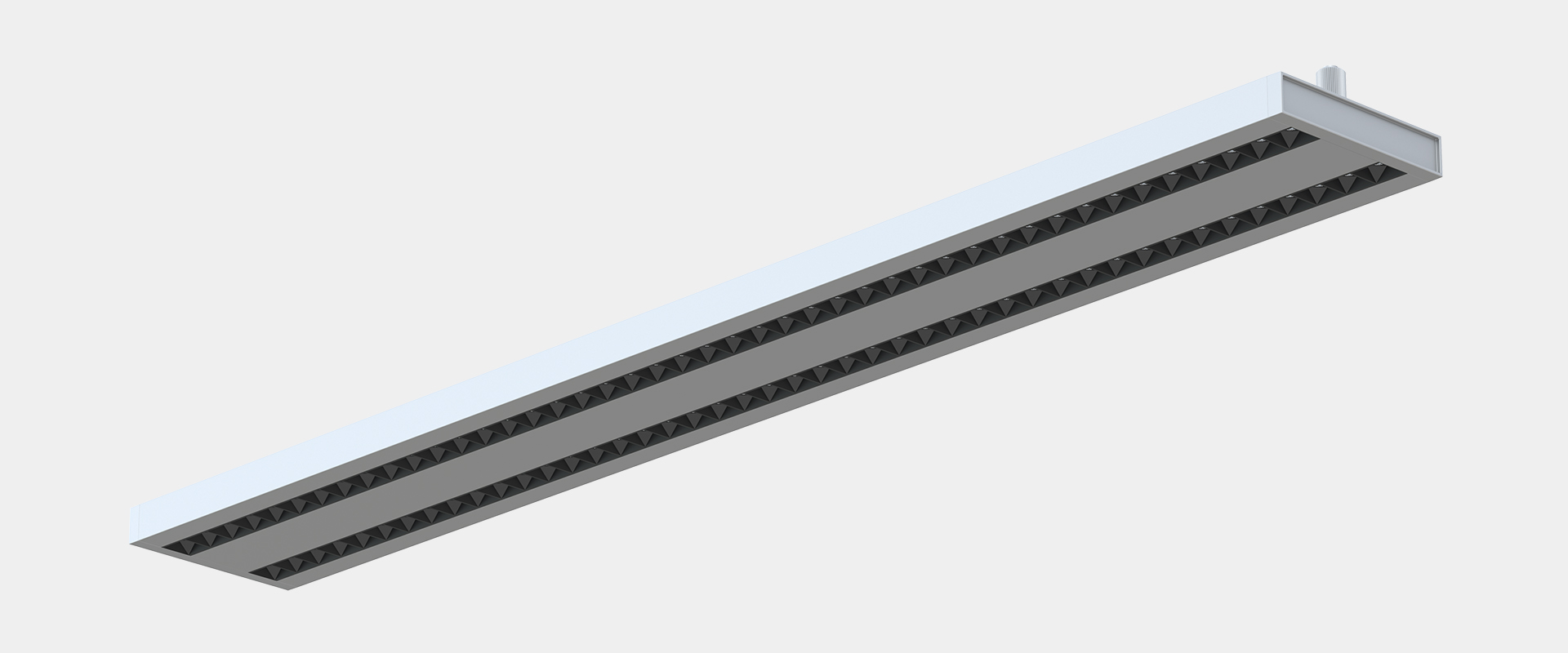

Freyr-C1
With extremely simple design and excellent craftwork, exquisite appearance looks with rich of texture.

Collocated with microrefiector and anti-glare cover, it can realize 50°(Direct) beam angle and perfect light cutoff. UGR value is as low as 10.

Main material includes aluminum profile and PC.

Typical value of light efficiency is 110lm/w, and lighting is of fiicker free. Lamp supports 1-10V and DALI dimming. Tunable white can be realized. Adopting surfaced mounted installation.


TECHNICAL DATA
System power: 40 W
Luminous flux of luminaire: 4500 lm
Colour temperature: 3000 K / 4000 K
UGR: <10
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • Length

    1190 mm

  • System Power

    40W

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K

  • UGR

    <10

  • Dimming

    None 1-10V DALI
Item NO.LengthSystem PowerSurface FinishColour temperatureUGRDimmingDownloads
23.009.340181190 mm40WSilver4000K<10DALIPDFIMIESLDTSIZE
23.009.330171190 mm40WSilver3000K<10DALIPDFIMIESLDTSIZE
23.009.240161190 mm40WWhite4000K<10DALIPDFIMIESLDTSIZE
23.009.230151190 mm40WWhite3000K<10DALIPDFIMIESLDTSIZE
23.009.140141190 mm40WBlack4000K<10DALIPDFIMIESLDTSIZE
23.009.130131190 mm40WBlack3000K<10DALIPDFIMIESLDTSIZE
23.009.340121190 mm40WSilver4000K<101-10VPDFIMIESLDTSIZE
23.009.330111190 mm40WSilver3000K<101-10VPDFIMIESLDTSIZE
23.009.240101190 mm40WWhite4000K<101-10VPDFIMIESLDTSIZE
23.009.230091190 mm40WWhite3000K<101-10VPDFIMIESLDTSIZE
23.009.140081190 mm40WBlack4000K<101-10VPDFIMIESLDTSIZE
23.009.130071190 mm40WBlack3000K<101-10VPDFIMIESLDTSIZE
23.009.340061190 mm40WSilver4000K<10NonePDFIMIESLDTSIZE
23.009.330051190 mm40WSilver3000K<10NonePDFIMIESLDTSIZE
23.009.240041190 mm40WWhite4000K<10NonePDFIMIESLDTSIZE
23.009.230031190 mm40WWhite3000K<10NonePDFIMIESLDTSIZE
23.009.140021190 mm40WBlack4000K<10NonePDFIMIESLDTSIZE
23.009.130011190 mm40WBlack3000K<10NonePDFIMIESLDTSIZE
