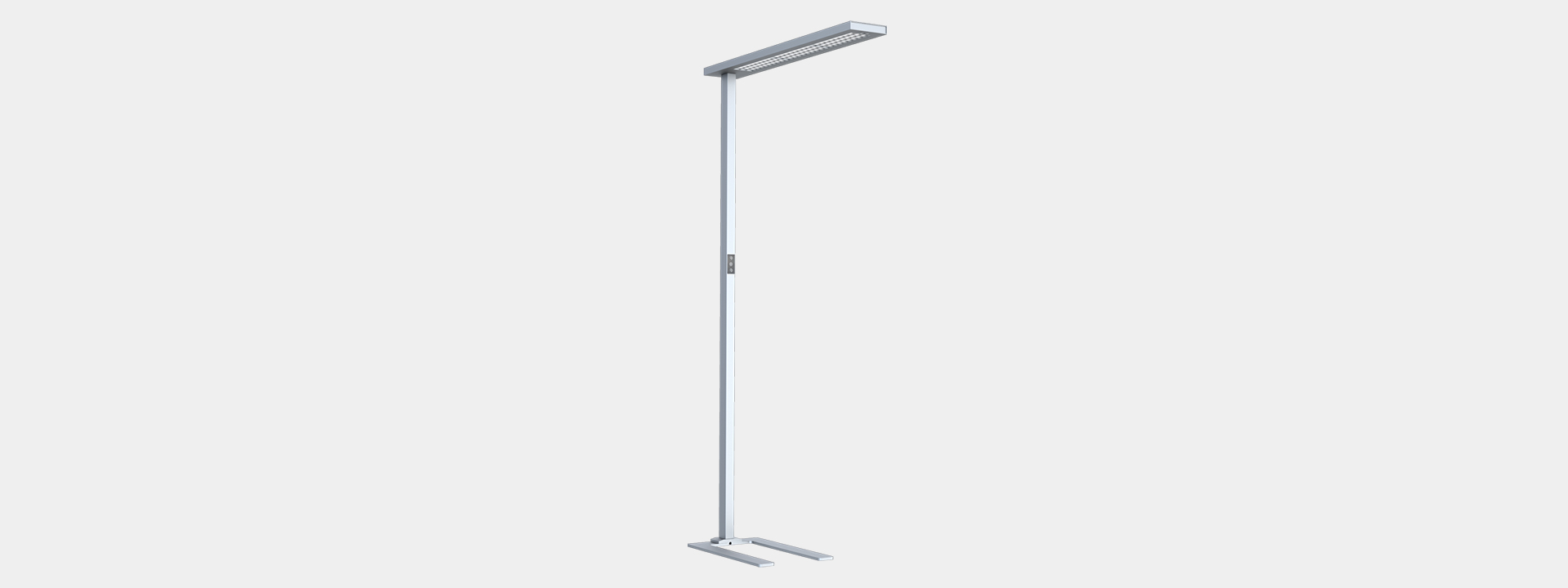

Frigg-F

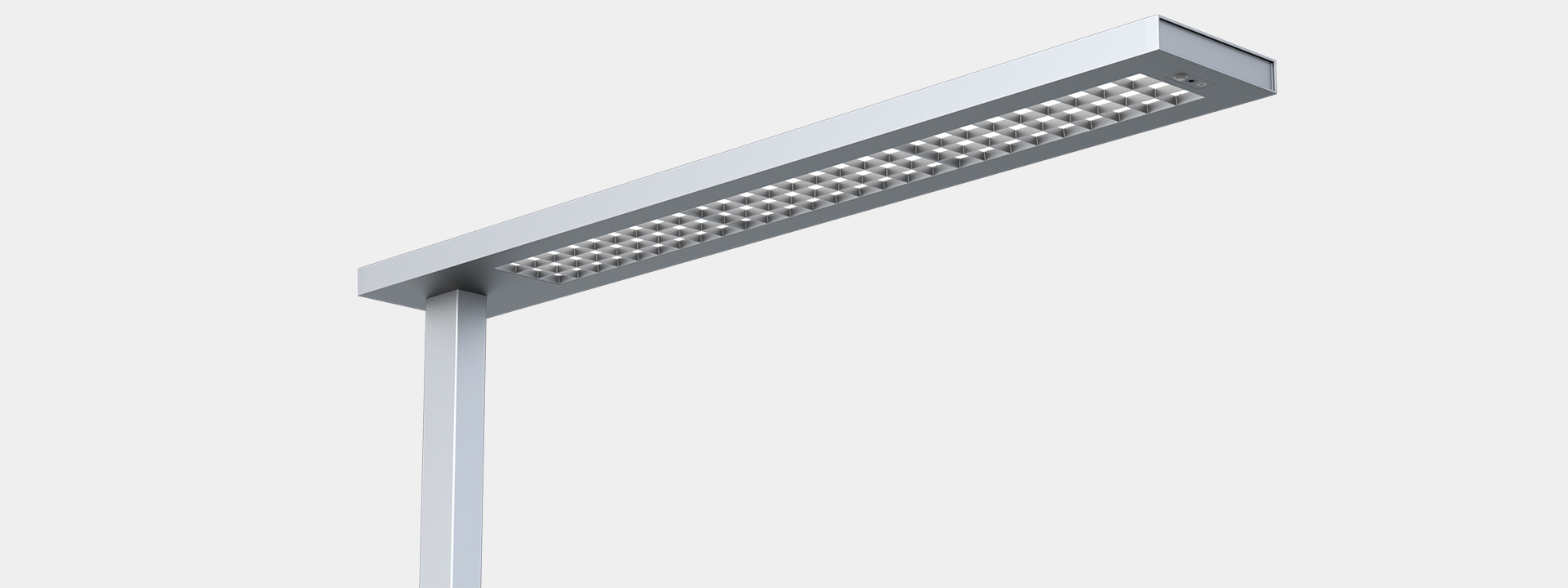

Frigg-F illuminating part is achieved based on the traditional grid design, using LED technology and optimizing the structure and anti-glare design, lens and high reflectivity PC molding material built-in to improve the uniformity and efficiency of light. Middle layer equips with a diffuser plate and a prism transparent plate to achieve uniformity of illumination and reduce glare value to less 14 for UGR .

The outermost layer is further equipped with a square anti-glare cover to perform CUTOFF treatment on the residual light. Achieve a uniform, soft, comfortable and low glare lighting effect. Equip with high-power indirect illuminating to provide much more comfortable lights for ambient space via wider beam angle.

Total power 100W, direct light 25W and indirect light 75W, controlled individually, and support Smart functions like Daylight sensor and motion sensor functions, tunable white, customized wireless control systems like CASAMBI, SWARM,etc..

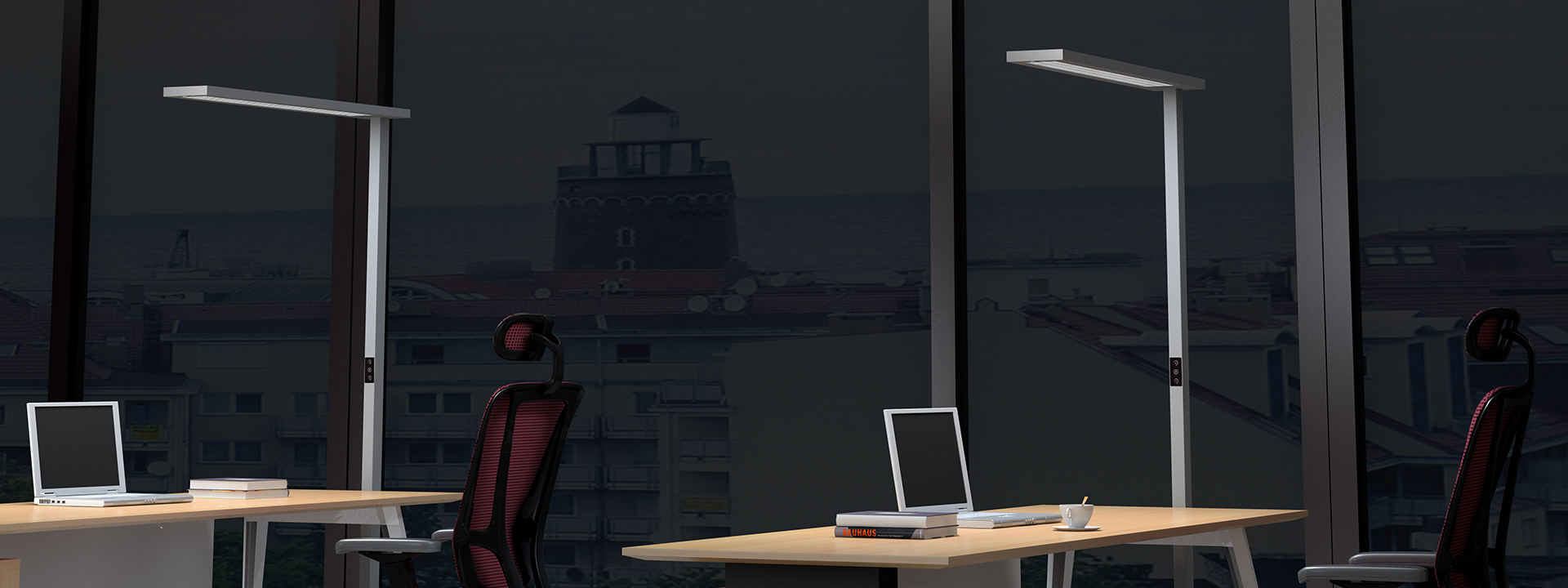

KISS-F light efficiency reach 110LM/W which can realize the illumination of two desks with 0.8*1.6 meters, and can realize the illumination of one office space of about 20 square meters, and the light distribution effect of desktop and space is better than other same industry products.

TECHNICAL DATA
System power: 100 W
Luminous flux of luminaire: 10750 lm
Colour temperature: 3000 K / 4000 K
UGR: <14
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options
  • System Power

    80W 100W
  • Surface Finish

    Black White Silver
  • Colour temperature

    3000K 4000K 3000K~6000K
  • Beam Angle

    ↑140°/85°↓
  • UGR

    <14
  • Sensor

    Daylight & Motion sensor
Item NO.System PowerSurface FinishColour temperatureBeam AngleUGRSensorDownloads
20.008.36018100WSilver3000K~6000K↑140°/85°↓<14Daylight & Motion sensorPDFIMIESLDTSIZE
20.008.34017100WSilver4000K↑140°/85°↓<14Daylight & Motion sensorPDFIMIESLDTSIZE
20.008.33016100WSilver3000K↑140°/85°↓<14Daylight & Motion sensorPDFIMIESLDTSIZE
20.008.26015100WWhite3000K~6000K↑140°/85°↓<14Daylight & Motion sensorPDFIMIESLDTSIZE
20.008.24014100WWhite4000K↑140°/85°↓<14Daylight & Motion sensorPDFIMIESLDTSIZE
20.008.23013100WWhite3000K↑140°/85°↓<14Daylight & Motion sensorPDFIMIESLDTSIZE
20.008.16012100WBlack3000K~6000K↑140°/85°↓<14Daylight & Motion sensorPDFIMIESLDTSIZE
20.008.14011100WBlack4000K↑140°/85°↓<14Daylight & Motion sensorPDFIMIESLDTSIZE
20.008.13010100WBlack3000K↑140°/85°↓<14Daylight & Motion sensorPDFIMIESLDTSIZE
20.008.3600980WSilver3000K~6000K↑140°/85°↓<14Daylight & Motion sensorPDFIMIESLDTSIZE
20.008.3400880WSilver4000K↑140°/85°↓<14Daylight & Motion sensorPDFIMIESLDTSIZE
20.008.3300780WSilver3000K↑140°/85°↓<14Daylight & Motion sensorPDFIMIESLDTSIZE
20.008.2600680WWhite3000K~6000K↑140°/85°↓<14Daylight & Motion sensorPDFIMIESLDTSIZE
20.008.2400580WWhite4000K↑140°/85°↓<14Daylight & Motion sensorPDFIMIESLDTSIZE
20.008.2300480WWhite3000K↑140°/85°↓<14Daylight & Motion sensorPDFIMIESLDTSIZE
20.008.1600380WBlack3000K~6000K↑140°/85°↓<14Daylight & Motion sensorPDFIMIESLDTSIZE
20.008.1400280WBlack4000K↑140°/85°↓<14Daylight & Motion sensorPDFIMIESLDTSIZE
20.008.1300180WBlack3000K↑140°/85°↓<14Daylight & Motion sensorPDFIMIESLDTSIZE
