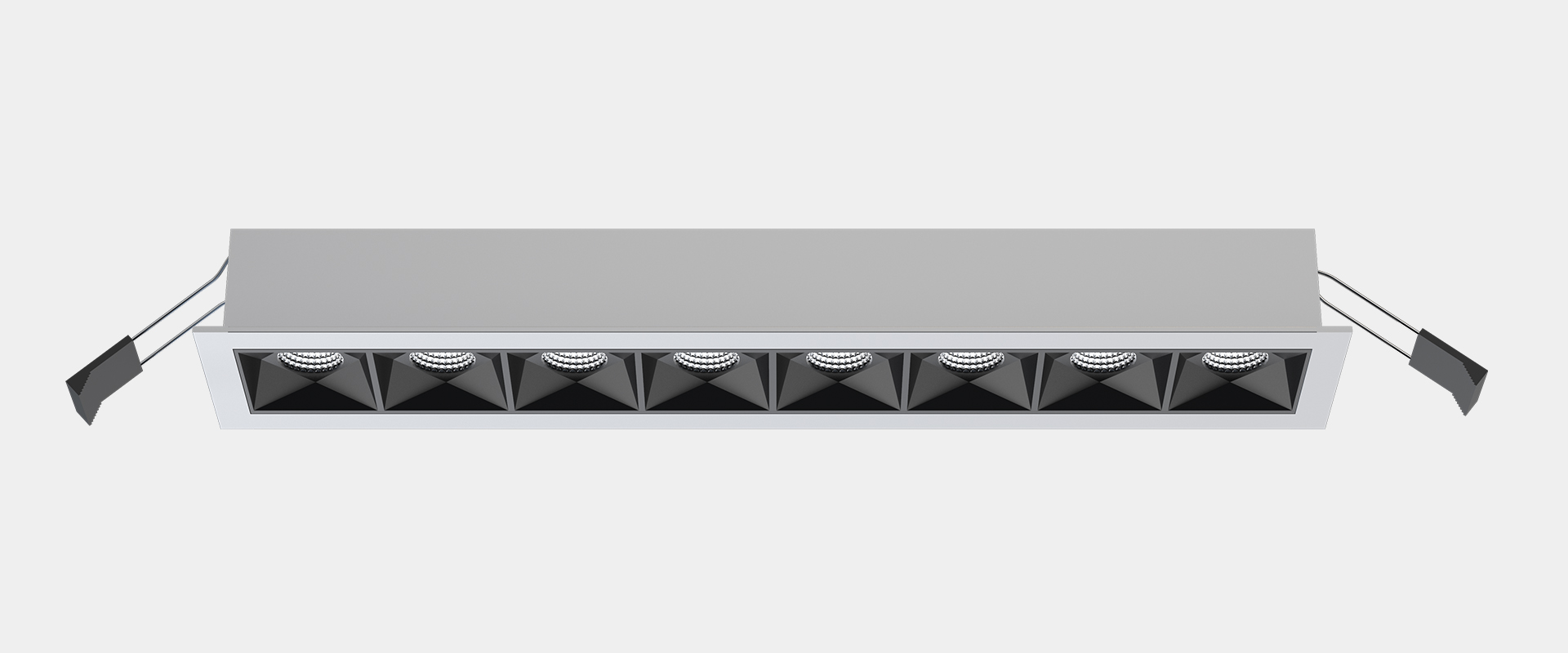

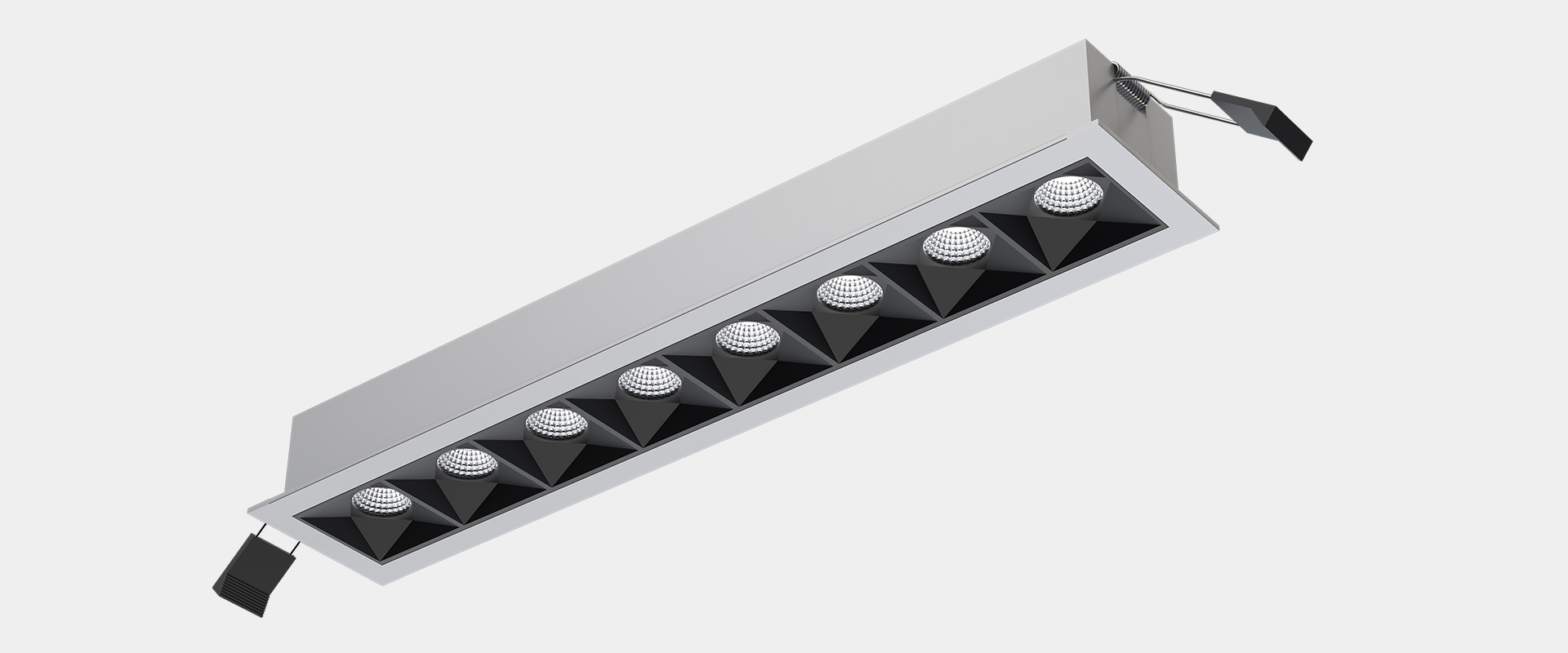

Siv-D5
With extremely simple design and excellent craftwork, exquisite appearance looks with rich of texture.

Collocated with micro refiector and anti-glare cover, it can realize55°beam angle and perfect light cutoff. UGR value is as low as 18.

lamp is easy for installation and maintenance.Main material includes aluminum profile and PC. Typical value of light efficiency is
130lm/w, and lighting is of fiicker free. Lamp supports 1-10V and DALI dimming.

TECHNICAL DATA
System power: 12W
Luminous flux of luminaire: 1552 lm
Colour temperature: 3000 K / 4000 K
UGR: <18
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • Length

    342 mm

  • System Power

    12W

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K

  • UGR

    <18

  • Dimming

    None 1-10V DALI
Item NO.LengthSystem PowerSurface FinishColour temperatureUGRDimmingDownloads
24.004.34018342 mm12WSilver4000K<18DALIPDFIMIESLDTSIZE
24.004.33017342 mm12WSilver3000K<18DALIPDFIMIESLDTSIZE
24.004.24016342 mm12WWhite4000K<18DALIPDFIMIESLDTSIZE
24.004.23015342 mm12WWhite3000K<18DALIPDFIMIESLDTSIZE
24.004.14014342 mm12WBlack4000K<18DALIPDFIMIESLDTSIZE
24.004.13013342 mm12WBlack3000K<18DALIPDFIMIESLDTSIZE
24.004.34012342 mm12WSilver4000K<181-10VPDFIMIESLDTSIZE
24.004.33011342 mm12WSilver3000K<181-10VPDFIMIESLDTSIZE
24.004.24010342 mm12WWhite4000K<181-10VPDFIMIESLDTSIZE
24.004.23009342 mm12WWhite3000K<181-10VPDFIMIESLDTSIZE
24.004.14008342 mm12WBlack4000K<181-10VPDFIMIESLDTSIZE
24.004.13007342 mm12WBlack3000K<181-10VPDFIMIESLDTSIZE
24.004.34006342 mm12WSilver4000K<18NonePDFIMIESLDTSIZE
24.004.33005342 mm12WSilver3000K<18NonePDFIMIESLDTSIZE
24.004.24004342 mm12WWhite4000K<18NonePDFIMIESLDTSIZE
24.004.23003342 mm12WWhite3000K<18NonePDFIMIESLDTSIZE
24.004.14002342 mm12WBlack4000K<18NonePDFIMIESLDTSIZE
24.004.13001342 mm12WBlack3000K<18NonePDFIMIESLDTSIZE
