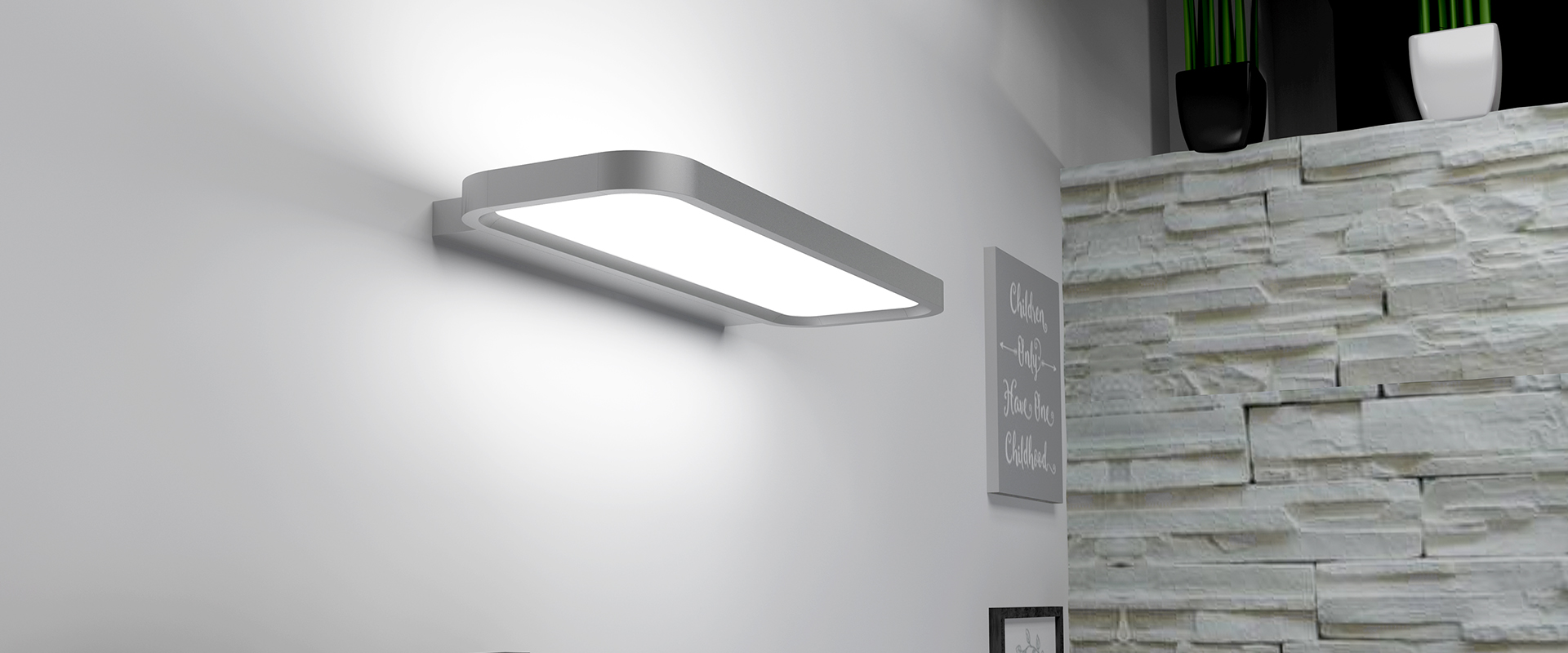

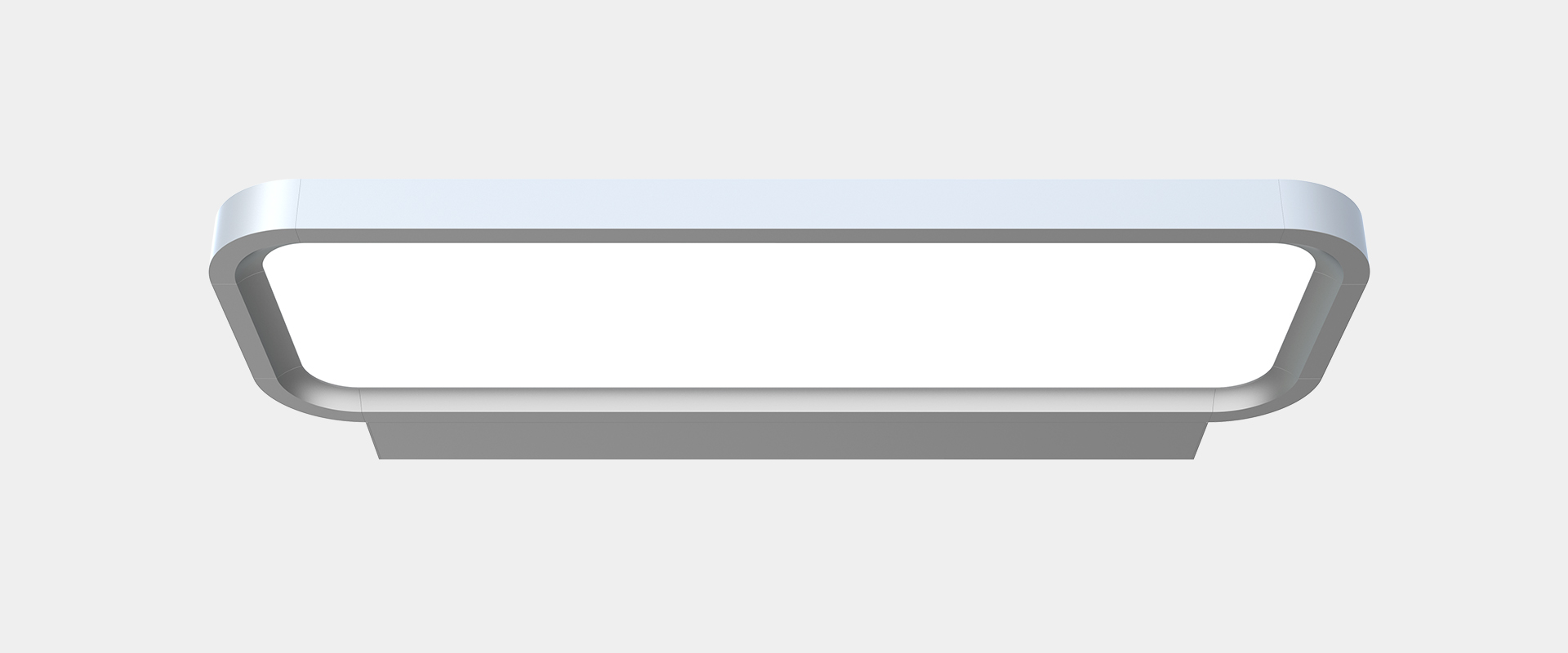

Odin-WR
Modern and simple design style, coupled with exquisite materials and perfect assembly details, the product appearance looks rich in texture.

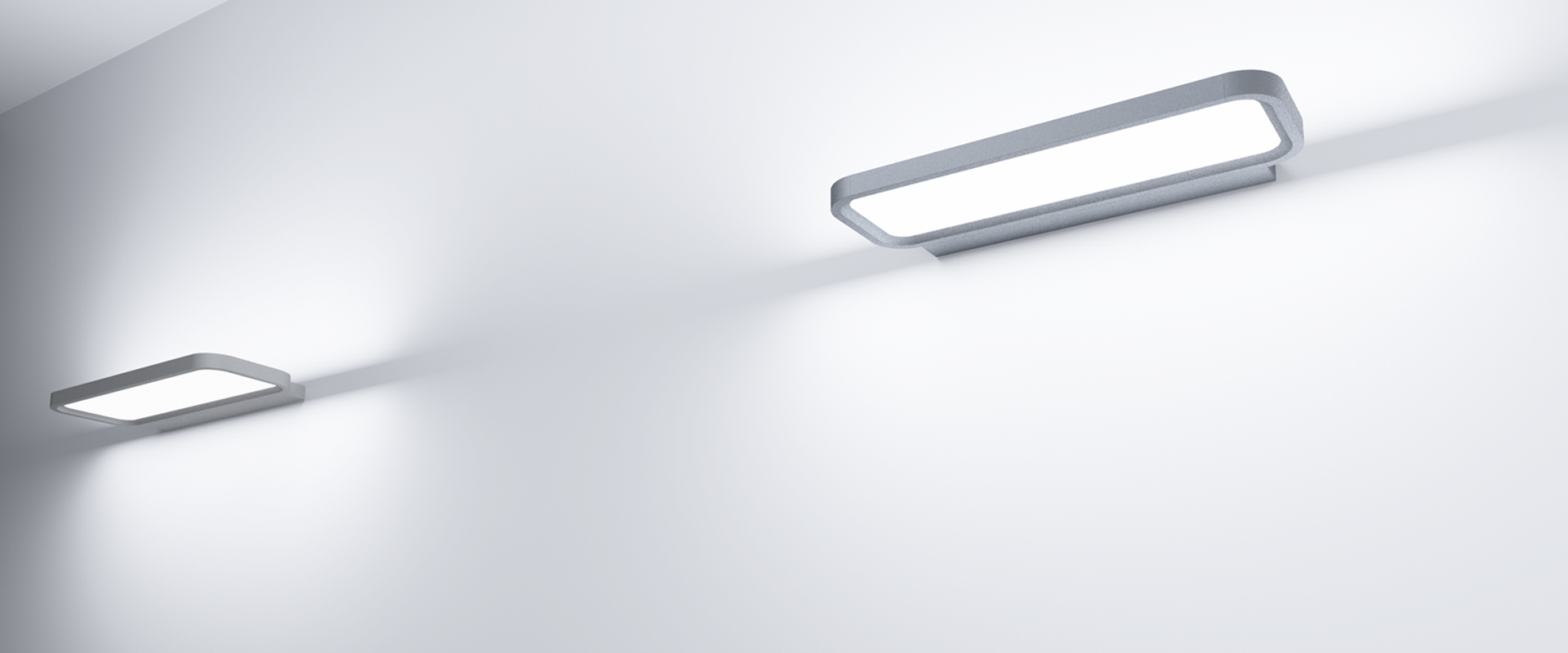

The direct light adopts a diffusion plate with microprism structure to realizeanti-glare function, and 90 degrees(direct), 110 degrees (indirect). Wall mounted installation, very simple and convenient.

Typical light efficiency 90LM/W, flicker free,50% DIRECT / 50% INDIRECT lighting.It can realize 1-10V or DALI synchronous dimming, and main materials are aluminum profiles and PMMA.Designed with Round corner.

TECHNICAL DATA
System power: 40 W
Luminous flux of luminaire: 3600 lm
Colour temperature: 3000 K / 4000 K
UGR: <18
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • System Power

    40W

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K

  • Dimming

    None 1-10V DALI

  • UGR

    <18

  • Cover

    Microprismatic
Item NO.System PowerSurface FinishColour temperatureDimmingUGRCoverDownloads
25.003.3401840WSilver4000KDALI<18MicroprismaticPDFIMIESLDTSIZE
25.003.3301740WSilver3000KDALI<18MicroprismaticPDFIMIESLDTSIZE
25.003.2401640WWhite4000KDALI<18MicroprismaticPDFIMIESLDTSIZE
25.003.2301540WWhite3000KDALI<18MicroprismaticPDFIMIESLDTSIZE
25.003.1401440WBlack4000KDALI<18MicroprismaticPDFIMIESLDTSIZE
25.003.1301340WBlack3000KDALI<18MicroprismaticPDFIMIESLDTSIZE
25.003.3401240WSilver4000K1-10V<18MicroprismaticPDFIMIESLDTSIZE
25.003.3301140WSilver3000K1-10V<18MicroprismaticPDFIMIESLDTSIZE
25.003.2401040WWhite4000K1-10V<18MicroprismaticPDFIMIESLDTSIZE
25.003.2300940WWhite3000K1-10V<18MicroprismaticPDFIMIESLDTSIZE
25.003.1400840WBlack4000K1-10V<18MicroprismaticPDFIMIESLDTSIZE
25.003.1300740WBlack3000K1-10V<18MicroprismaticPDFIMIESLDTSIZE
25.003.3400640WSilver4000KNone<18MicroprismaticPDFIMIESLDTSIZE
25.003.3300540WSilver3000KNone<18MicroprismaticPDFIMIESLDTSIZE
25.003.2400440WWhite4000KNone<18MicroprismaticPDFIMIESLDTSIZE
25.003.2300340WWhite3000KNone<18MicroprismaticPDFIMIESLDTSIZE
25.003.1400240WBlack4000KNone<18MicroprismaticPDFIMIESLDTSIZE
25.003.1300140WBlack3000KNone<18MicroprismaticPDFIMIESLDTSIZE
