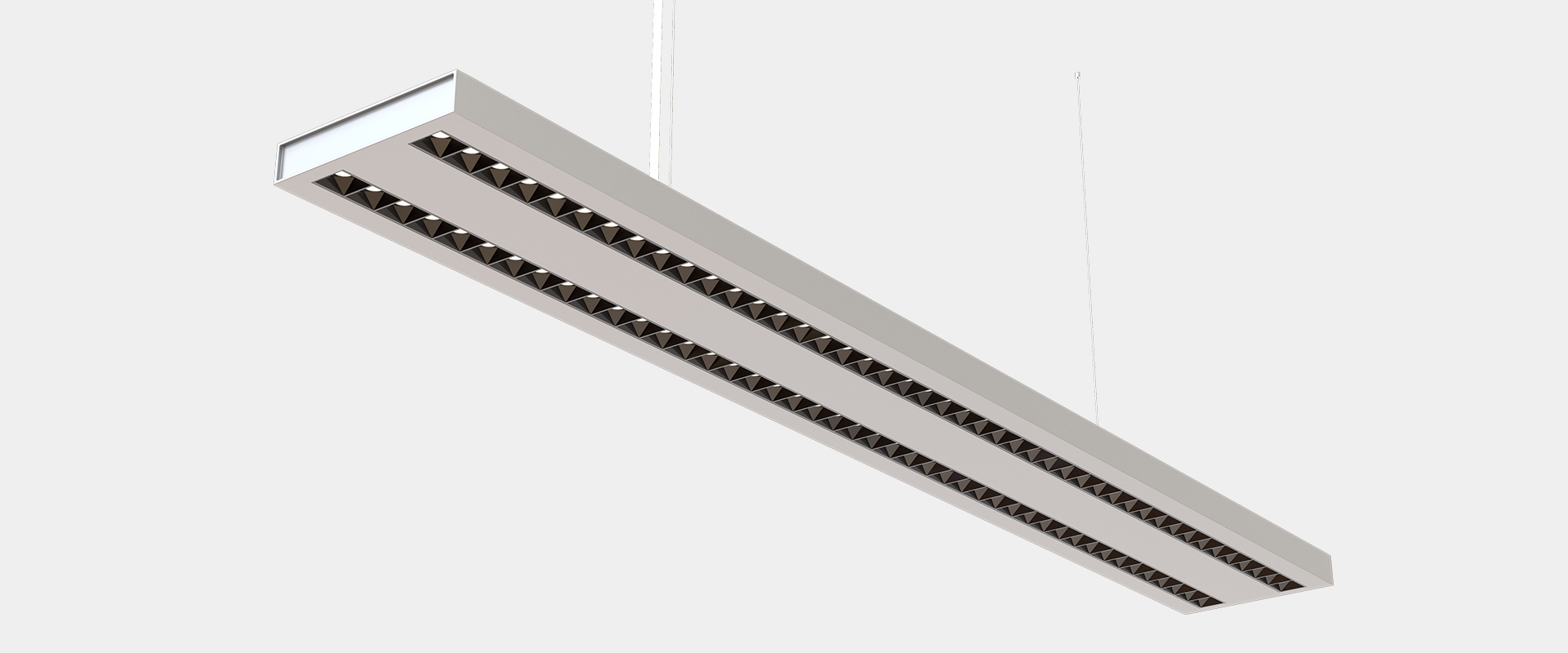

Freyr-P1

With extremely simple design and excellent craftwork, exquisite appearance looks with rich of texture.

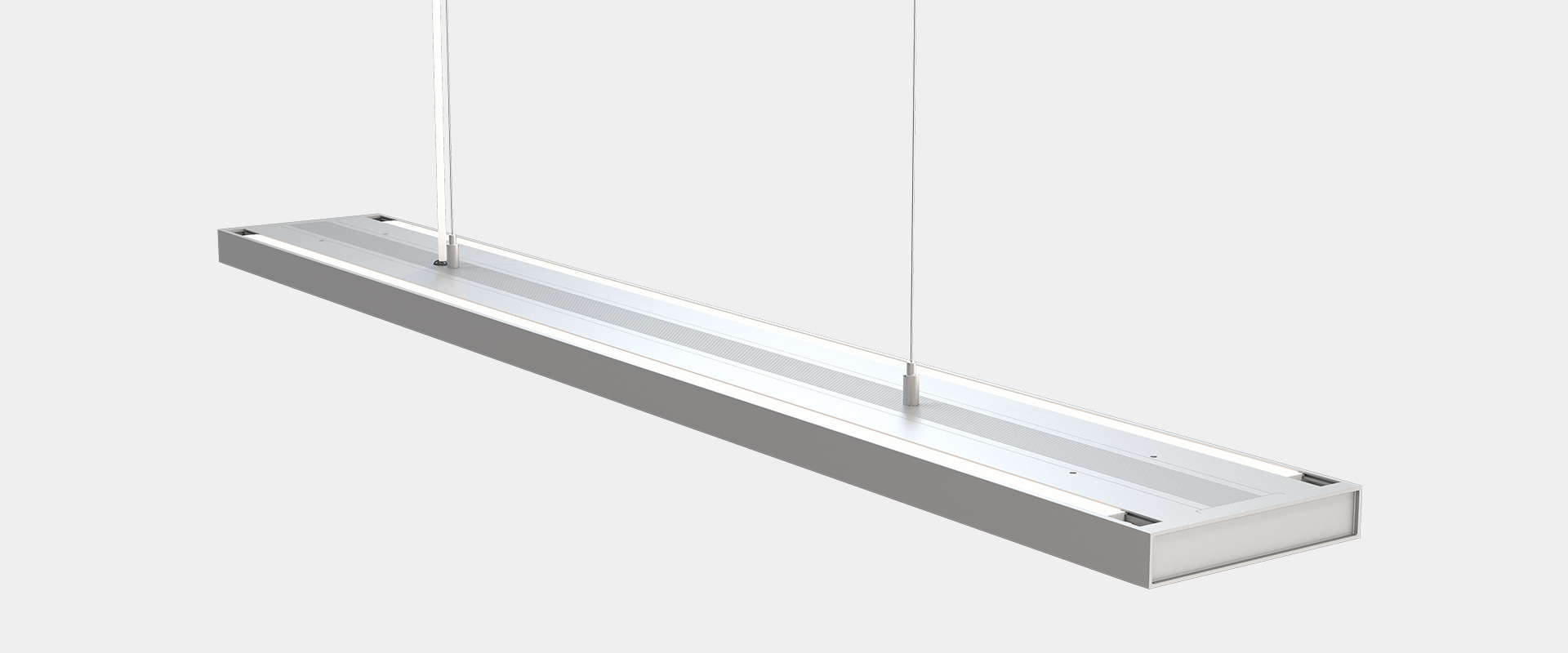

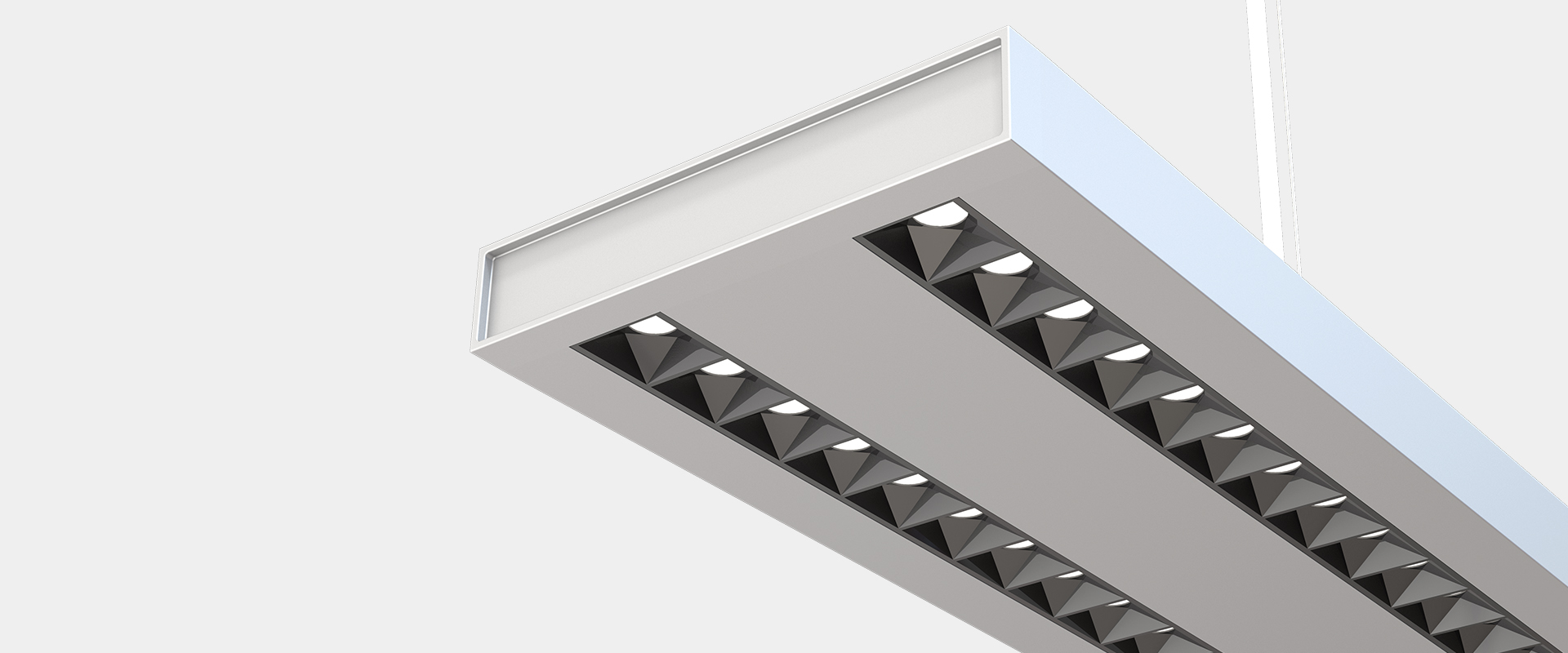

Lamp is designed with special Direct/Indirect lighting and 110°(Indirect) beam angle. Collocated with micro reflector and anti-glare cover, it can realize 50°(Direct) beam angle and perfect light cutoff. UGR value is as low as 6.

Adopting linkable structure design, there is no light leak gap.Main material includes aluminum profile, ADC12 and PC. Typical value of light efficiency is 120lm/w, and lighting is of flicker free. Direct(50% power)/Indirect(50% power) lighting can be synchronously controlled.

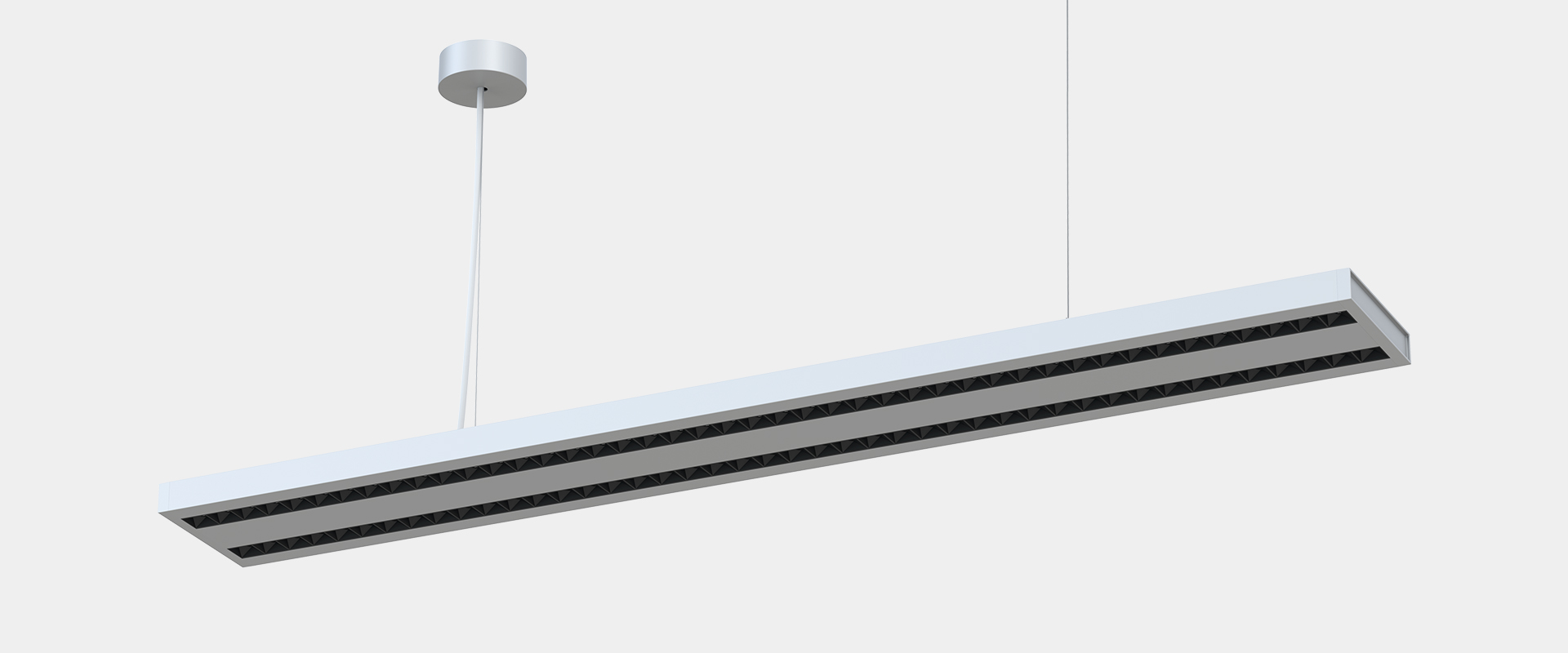

Lamp supports 1-10V and DALI dimming. Collocated with CASAMBI wireless system, dimming and tunable white can be realized.Adopting suspended installation.

TECHNICAL DATA
System power: 60 W / 70 W
Luminous flux of luminaire: 6700 lm / 7750lm
Colour temperature: 3000 K / 4000 K
UGR: <6
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • Length

    1190 mm 1402 mm

  • System Power

    60W 70W

  • System Power

    Black White Silver

  • Colour temperature

    3000K 4000K

  • UGR

    <6

  • Dimming

    None 1-10V DALI
Item NO.LengthSystem PowerSystem PowerColour temperatureUGRDimmingDownloads
22.010.340361402 mm70WSilver4000K<6DALIPDFIMIESLDTSIZE
22.010.330351402 mm70WSilver3000K<6DALIPDFIMIESLDTSIZE
22.010.240341402 mm70WWhite4000K<6DALIPDFIMIESLDTSIZE
22.010.230331402 mm70WWhite3000K<6DALIPDFIMIESLDTSIZE
22.010.140321402 mm70WBlack4000K<6DALIPDFIMIESLDTSIZE
22.010.130311402 mm70WBlack3000K<6DALIPDFIMIESLDTSIZE
22.010.340301402 mm70WSilver4000K<61-10VPDFIMIESLDTSIZE
22.010.330291402 mm70WSilver3000K<61-10VPDFIMIESLDTSIZE
22.010.240281402 mm70WWhite4000K<61-10VPDFIMIESLDTSIZE
22.010.230271402 mm70WWhite3000K<61-10VPDFIMIESLDTSIZE
22.010.140261402 mm70WBlack4000K<61-10VPDFIMIESLDTSIZE
22.010.130251402 mm70WWhite3000K<61-10VPDFIMIESLDTSIZE
22.010.340241402 mm70WSilver4000K<6NonePDFIMIESLDTSIZE
22.010.330231402 mm70WSilver3000K<6NonePDFIMIESLDTSIZE
22.010.240221402 mm70WWhite4000K<6NonePDFIMIESLDTSIZE
22.010.230211402 mm70WWhite3000K<6NonePDFIMIESLDTSIZE
22.010.140201402 mm70WBlack4000K<6NonePDFIMIESLDTSIZE
22.010.130191402 mm70WBlack3000K<6NonePDFIMIESLDTSIZE
22.010.340181190 mm60WSilver4000K<6DALIPDFIMIESLDTSIZE
22.010.330171190 mm60WSilver3000K<6DALIPDFIMIESLDTSIZE
22.010.240161190 mm60WWhite4000K<6DALIPDFIMIESLDTSIZE
22.010.230151190 mm60WWhite3000K<6DALIPDFIMIESLDTSIZE
22.010.140141190 mm60WBlack4000K<6DALIPDFIMIESLDTSIZE
22.010.130131190 mm60WBlack3000K<6DALIPDFIMIESLDTSIZE
22.010.340121190 mm60WSilver4000K<61-10VPDFIMIESLDTSIZE
22.010.330111190 mm60WSilver3000K<61-10VPDFIMIESLDTSIZE
22.010.240101190 mm60WWhite4000K<61-10VPDFIMIESLDTSIZE
22.010.230091190 mm60WWhite3000K<61-10VPDFIMIESLDTSIZE
22.010.140081190 mm60WBlack4000K<61-10VPDFIMIESLDTSIZE
22.010.130071190 mm60WBlack3000K<61-10VPDFIMIESLDTSIZE
22.010.340061190 mm60WSilver4000K<6NonePDFIMIESLDTSIZE
22.010.330051190 mm60WSilver3000K<6NonePDFIMIESLDTSIZE
22.010.240041190 mm60WWhite4000K<6NonePDFIMIESLDTSIZE
22.010.230031190 mm60WWhite3000K<6NonePDFIMIESLDTSIZE
22.010.140021190 mm60WBlack4000K<6NonePDFIMIESLDTSIZE
22.010.130011190 mm60WBlack3000K<6NonePDFIMIESLDTSIZE
