Eros-C
Simply and reasonable structure design with excellent craftwork. Appearance with rich texture. Reliable heat dissipation system. 5years warranty.

Typical value up to 100lm/W with fiicker freely. 1-10V and Dali synchronous dimming, support CASAMBI wireless system.

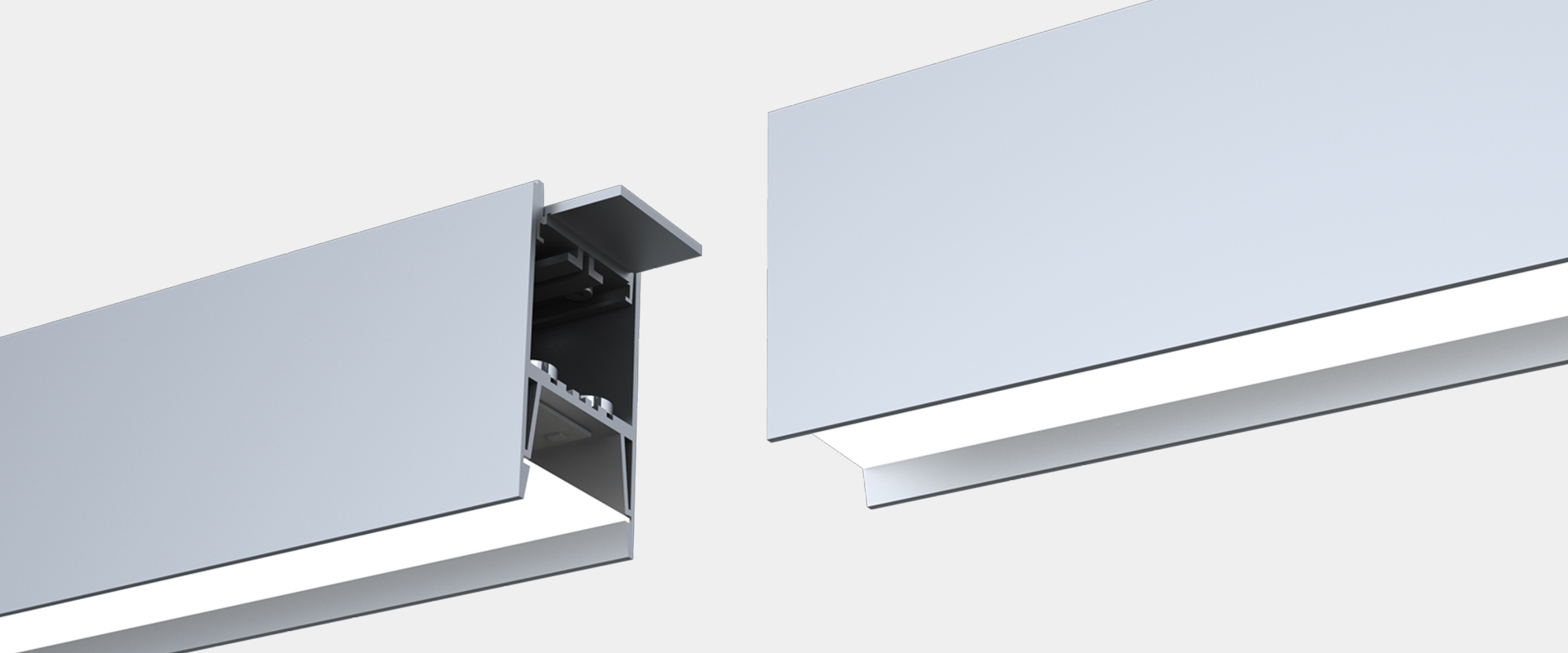

Profile aluminum, PMMA as main materials, Surface mounted installation. Easy & Fast.

TECHNICAL DATA
System power: 40 W / 50 W
Luminous flux of luminaire: 3600 lm / 4500 lm
Colour temperature: 3000 K / 4000 K
UGR: <21
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • Length

    1204 mm

  • System Power

    40W 50W

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K

  • Dimming

    None 1-10V DALI

  • Cover

    Microprismatic
Item NO.LengthSystem PowerSurface FinishColour temperatureDimmingCoverDownloads
23.008.340361204 mm50WSilver4000KDALIMicroprismaticPDFIMIESLDTSIZE
23.008.330351204 mm50WSilver3000KDALIMicroprismaticPDFIMIESLDTSIZE
23.008.240341204 mm50WWhite4000KDALIMicroprismaticPDFIMIESLDTSIZE
23.008.230331204 mm50WWhite3000KDALIMicroprismaticPDFIMIESLDTSIZE
23.008.140321204 mm50WBlack4000KDALIMicroprismaticPDFIMIESLDTSIZE
23.008.130311204 mm50WBlack3000KDALIMicroprismaticPDFIMIESLDTSIZE
23.008.340301204 mm50WSilver4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.008.330291204 mm50WSilver3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.008.240281204 mm50WWhite4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.008.230271204 mm50WWhite3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.008.140261204 mm50WBlack4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.008.130251204 mm50WBlack3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.008.340241204 mm50WSilver4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.008.330231204 mm50WSilver3000KNoneMicroprismaticPDFIMIESLDTSIZE
23.008.240221204 mm50WWhite4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.008.230211204 mm50WWhite3000KNoneMicroprismaticPDFIMIESLDTSIZE
23.008.140201204 mm50WBlack4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.008.130191204 mm50WBlack3000KNoneMicroprismaticPDFIMIESLDTSIZE
23.008.340181204 mm40WSilver4000KDALIMicroprismaticPDFIMIESLDTSIZE
23.008.330171204 mm40WSilver3000KDALIMicroprismaticPDFIMIESLDTSIZE
23.008.240161204 mm40WWhite4000KDALIMicroprismaticPDFIMIESLDTSIZE
23.008.230151204 mm40WWhite3000KDALIMicroprismaticPDFIMIESLDTSIZE
23.008.140141204 mm40WBlack4000KDALIMicroprismaticPDFIMIESLDTSIZE
23.008.130131204 mm40WBlack3000KDALIMicroprismaticPDFIMIESLDTSIZE
23.008.340121204 mm40WSilver4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.008.330111204 mm40WSilver3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.008.240101204 mm40WWhite4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.008.230091204 mm40WWhite3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.008.140081204 mm40WBlack4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.008.130071204 mm40WBlack3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.008.340061204 mm40WSilver4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.008.330051204 mm40WSilver3000KNoneMicroprismaticPDFIMIESLDTSIZE
23.008.240041204 mm40WWhite4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.008.230031204 mm40WWhite3000KNoneMicroprismaticPDFIMIESLDTSIZE
23.008.140021204 mm40WBlack4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.008.130011204 mm40WBlack3000KNoneMicroprismaticPDFIMIESLDTSIZE
