Odin-CS1

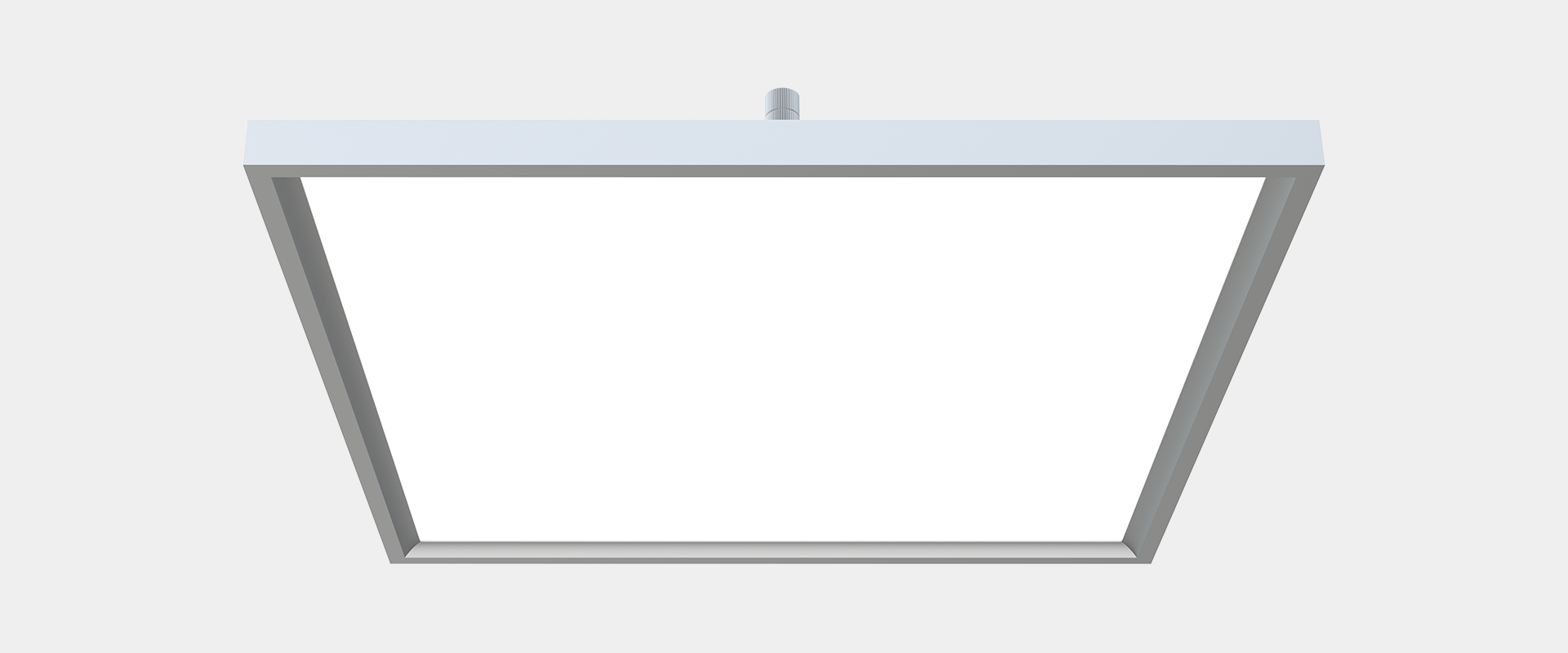

Modern and simple design style, coupled with exquisite materials and perfect assembly details,the product appearance looks rich in texture.

The direct light adopts a diffusion plate with microprism structure to realizeanti-glare function ,and 90 degrees(direct), 110 degrees (indirect). Surface mounted installation , very simple and convenient .

Typicallight efficiency 100LM/W, flicker free, 90% DIRECT / 10% INDIRECT lighting .It can realize 1-10V or DALI synchronous dimming ,and main materials are aluminum profiles and PMMA .Designed with square corner.
TECHNICAL DATA
System power: 60 W
Luminous flux of luminaire: 5300 lm
Colour temperature: 3000 K / 4000 K
UGR: <19
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • Length

    610 mm

  • System Power

    60W

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K

  • Dimming

    None 1-10V DALI

  • Cover

    Microprismatic
Item NO.LengthSystem PowerSurface FinishColour temperatureDimmingCoverDownloads
23.014.34018610 mm60WSilver4000KDALIMicroprismaticPDFIMIESLDTSIZE
23.014.33017610 mm60WSilver3000KDALIMicroprismaticPDFIMIESLDTSIZE
23.014.24016610 mm60WWhite4000KDALIMicroprismaticPDFIMIESLDTSIZE
23.014.23015610 mm60WWhite3000KDALIMicroprismaticPDFIMIESLDTSIZE
23.014.14014610 mm60WBlack4000KDALIMicroprismaticPDFIMIESLDTSIZE
23.014.13013610 mm60WBlack3000KDALIMicroprismaticPDFIMIESLDTSIZE
23.014.34012610 mm60WSilver4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.014.33011610 mm60WSilver3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.014.24010610 mm60WWhite4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.014.23009610 mm60WWhite3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.014.14008610 mm60WBlack4000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.014.13007610 mm60WBlack3000K1-10VMicroprismaticPDFIMIESLDTSIZE
23.014.34006610 mm60WSilver4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.014.33005610 mm60WSilver3000KNoneMicroprismaticPDFIMIESLDTSIZE
23.014.24004610 mm60WWhite4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.014.23003610 mm60WWhite3000KNoneMicroprismaticPDFIMIESLDTSIZE
23.014.14002610 mm60WBlack4000KNoneMicroprismaticPDFIMIESLDTSIZE
23.014.13001610 mm60WBlack3000KNoneMicroprismaticPDFIMIESLDTSIZE
