Odin-TR
Modern and simple design style, coupled with exquisite materials and perfect assembly details,the product appearance looks rich in texture.

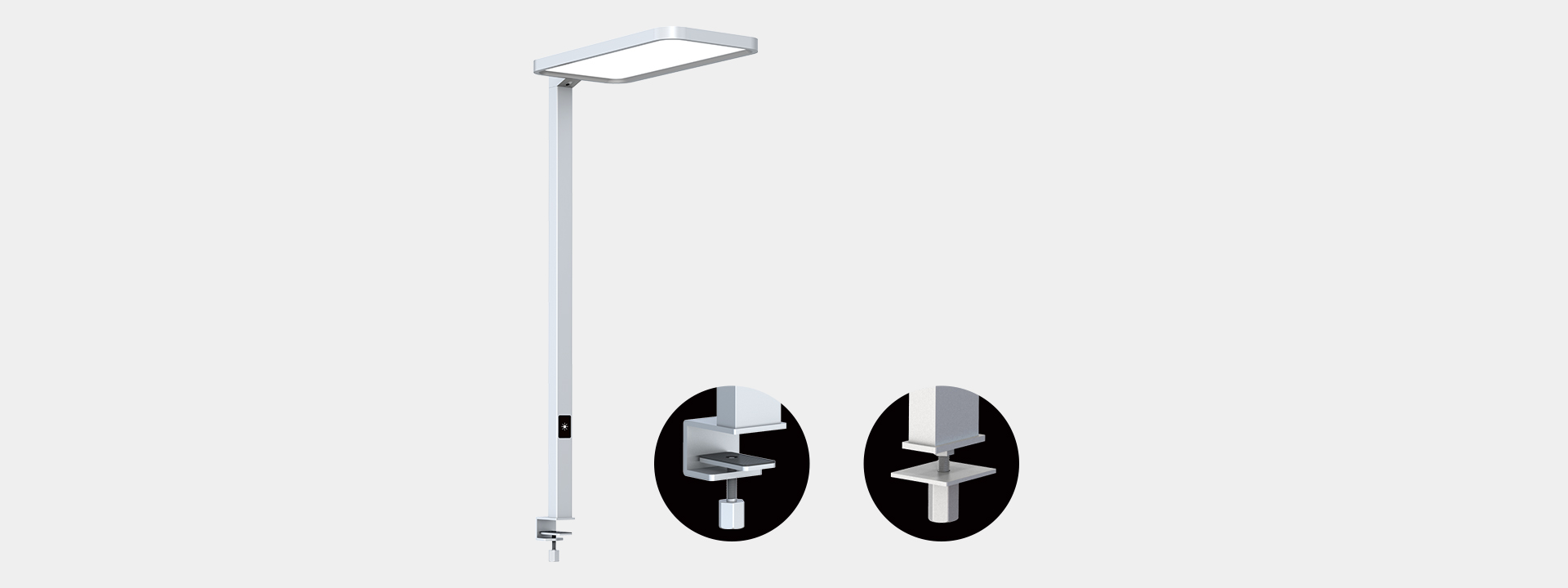

The direct light adopts a diffusion plate with microprism structure to realizeanti-glare function,and 90 degrees(direct), 110 degrees (indirect). This product is DIY assembled,no need professionals, fixed on the desk edge by bracket, easy to install, flexible for using. Typicallight efficiencyis 100LM/W,flicker free.

Controlled by touching panel,it can realize 50% DIRECT / 50% INDIRECT lighting synchronous dimming. More importantly, it enable to be supported for Intelligent motion sensor,intelligent constant illumination daylight sensor and wireless control systems such as CASAMBI. The main materials are aluminum profiles, steel plates and PMMA.Designed with Round corner.
TECHNICAL DATA
System power: 60 W / 80 W
Luminous flux of luminaire: 6000 lm / 8000 lm
Colour temperature: 3000 K / 4000 K / 3000~6000 K Tunable
UGR: <18
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • System Power

    60W 80W

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K 3000K~6000K

  • Beam Angle

    ↑110°/90°↓

  • Sensor

    Motion sensor Daylight & Motion sensor

  • Cover

    Microprismatic
Item NO.System PowerSurface FinishColour temperatureBeam AngleSensorCoverDownloads
21.003.3603680WSilver3000K~6000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.3403580WSilver4000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.3303480WSilver3000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.2603380WWhite3000K~6000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.2403280WWhite4000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.2303180WWhite3000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.1603080WBlack3000K~6000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.1402980WBlack4000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.1302880WBlack3000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.3602780WSilver3000K~6000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.3402680WSilver4000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.3302580WSilver3000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.2602480WWhite3000K~6000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.2402380WWhite4000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.2302280WWhite3000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.1602180WBlack3000K~6000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.1402080WBlack4000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.1301980WBlack3000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.3601860WSilver3000K~6000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.3401760WSilver4000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.3301660WSilver3000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.2601560WWhite3000K~6000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.2401460WWhite4000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.2301360WWhite3000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.1601260WBlack3000K~6000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.1401160WBlack4000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.1301060WBlack3000K↑110°/90°↓Daylight & Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.3600960WSilver3000K~6000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.3400860WSilver4000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.3300760WSilver3000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.2600660WWhite3000K~6000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.2400560WWhite4000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.2300460WWhite3000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.1600360WBlack3000K~6000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.1400260WBlack4000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
21.003.1300160WBlack3000K↑110°/90°↓Motion sensorMicroprismaticPDFIMIESLDTSIZE
