Gaia

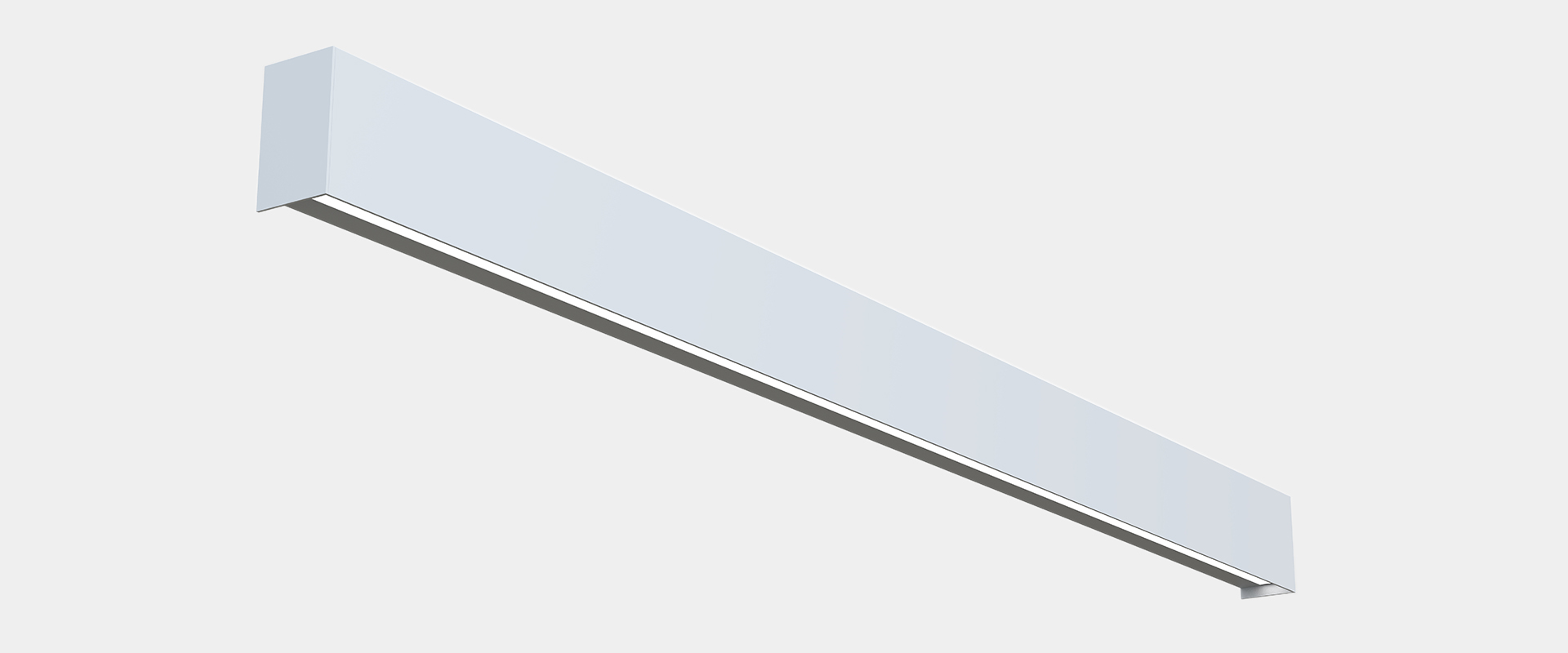

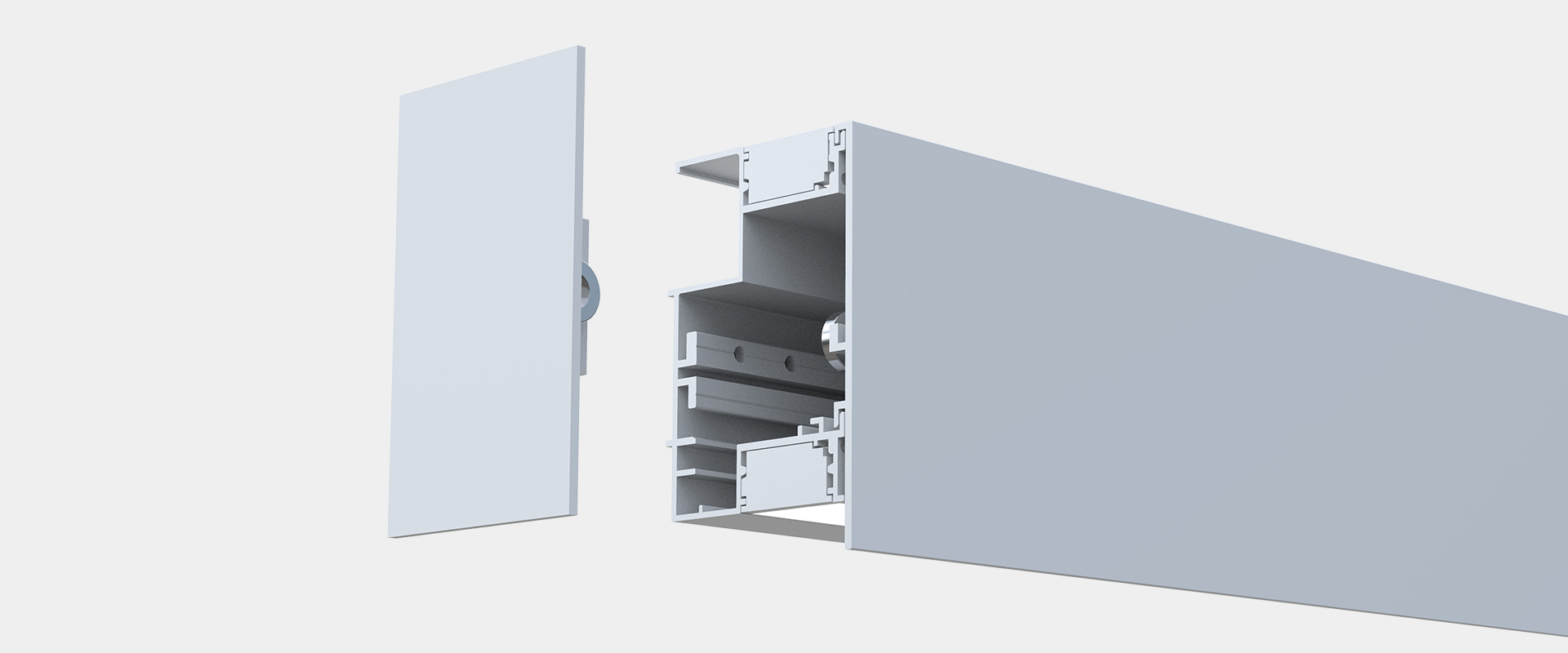

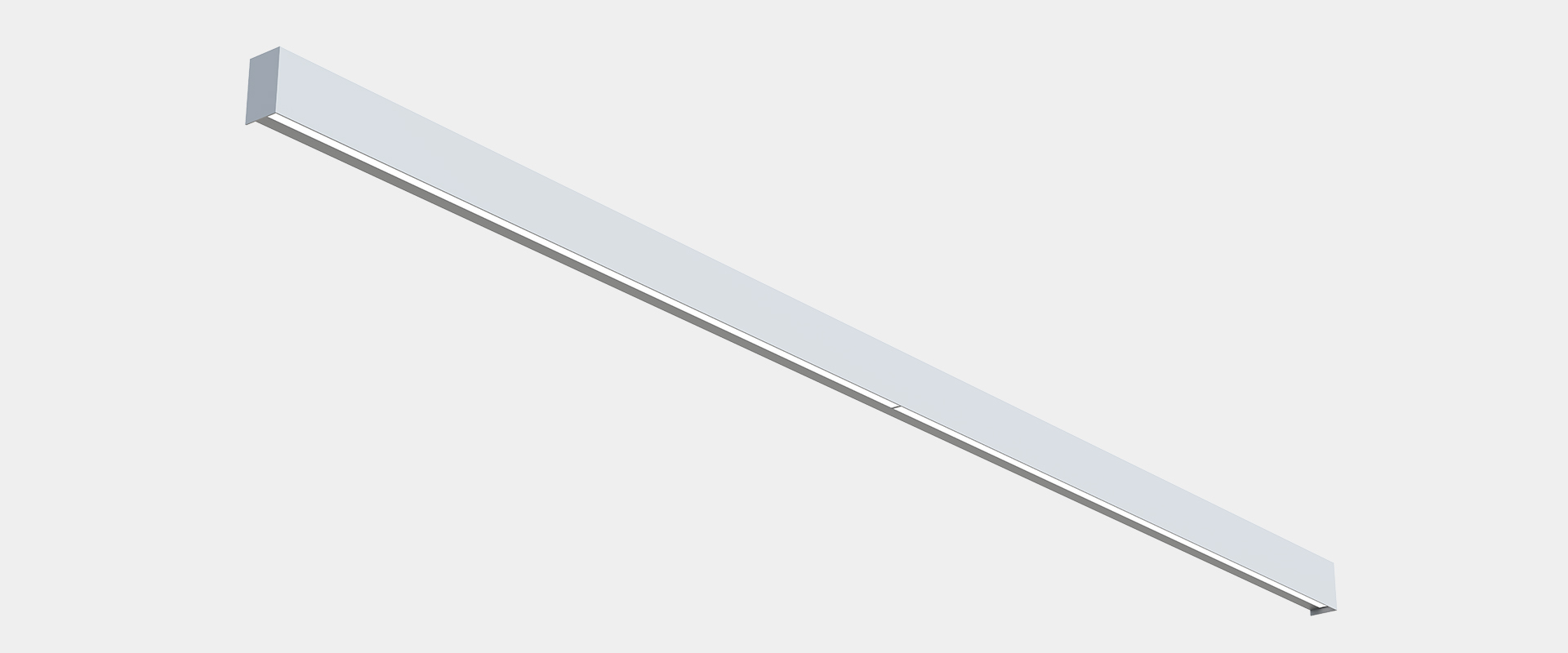

Gaia is a linear wall lamp with a new concept. The lamp engine and the cover are separately mounted. The connection of the lamp body is easy to operate, and the gap after connection is adjustable. Application installation is more convenient, lighting effect is more comfortable, more texture.It is a good solution to the two traditional problems of traditional linear wall lamp application, such as difficult wiring and uncomfortable glare caused by excessive concentration of light source on 10-15cm wall.

Gaia engine and cover are made of 6063 aluminum, the surface is dusting process, built-in power supply and input and output wiring plug, the process details are perfect, the appearance is exquisite.

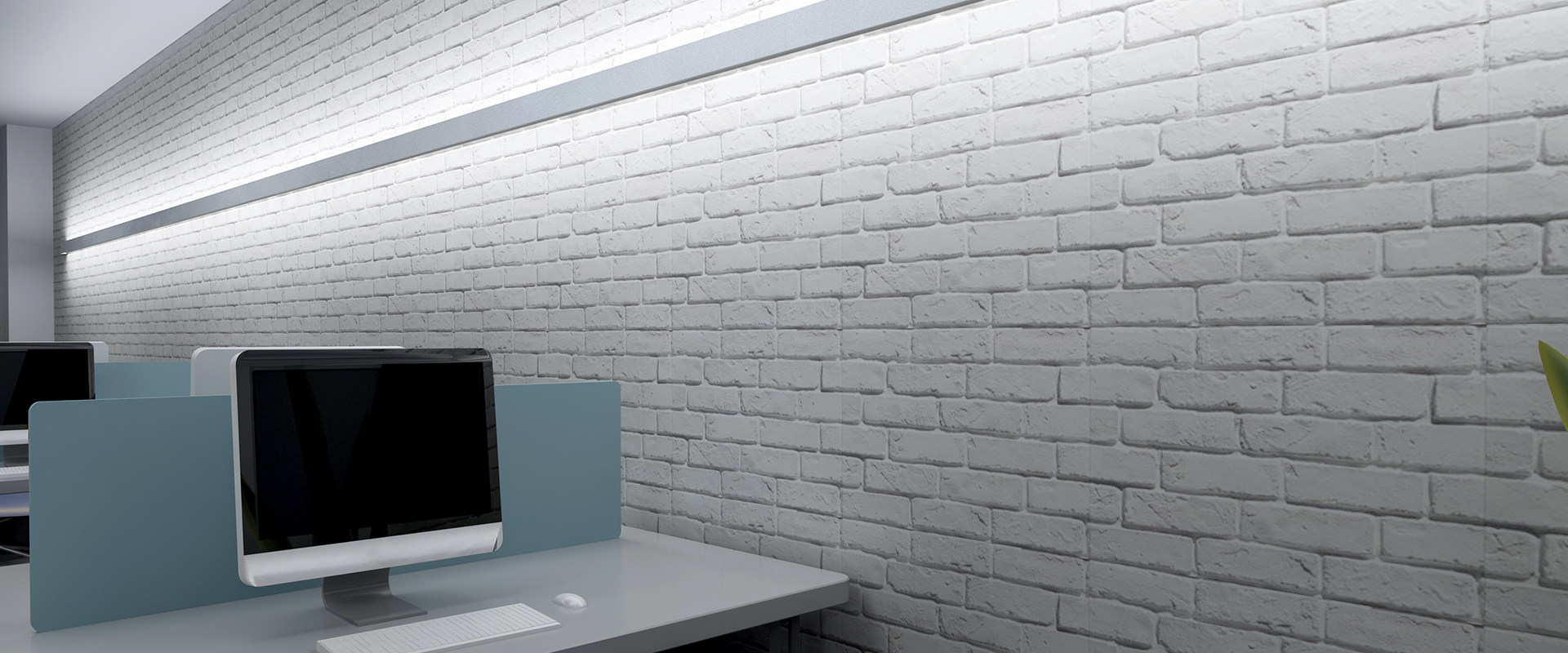

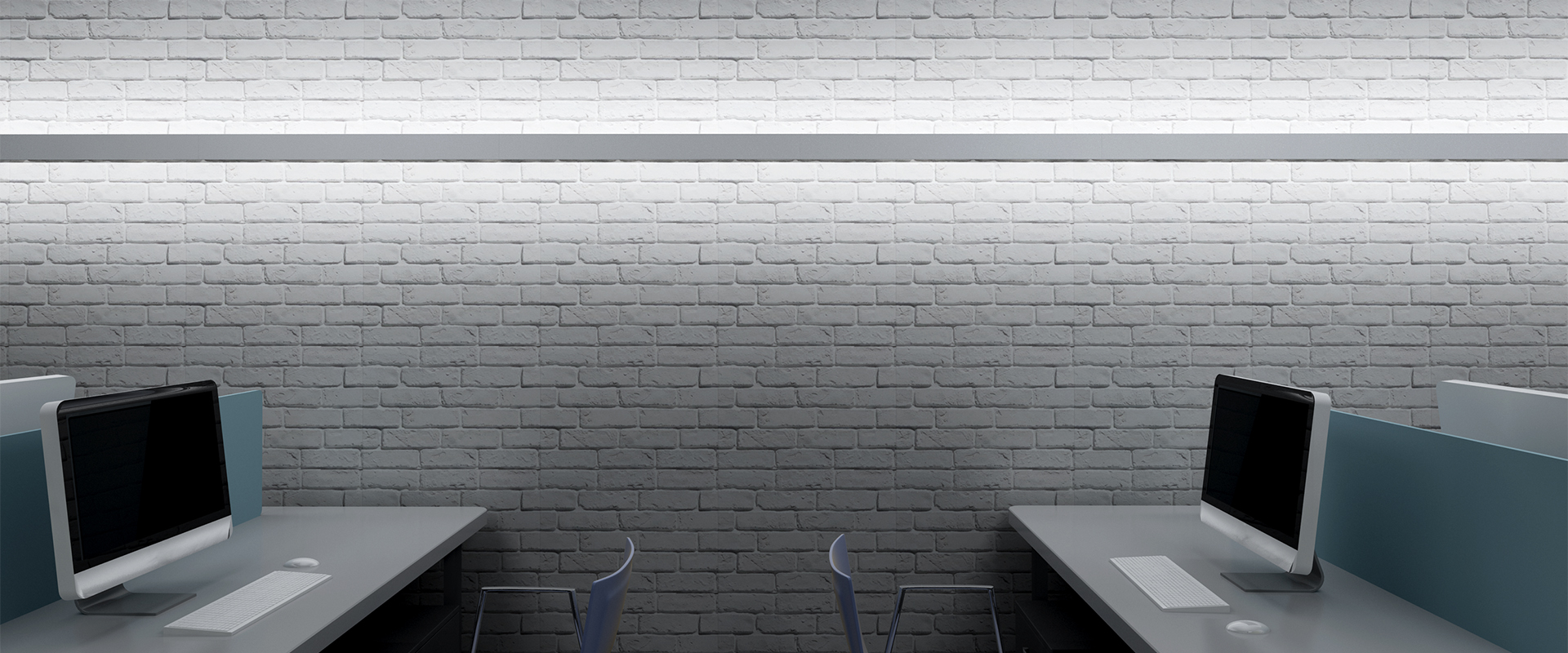

Gaia supports 1-10v dimming, DALI dimming, which can be widely used in almost all office space supplementary lighting applications, making the space light more comfortable and less glare.
TECHNICAL DATA
System power: 30 W / 50 W
Luminous flux of luminaire: 3600 lm / 6000 lm
Colour temperature: 3000 K / 4000 K
UGR: <19
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20
Filter options

  • Length

    1210 mm 1810 mm

  • System Power

    30W 50W

  • Surface Finish

    Black White Silver

  • Colour temperature

    3000K 4000K

  • UGR

    <19

  • Dimming

    None 1-10V DALI
Item NO.LengthSystem PowerSurface FinishColour temperatureUGRDimmingDownloads
25.001.340361810 mm50WSilver4000K<19DALIPDFIMIESLDTSIZE
25.001.330351810 mm50WSilver3000K<19DALIPDFIMIESLDTSIZE
25.001.240341810 mm50WWhite4000K<19DALIPDFIMIESLDTSIZE
25.001.230331810 mm50WWhite3000K<19DALIPDFIMIESLDTSIZE
25.001.140321810 mm50WBlack4000K<19DALIPDFIMIESLDTSIZE
25.001.130311810 mm50WBlack3000K<19DALIPDFIMIESLDTSIZE
25.001.340301810 mm50WSilver4000K<191-10VPDFIMIESLDTSIZE
25.001.330291810 mm50WSilver3000K<191-10VPDFIMIESLDTSIZE
25.001.240281810 mm50WWhite4000K<191-10VPDFIMIESLDTSIZE
25.001.230271810 mm50WWhite3000K<191-10VPDFIMIESLDTSIZE
25.001.140261810 mm50WBlack4000K<191-10VPDFIMIESLDTSIZE
25.001.130251810 mm50WBlack3000K<191-10VPDFIMIESLDTSIZE
25.001.340241810 mm50WSilver4000K<19NonePDFIMIESLDTSIZE
25.001.330231810 mm50WSilver3000K<19NonePDFIMIESLDTSIZE
25.001.240221810 mm50WWhite4000K<19NonePDFIMIESLDTSIZE
25.001.230211810 mm50WWhite3000K<19NonePDFIMIESLDTSIZE
25.001.140201810 mm50WBlack4000K<19NonePDFIMIESLDTSIZE
25.001.130191810 mm50WBlack3000K<19NonePDFIMIESLDTSIZE
25.001.340181210 mm30WSilver4000K<19DALIPDFIMIESLDTSIZE
25.001.330171210 mm30WSilver3000K<19DALIPDFIMIESLDTSIZE
25.001.240161210 mm30WSilver3000K<19DALIPDFIMIESLDTSIZE
25.001.230151210 mm30WWhite3000K<19DALIPDFIMIESLDTSIZE
25.001.140141210 mm30WBlack4000K<19DALIPDFIMIESLDTSIZE
25.001.130131210 mm30WBlack3000K<19DALIPDFIMIESLDTSIZE
25.001.340121210 mm30WSilver4000K<191-10VPDFIMIESLDTSIZE
25.001.330111210 mm30WSilver3000K<191-10VPDFIMIESLDTSIZE
25.001.240101210 mm30WWhite4000K<191-10VPDFIMIESLDTSIZE
25.001.230091210 mm30WWhite3000K<191-10VPDFIMIESLDTSIZE
25.001.140081210 mm30WBlack4000K<191-10VPDFIMIESLDTSIZE
25.001.130071210 mm30WBlack3000K<191-10VPDFIMIESLDTSIZE
25.001.340061210 mm30WSilver4000K<19NonePDFIMIESLDTSIZE
25.001.330051210 mm30WSilver3000K<19NonePDFIMIESLDTSIZE
25.001.240041210 mm30WWhite4000K<19NonePDFIMIESLDTSIZE
25.001.130031210 mm30WWhite3000K<19NonePDFIMIESLDTSIZE
25.001.140021210 mm30WBlack4000K<19NonePDFIMIESLDTSIZE
25.001.130011210 mm30WBlack3000K<19NonePDFIMIESLDTSIZE
