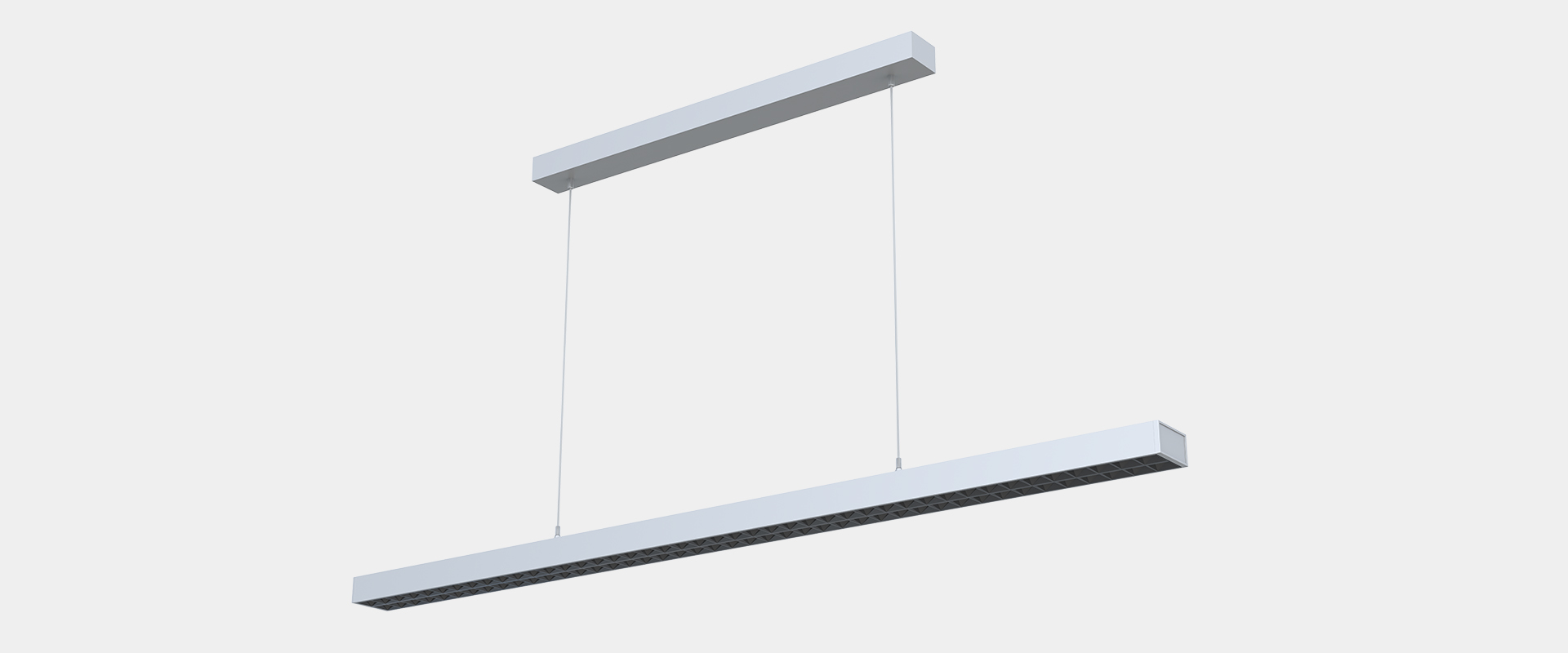

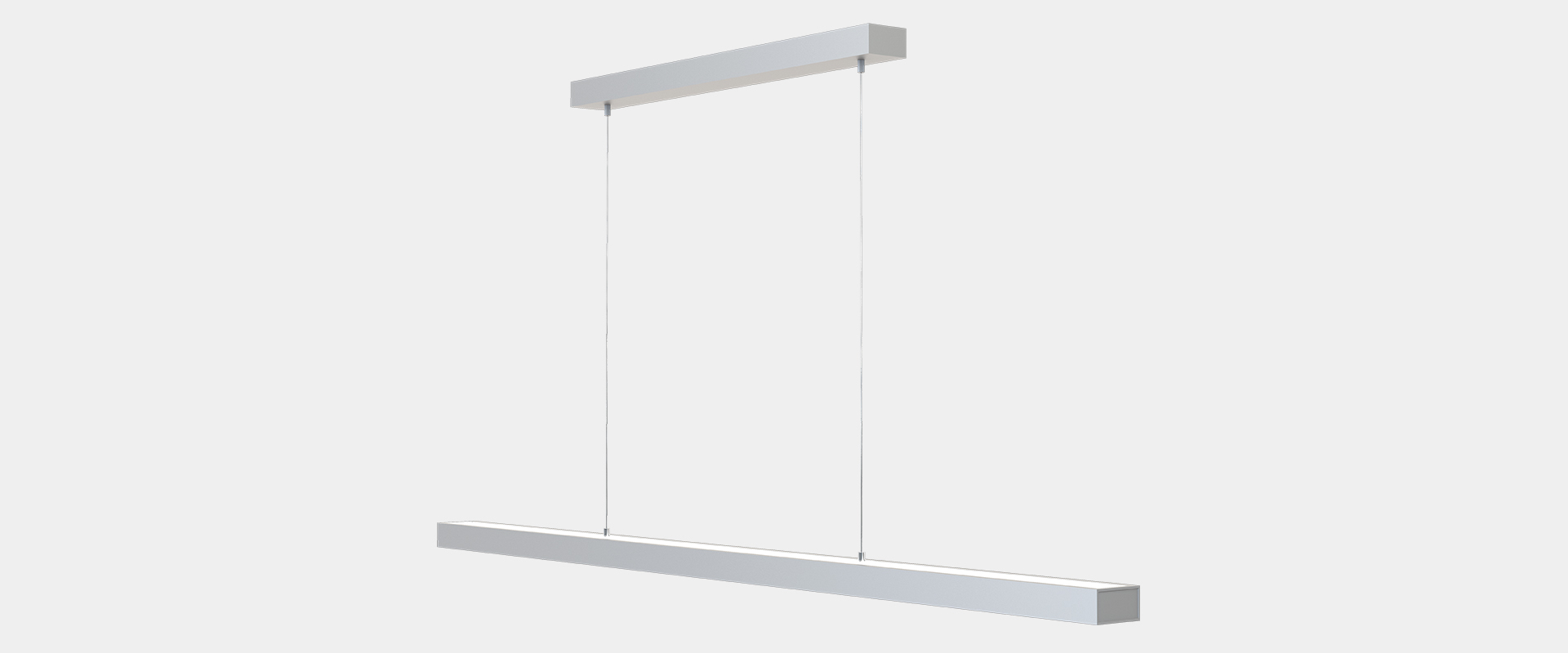

Freyr-P0_PENDANT-light artisan

Freyr-P0

With extremely simple design, excellent craftwork and hidden AC cable, exquisite appearance looks with rich of texture.

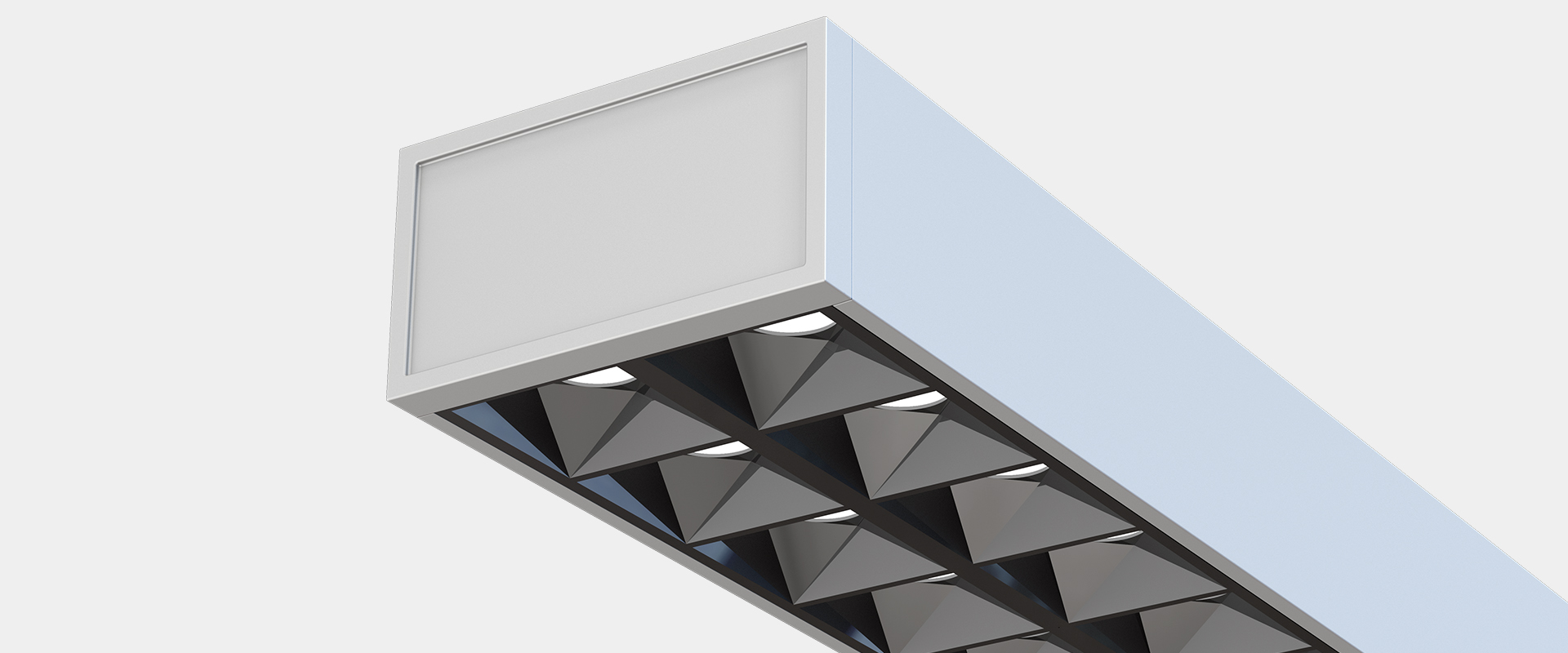

Lamp is designed with special Direct/Indirect lighting and 110°(Indirect) beam angle. Collocated with micro reflector and anti-glare cover, it can realize 50°(Direct) beam angle and perfect light cutoff. UGR value is as low as 6.

Main material includes aluminum profile, ADC12 and PC.

Typical value of light efficiency is 110lm/w, and lighting is of flicker free. Direct(50% power)/Indirect(50% power) lighting can be synchronously controlled. Lamp supports 1-10V, DALI, CASABBI wireless for dimming.

TECHNICAL DATA
System power: 60 W / 70 W
Luminous flux of luminaire: 6400 lm / 7600lm
Colour temperature: 3000 K / 4000 K
UGR: <6
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20

Item NO.	Length	System Power	Surface Finish	Colour temperature	UGR	Dimming	Downloads
22.009.34036	1391 mm	70W	Silver	4000K	<6	DALI	PDF IM IES LDT SIZE
22.009.33035	1391 mm	70W	Silver	3000K	<6	DALI	PDF IM IES LDT SIZE
22.009.24034	1391 mm	70W	White	4000K	<6	DALI	PDF IM IES LDT SIZE
22.009.23033	1391 mm	70W	White	3000K	<6	DALI	PDF IM IES LDT SIZE
22.009.14032	1391 mm	70W	Black	4000K	<6	DALI	PDF IM IES LDT SIZE
22.009.13031	1391 mm	70W	Black	3000K	<6	DALI	PDF IM IES LDT SIZE
22.009.34030	1391 mm	70W	Silver	4000K	<6	1-10V	PDF IM IES LDT SIZE
22.009.33029	1391 mm	70W	Silver	3000K	<6	1-10V	PDF IM IES LDT SIZE
22.009.24028	1391 mm	70W	White	4000K	<6	1-10V	PDF IM IES LDT SIZE
22.009.23027	1391 mm	70W	White	3000K	<6	1-10V	PDF IM IES LDT SIZE
22.009.14026	1391 mm	70W	Black	4000K	<6	1-10V	PDF IM IES LDT SIZE
22.009.13025	1391 mm	70W	Black	3000K	<6	1-10V	PDF IM IES LDT SIZE
22.009.34024	1391 mm	70W	Silver	4000K	<6	None	PDF IM IES LDT SIZE
22.009.33023	1391 mm	70W	Silver	3000K	<6	None	PDF IM IES LDT SIZE
22.009.24022	1391 mm	70W	White	4000K	<6	None	PDF IM IES LDT SIZE
22.009.23021	1391 mm	70W	White	3000K	<6	None	PDF IM IES LDT SIZE
22.009.14020	1391 mm	70W	Black	4000K	<6	None	PDF IM IES LDT SIZE
22.009.13019	1391 mm	70W	Black	3000K	<6	None	PDF IM IES LDT SIZE
22.009.34018	1179 mm	60W	Silver	4000K	<6	DALI	PDF IM IES LDT SIZE
22.009.33017	1179 mm	60W	Silver	3000K	<6	DALI	PDF IM IES LDT SIZE
22.009.24016	1179 mm	60W	White	4000K	<6	DALI	PDF IM IES LDT SIZE
22.009.23015	1179 mm	60W	White	3000K	<6	DALI	PDF IM IES LDT SIZE
22.009.14014	1391 mm	60W	Black	4000K	<6	DALI	PDF IM IES LDT SIZE
22.009.13013	1179 mm	60W	Black	3000K	<6	DALI	PDF IM IES LDT SIZE
22.009.34012	1179 mm	60W	Silver	4000K	<6	1-10V	PDF IM IES LDT SIZE
22.009.33011	1179 mm	60W	Silver	3000K	<6	1-10V	PDF IM IES LDT SIZE
22.009.24010	1179 mm	60W	White	4000K	<6	1-10V	PDF IM IES LDT SIZE
22.009.23009	1179 mm	60W	White	3000K	<6	1-10V	PDF IM IES LDT SIZE
22.009.14008	1179 mm	60W	Black	4000K	<6	1-10V	PDF IM IES LDT SIZE
22.009.13007	1179 mm	60W	Black	3000K	<6	1-10V	PDF IM IES LDT SIZE
22.009.34006	1179 mm	60W	Silver	4000K	<6	None	PDF IM IES LDT SIZE
22.009.33005	1179 mm	60W	Silver	3000K	<6	None	PDF IM IES LDT SIZE
22.009.24004	1179 mm	60W	White	4000K	<6	None	PDF IM IES LDT SIZE
22.009.23003	1179 mm	60W	White	3000K	<6	None	PDF IM IES LDT SIZE
22.009.14002	1179 mm	60W	Black	4000K	<6	None	PDF IM IES LDT SIZE
22.009.13001	1179 mm	60W	Black	3000K	<6	None	PDF IM IES LDT SIZE

Length

System Power

Surface Finish

Colour temperature

UGR

Dimming
