Siv-C3

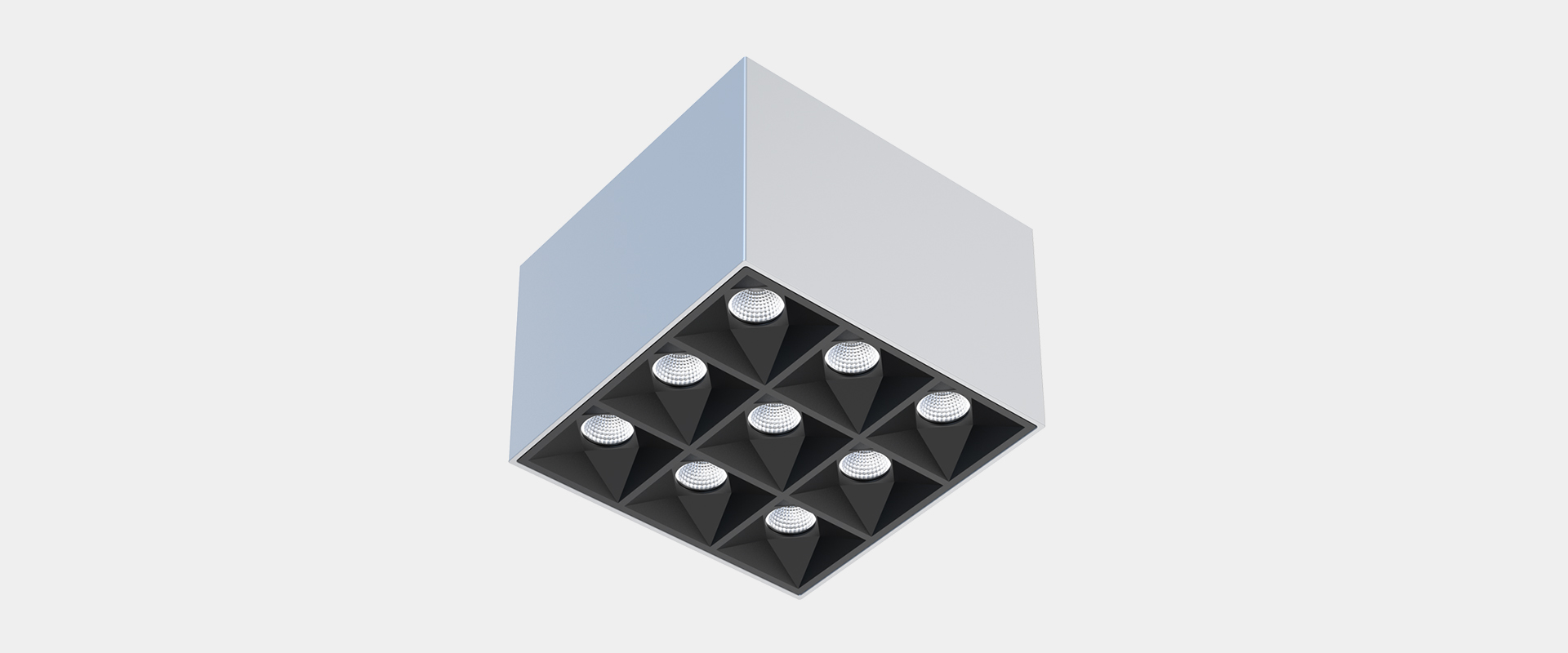

With extremely simple design and excellent craftwork, exquisite appearance looks with rich of texture.

Collocated with micro refiector and anti-glare cover, it can realize 35° /65°beam angle and perfect light cutoff. UGR value is as low as 15.

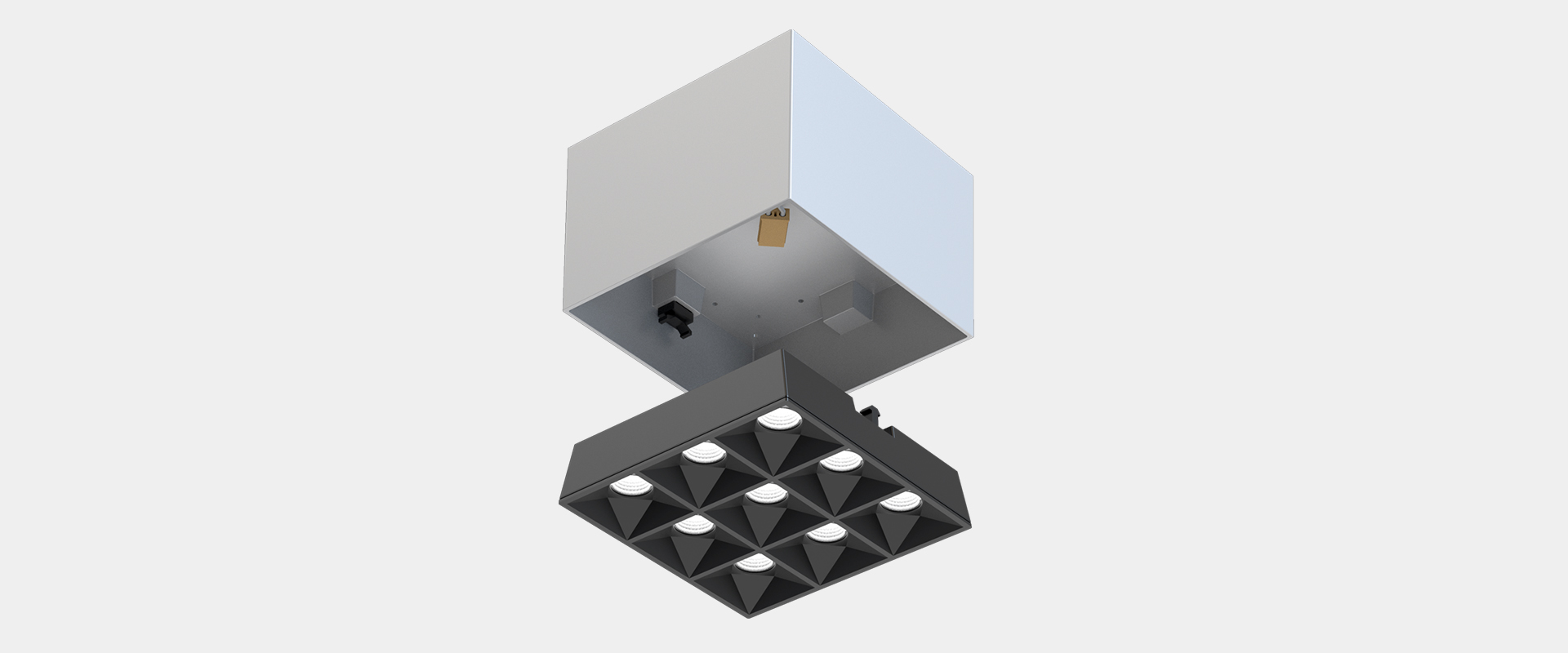

Adopting structure of trimless design, independent led modules and push-in & push-out structure, lamp is easy for installation and maintenance. Main material includes aluminum profile and PC.

Typical value of light efficiency is 110lm/w, and lighting is of fiicker free. Lamp supports 1-10V and DALI dimming. Collocated with CASAMBI wireless system, dimming and tunable white can be realized.

TECHNICAL DATA
System power: 8 W / 18 W
Luminous flux of luminaire: 850 lm / 1900 lm
Colour temperature: 3000 K / 4000 K
UGR: <14(35°) / <17(65°)
Colour Rendering Index: CRI >80
Colour consistency SDCM: <3
Maintained luminous flux: L80 (B10) 50'000 h
Protection class: Protection class I
Ingress Protection (IP): IP20

Item NO.	Length	System Power	Surface Finish	Colour temperature	Dimming	Beam Angle	Downloads
23.007.34072	128 mm	18W	Silver	4000K	DALI	65°	PDF IM IES LDT SIZE
23.007.33071	128 mm	18W	Silver	3000K	DALI	65°	PDF IM IES LDT SIZE
23.007.24070	128 mm	18W	White	4000K	DALI	65°	PDF IM IES LDT SIZE
23.007.23069	128 mm	18W	White	3000K	DALI	65°	PDF IM IES LDT SIZE
23.007.14068	128 mm	18W	Black	4000K	DALI	65°	PDF IM IES LDT SIZE
23.007.13067	128 mm	18W	Black	3000K	DALI	65°	PDF IM IES LDT SIZE
23.007.34066	128 mm	18W	Silver	4000K	1-10V	65°	PDF IM IES LDT SIZE
23.007.33065	128 mm	18W	Silver	3000K	1-10V	65°	PDF IM IES LDT SIZE
23.007.24064	128 mm	18W	White	4000K	1-10V	65°	PDF IM IES LDT SIZE
23.007.23063	128 mm	18W	White	3000K	1-10V	65°	PDF IM IES LDT SIZE
23.007.14062	128 mm	18W	Black	4000K	1-10V	65°	PDF IM IES LDT SIZE
23.007.13061	128 mm	18W	Black	3000K	1-10V	65°	PDF IM IES LDT SIZE
23.007.34060	128 mm	18W	Silver	4000K	None	65°	PDF IM IES LDT SIZE
23.007.33059	128 mm	18W	Silver	3000K	None	65°	PDF IM IES LDT SIZE
23.007.24058	128 mm	18W	White	4000K	None	65°	PDF IM IES LDT SIZE
23.007.23057	128 mm	18W	White	3000K	None	65°	PDF IM IES LDT SIZE
23.007.14056	128 mm	18W	Black	4000K	None	65°	PDF IM IES LDT SIZE
23.007.13055	128 mm	18W	Black	3000K	None	65°	PDF IM IES LDT SIZE
23.007.34054	128 mm	8W	Silver	4000K	DALI	65°	PDF IM IES LDT SIZE
23.007.33053	128 mm	8W	Silver	3000K	DALI	65°	PDF IM IES LDT SIZE
23.007.24052	128 mm	8W	White	4000K	DALI	65°	PDF IM IES LDT SIZE
23.007.23051	128 mm	8W	White	3000K	DALI	65°	PDF IM IES LDT SIZE
23.007.14050	128 mm	8W	Black	4000K	DALI	65°	PDF IM IES LDT SIZE
23.007.13049	128 mm	8W	Black	3000K	DALI	65°	PDF IM IES LDT SIZE
23.007.34048	128 mm	8W	Silver	4000K	1-10V	65°	PDF IM IES LDT SIZE
23.007.33047	128 mm	8W	Silver	3000K	1-10V	65°	PDF IM IES LDT SIZE
23.007.24046	128 mm	8W	White	4000K	1-10V	65°	PDF IM IES LDT SIZE
23.007.23045	128 mm	8W	White	3000K	1-10V	65°	PDF IM IES LDT SIZE
23.007.14044	128 mm	8W	Black	4000K	1-10V	65°	PDF IM IES LDT SIZE
23.007.13043	128 mm	8W	Black	3000K	1-10V	65°	PDF IM IES LDT SIZE
23.007.34042	128 mm	8W	Silver	4000K	None	65°	PDF IM IES LDT SIZE
23.007.33041	128 mm	8W	Silver	3000K	None	65°	PDF IM IES LDT SIZE
23.007.24040	128 mm	8W	White	4000K	None	65°	PDF IM IES LDT SIZE
23.007.23039	128 mm	8W	White	3000K	None	65°	PDF IM IES LDT SIZE
23.007.14038	128 mm	8W	Black	4000K	None	65°	PDF IM IES LDT SIZE
23.007.13037	128 mm	8W	Black	3000K	None	65°	PDF IM IES LDT SIZE
23.007.34036	128 mm	18W	Silver	4000K	DALI	35°	PDF IM IES LDT SIZE
23.007.33035	128 mm	18W	Silver	3000K	DALI	35°	PDF IM IES LDT SIZE
23.007.24034	128 mm	18W	White	4000K	DALI	35°	PDF IM IES LDT SIZE
23.007.23033	128 mm	18W	White	3000K	DALI	35°	PDF IM IES LDT SIZE
23.007.14032	128 mm	18W	Black	4000K	DALI	35°	PDF IM IES LDT SIZE
23.007.13031	128 mm	18W	Black	3000K	DALI	35°	PDF IM IES LDT SIZE
23.007.34030	128 mm	18W	Silver	4000K	1-10V	35°	PDF IM IES LDT SIZE
23.007.33029	128 mm	18W	Silver	3000K	1-10V	35°	PDF IM IES LDT SIZE
23.007.24028	128 mm	18W	White	4000K	1-10V	35°	PDF IM IES LDT SIZE
23.007.23027	128 mm	18W	White	3000K	1-10V	35°	PDF IM IES LDT SIZE
23.007.14026	128 mm	18W	Black	4000K	1-10V	35°	PDF IM IES LDT SIZE
23.007.13025	128 mm	18W	Black	3000K	1-10V	35°	PDF IM IES LDT SIZE
23.007.34024	128 mm	18W	Silver	4000K	None	35°	PDF IM IES LDT SIZE
23.007.33023	128 mm	18W	Silver	3000K	None	35°	PDF IM IES LDT SIZE
23.007.24022	128 mm	18W	White	4000K	None	35°	PDF IM IES LDT SIZE
23.007.23021	128 mm	18W	White	3000K	None	35°	PDF IM IES LDT SIZE
23.007.14020	128 mm	18W	Black	4000K	None	35°	PDF IM IES LDT SIZE
23.007.13019	128 mm	18W	Black	3000K	None	35°	PDF IM IES LDT SIZE
23.007.34018	128 mm	8W	Silver	4000K	DALI	35°	PDF IM IES LDT SIZE
23.007.33017	128 mm	8W	Silver	3000K	DALI	35°	PDF IM IES LDT SIZE
23.007.24016	128 mm	8W	White	4000K	DALI	35°	PDF IM IES LDT SIZE
23.007.23015	128 mm	8W	White	3000K	DALI	35°	PDF IM IES LDT SIZE
23.007.14014	128 mm	8W	Black	4000K	DALI	35°	PDF IM IES LDT SIZE
23.007.13013	128 mm	8W	Black	3000K	DALI	35°	PDF IM IES LDT SIZE
23.007.34012	128 mm	8W	Silver	4000K	1-10V	35°	PDF IM IES LDT SIZE
23.007.33011	128 mm	8W	Silver	3000K	1-10V	35°	PDF IM IES LDT SIZE
23.007.24010	128 mm	8W	White	4000K	1-10V	35°	PDF IM IES LDT SIZE
23.007.23009	128 mm	8W	White	3000K	1-10V	35°	PDF IM IES LDT SIZE
23.007.14008	128 mm	8W	Black	4000K	1-10V	35°	PDF IM IES LDT SIZE
23.007.13007	128 mm	8W	Black	3000K	1-10V	35°	PDF IM IES LDT SIZE
23.007.34006	128 mm	8W	Silver	4000K	None	35°	PDF IM IES LDT SIZE
23.007.33005	128 mm	8W	Silver	3000K	None	35°	PDF IM IES LDT SIZE
23.007.24004	128 mm	8W	White	4000K	None	35°	PDF IM IES LDT SIZE
23.007.23003	128 mm	8W	White	3000K	None	35°	PDF IM IES LDT SIZE
23.007.14002	128 mm	8W	Black	4000K	None	35°	PDF IM IES LDT SIZE
23.007.13001	128 mm	8W	Black	3000K	None	35°	PDF IM IES LDT SIZE
